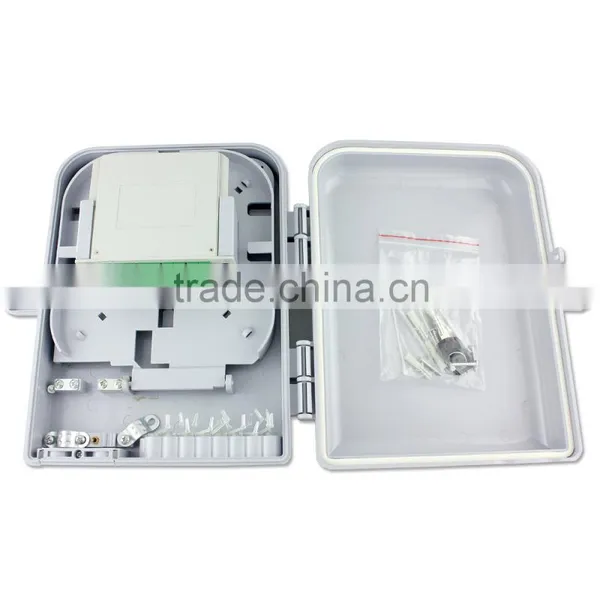

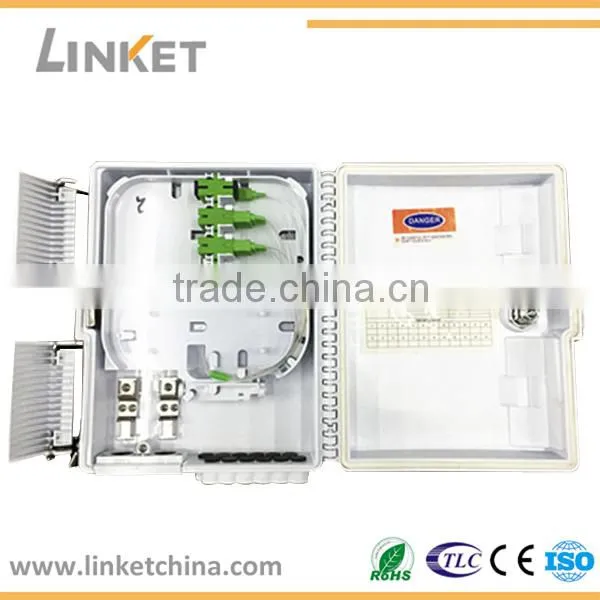

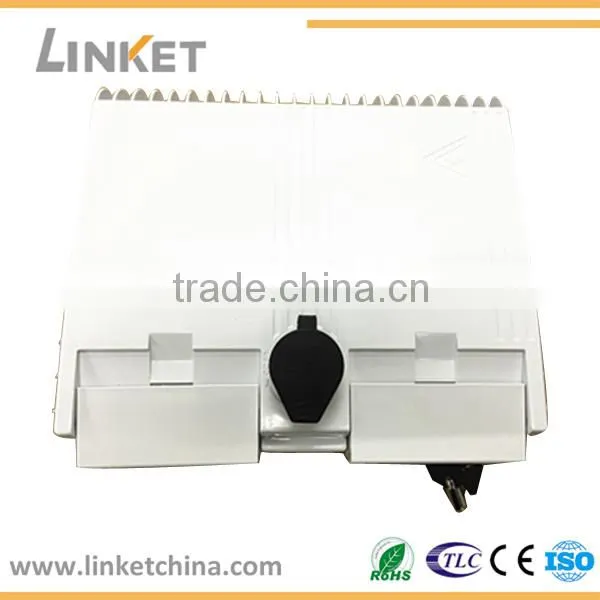

1. Features of Splitter Distribution Box
-Tatal enclosed structure,be in nice shape
-Wet-proof,Water-proof,dust-proof
-Clamping for feeder cable and drop cable,fiber splicing,fixation,storage,distribution...etc all in one
-Cable,pigtails,patch cords are running through own patch without disturbing each other,cassette type SC adapter installation,easy maintenance
-Distrubution panel can be flipped up,feeder cable can be placed in a cap-joint way,easy for maintenance and installation
-Cabinet can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uese
2. Specification of Splitter Distribution Box
| Environmental requirement | Working Temperature:-40°c~+85°c |
| Ralative humidiyu:≤85%(+30°c) | |
| Atmospheric pressure:70Kpa~106Kpa | |
| Main technical dataset | Insertion loss:≤0.2dB |
| UPC return loss:≥50dB | |
| APC return loss:≥60dB | |
| Life of insertion and extraction:>1000times | |
| Thunder-proof technical datasheet |
The grounding decive is isolated with the cabinet,isolation resistance is less than 2x104MΩ/500V(DC);IR≥2X104MΩ/500V(DC)
|
|
The withstand votage between grounding device and cabniet is no less than 3000V(DC)/min,no producture,no flashover;U≥3000V
|
3.Configuration of Splitter Distribution Box
| Model | Description | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | Cable ways | ||
| A*B*C(mm) | SC | LC | PLC | D*E(mm) | |||
| A | Distribution Box | 250*190*39 | 8 | 16 | 16(LC) | 130*82 | Not cup-joint |
| B | Distribution Box | 250*190*39 | 12 | 24 | 16(LC) | 130*82 | Not cup-joint |
| C | Distribution Box | 293*219*84 | 16 | 32 | 32(LC) | 155*82 | Not cup-joint |
4.Different Models
5.Other Products

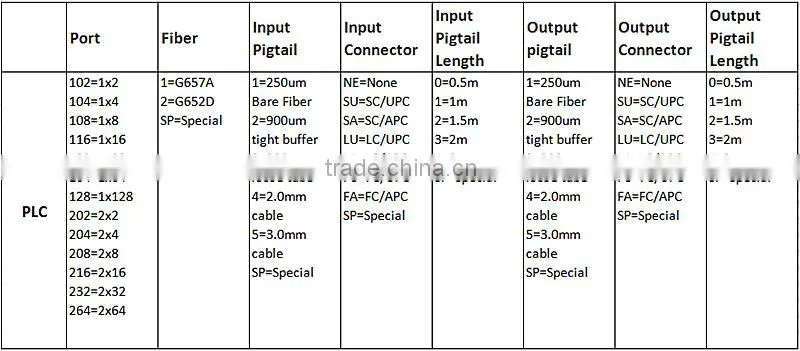

6.Ordering Information
2. Our Advantage- Integrated Total Chain, Direct Factory Price
4. Workshop Overview of Splitter Distribution Box Splitter
