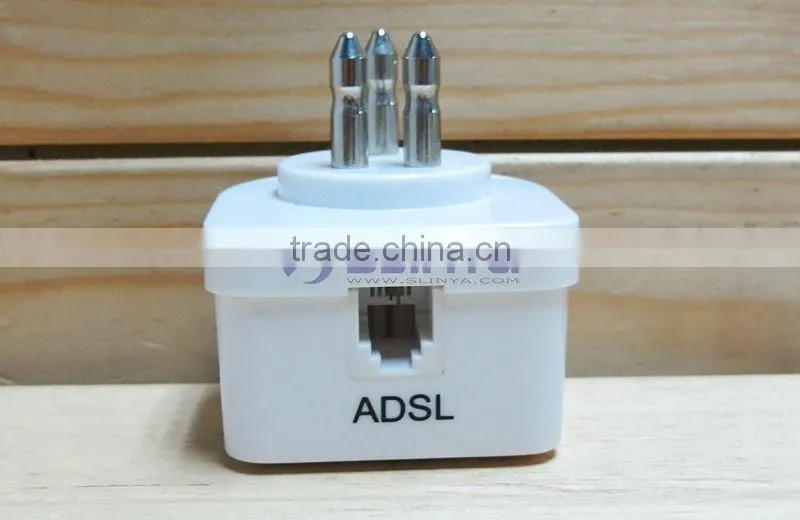

Male to Female with RJ11 Jack 623K socket Italy ADSL Filter Introductions
ADSL splitters and Microfilters enable broadband to be delivered to you on your standard telephone line. It allows you to surf the ADSL Internet, use e-mail and many other ADSL internet services whilst still using your telephone, answer machine, fax or any of other piece of telephony equipment that you have attached to your ADSL splitters, ADSL filters or other VDSL, ISDN splitters, XDSL splitters etc.
1. Return loss reference Impedance 270Ω/(750+150Nf)
2. Inserton Loss @1KHz <1dB
3. Insertion Loss distortion 300Hz-3400Hz, +-1dBreL 1KHz value
4. Return Loss 300Hz-3400Hz >15dB, 3400Hz-10KHz >8dB.
5. Group Delay Distortion @300-3400KHz<50us
6. DC Resistance <50Ω DC Current Range 18mA ~120MA
7. Insulation reslstance >10MΩ
8. High frequency insertion loss:
30KHz-100KHz>29dB,
100KHz-300KHz >25dB,
300KHz-1104KHz >40dB
9. Ringing Frequency Voltage drop<2.0Vrms, Impedance 25Hz >40kΩ
10. Used for Italy

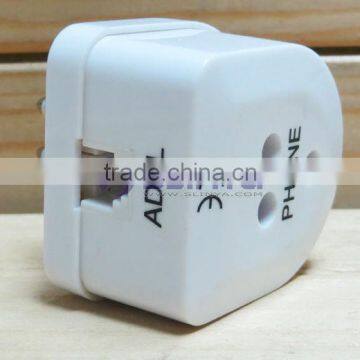

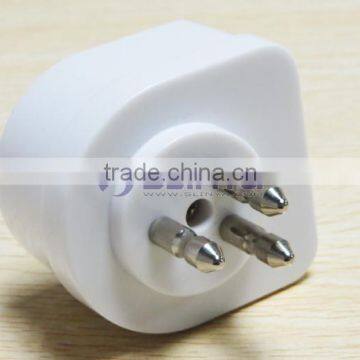

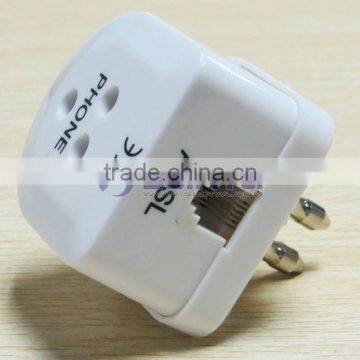

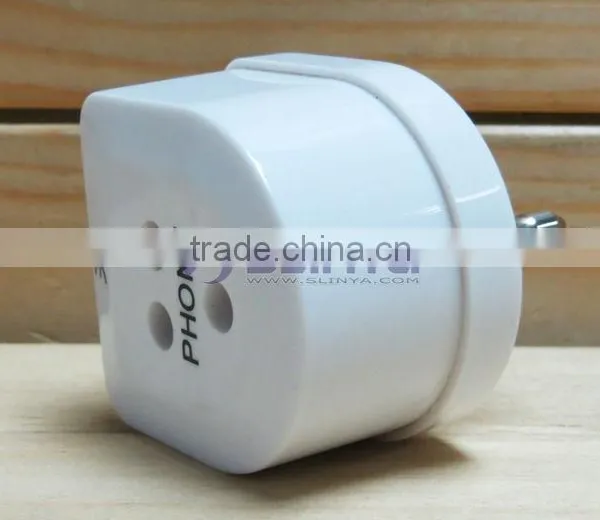

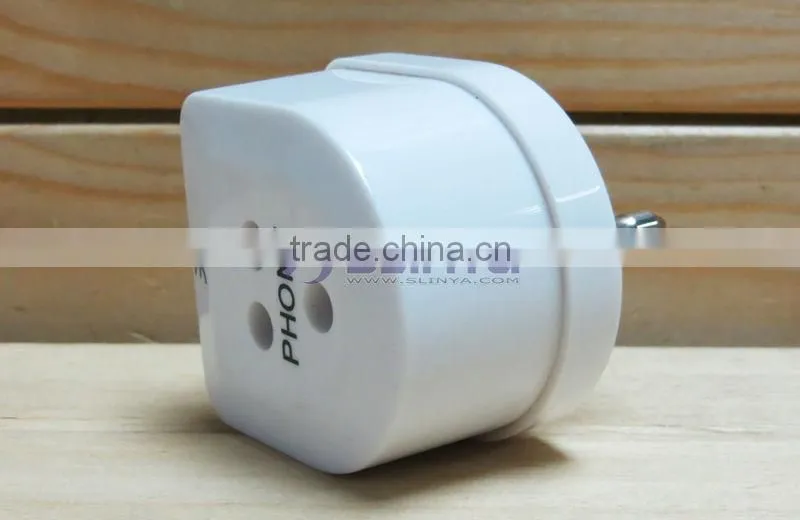

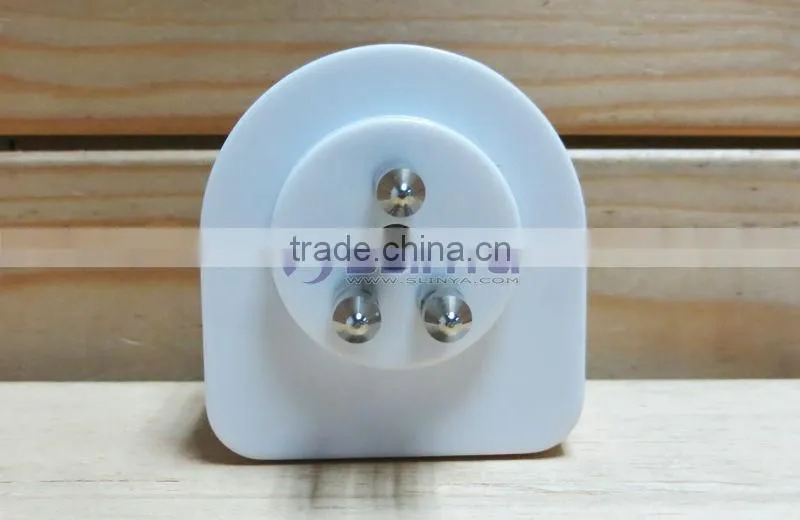

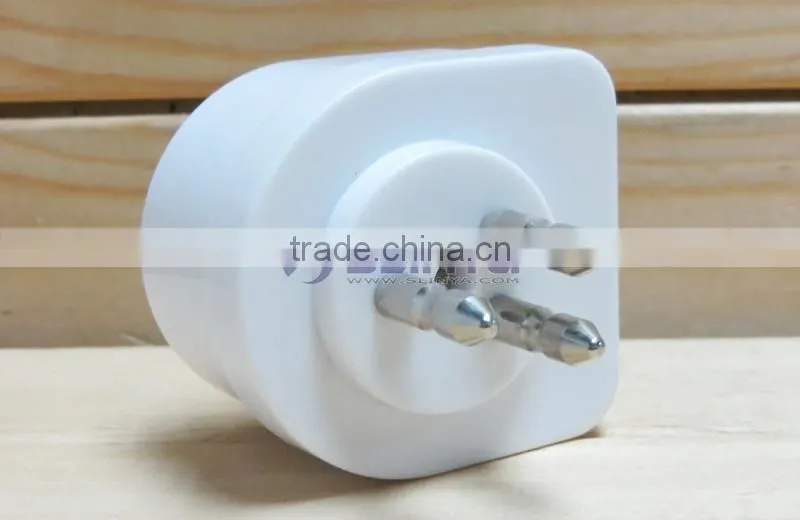

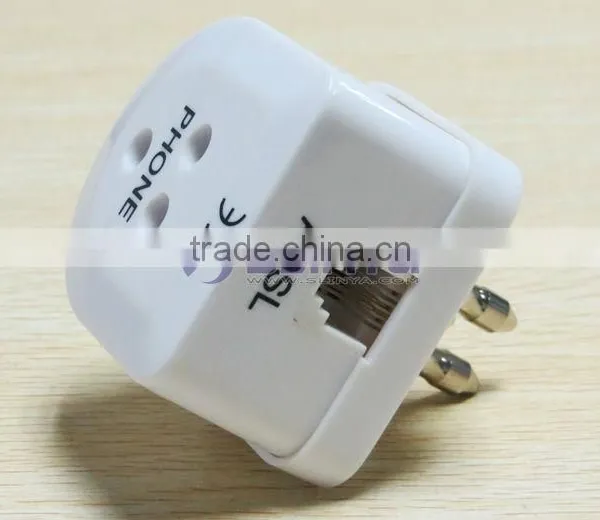

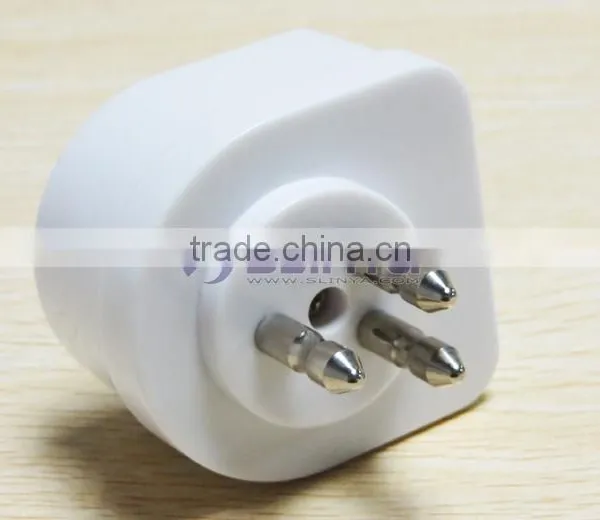

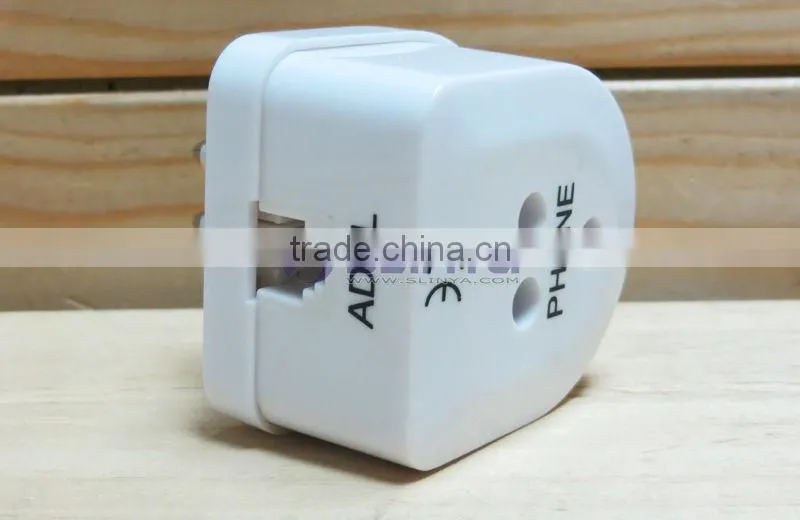

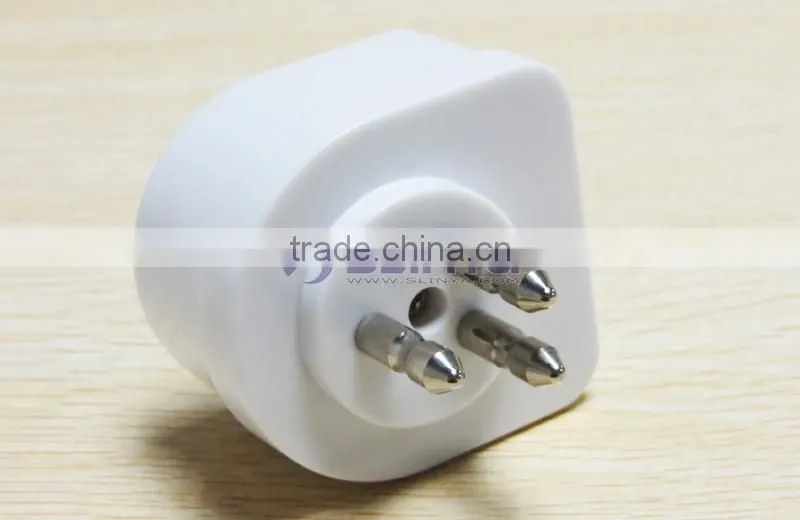

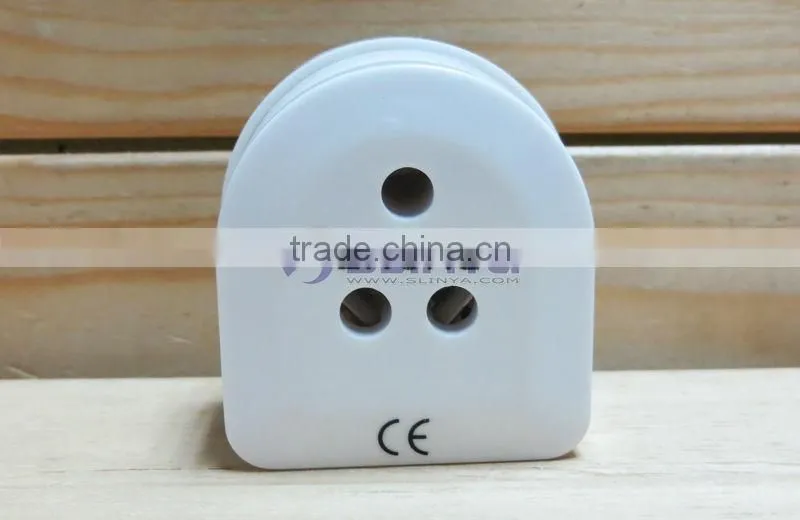

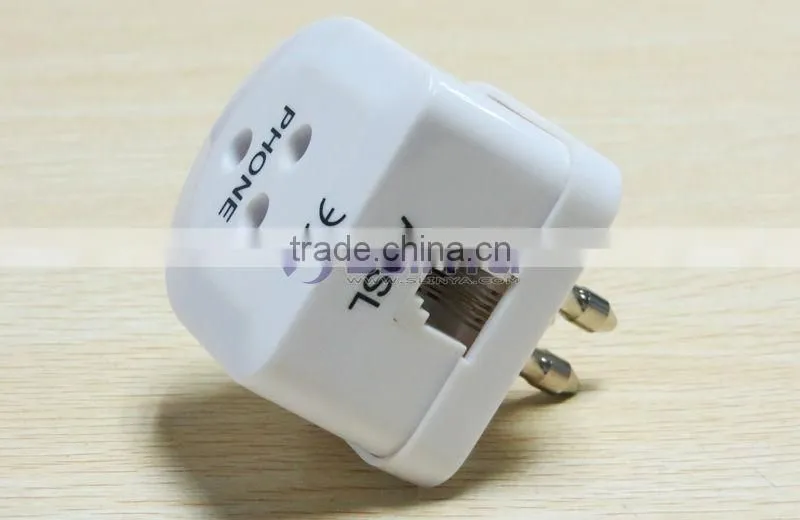

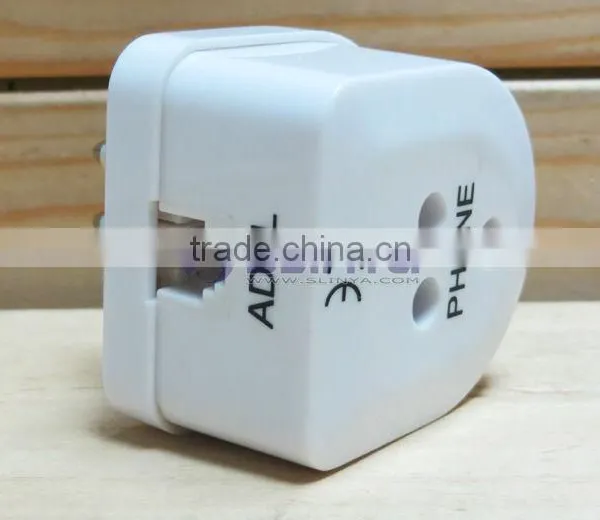

Photos
