Home > Packaging & Printing > Packing Machinery > Filling Machine > Automatic Washing Powder Pouch Packaging MachineYF-180

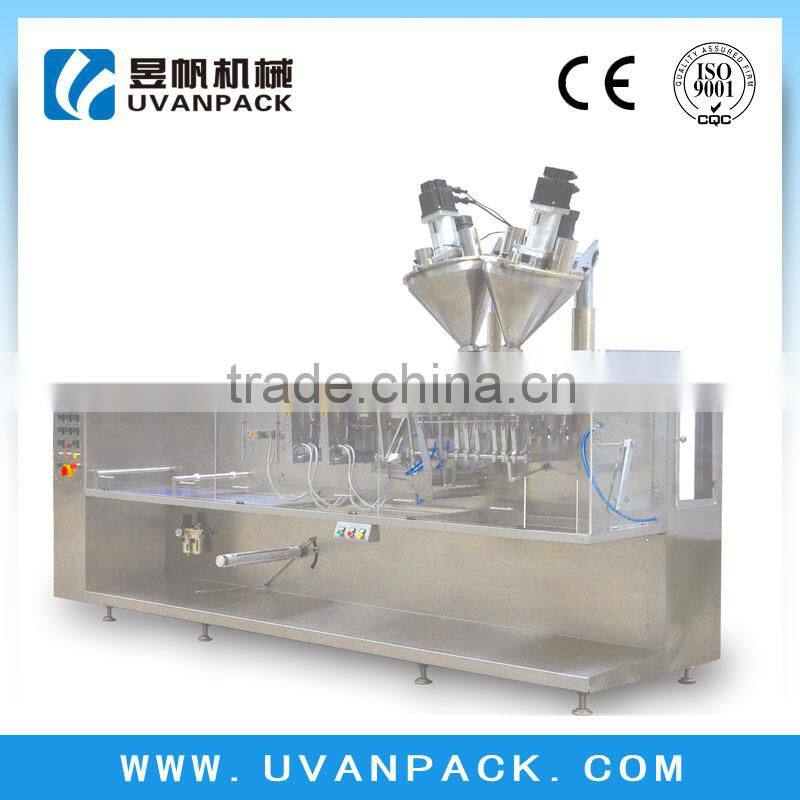

Automatic Washing Powder Pouch Packaging MachineYF-180

Automatic Washing Powder Pouch Packaging MachineYF-180 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical
Packaging Type:
Bags, Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical
Packaging Type Bags, Pouch
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 4.5KW
Place of Origin Shanghai, China
Brand Name UVANPACK
Model Number YF-180
Dimension(L*W*H) 3500*970*1450mm
Weight 1400kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.3&4 side seal machine
2. Excellent Proformance
3. link pouch ,and single pouch

Full automatic horizontal bag packing machine

Type: YF-180



Company Information

      Shanghai Uvanpack Machinery Co., Ltd. is an enterprise that specializes in the design and sales of horizontal automatic packaging machines and fully automatic filling machines.

Our company adopts European advanced packaging design concept and technology based on the market demands of diversified product packaging and varied packaging range.





Product Description



     The machine absorbed the Western Europe’s advanced technology, used the making flow of bag-making at first and packing then, chose the filling way of the servo motor material-discharging controlled volume pump, piston cylinder and graduate. It’s measurement is sealing aluminum-film bag, the packed product’s appearance is artistic, has high strength and low damaged rate.

The machine conducts bi-bag’s little scale controlled volume packing, may largely extend the packing speed, double increase. The equipment is widely used in the bag-packing of powder, liquid and the particle for the industry such as foodstuff, medicine, pesticide and daily chemical industry.



Technical Parameter



ModelPouch Size (Min)Pouch Size (Max)CapacityVolumeFillerPouch TypeOptional
YF-18060mm×80mm180mm×225mm40-80ppm60ml2Flat PouchZipper, Hanging hole
Power:4.5kwPower supply: 80V, 3 phase, 50HzAir pressure: .6Mpa
Air Consume:200NL/minFilm rool Diameter:Max.600mmFilm inner core: 76mm
weight:1400kgDimension: 3500mm(L)×970mm(W)×1450(H)mm







Product Display

Automatic Washing Powder Pouch Packaging MachineYF-180

Automatic Washing Powder Pouch Packaging MachineYF-180







 Manufacture Procedure







Packaging & Shipping

 Packaging: wooden case suits for exporting

 Shipping terms: FOB SHANGHAI
