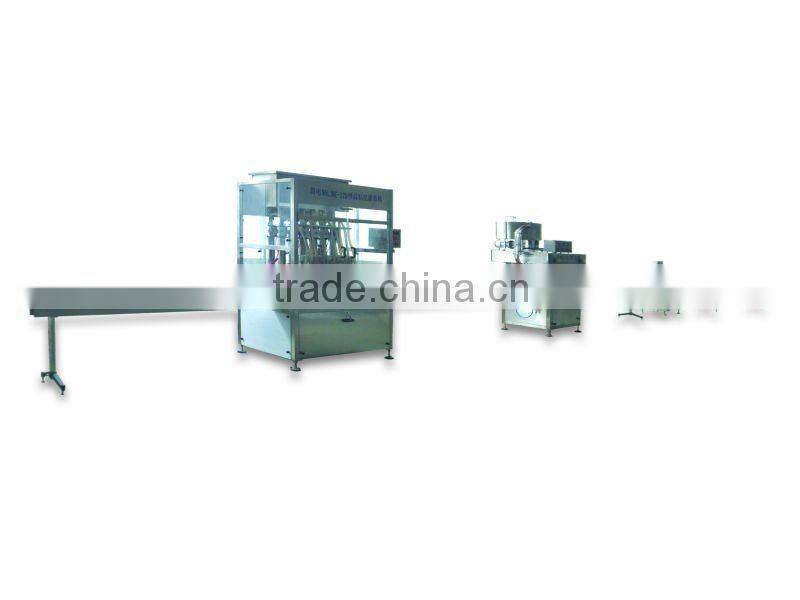

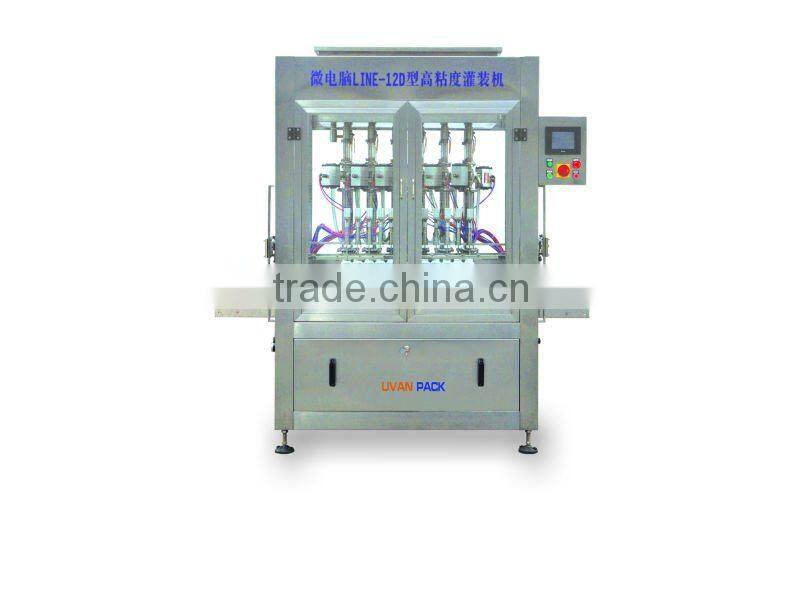

Aerosol Filling Machine LINE-12D

Specifications

I. Company Profile

Shanghai Uvanpack Machinery Co., Ltd. is an enterprise that specializes in the design and sales of horizontal automatic packaging machines and fully automatic filling machines.

Our company adopts European advanced packaging design concept and technology based on the market demands of diversified product packaging and varied packaging range.

II. Features of machine

The PLC programmable control is used in the machine ,the 6” touching screen person-machine interface system is equipped in the machine ,utilizing atmospheric fixed flow parameter and controlling the filling time to realize the filling of different measurement .The descending unit can prevent from the overflow of the foam .The equipment’s structure is simple ,can effectively fill the round ,flat and square bottles ranging from 1000ml to 5000ml. Convenient adjustment and needn’t change the parts.

III. Specification

PLC                          MITSUBISHI   (Japan)

Touch Screen         EASYVIEW   (Taiwan)

Valve                      FESTO   ( Germany )

Filling Valve           Yuken (Japan)

Invertor                  Panasonic (Japan)

Photocell               Omron    (Japan)

Switch                    Schneider   (France)

Machine                   FrameSS 304

Tank Materia             SS316

Nozzle                        PTFE

Pipe                           PTFE

IV. Manufacture Procedu
