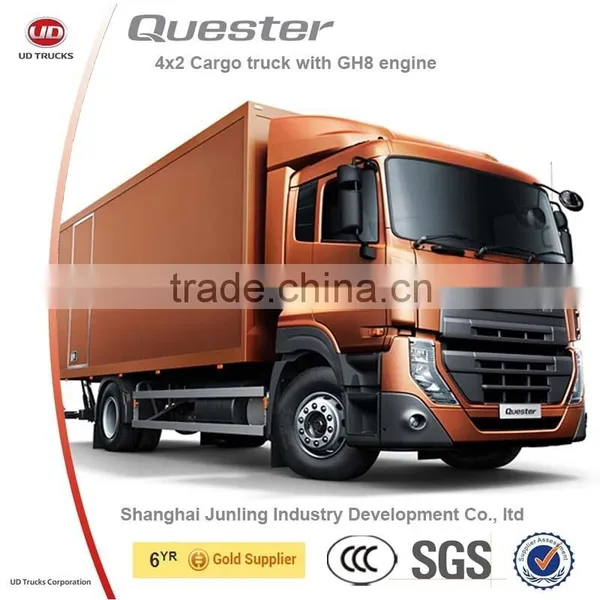

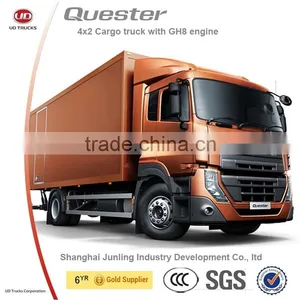

Nissan UD quester 4x2 heavy cargo truck sale (Volvo group)

Name: Nissan UD quester 4x2 heavy cargo truck sale (Volvo group)
Brand: UD
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Main port in China
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Capacity (Load):	21 - 30t	Drive Wheel:	4x2
Horsepower:	351 - 450hp	Transmission Type:	Manual	Emission Standard:	Euro 4
Fuel Type:	Diesel	Size:	10304x2499x3200
Gross Vehicle Weight:	15000	Place of Origin:	Zhejiang, China	Brand Name:	UD
Model Number:	quester

Packaging Details

Standard (roll to roll shipping, special container, bulk cargo)

Product Description

UD TRUCK

1.Cargo truck Specification

Basic information	Product name	Cargo rigid
	Type	4×2
	Length x Width x Height(mm)	10304×2499×3228
	Wheelbase(mm)	4600+1370
	Front overhang/Rear overhang(mm)	1460/2874
	Top speed(km/h)	117
	GVW(kg)	25000
	Rated load(kg)	-
	Kerb Weight(kg)	9410
	Approach/Departure angle(°)	15/9
Cab	Type	Cab-over-engine, Std. roof , single bunk
Cab	Passengers(person)	3
Engine	Model	GH1A
	Manufacturer	UD Trucks Corporation
	Displacement(L)	10.837
	Emission	CN4
	Type	Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
	Power rating(kw)	280
	Max net power(kw)	279
	Injection technology	Electric unit injector with max injection pressure 200MPa
	After treatment	SCR
Clutch	Type	Single disc, dry, pull-type diaphragm clutch
Clutch	Disc diameter(mm)	420
Gearbox	Model	F9R20A
Gearbox	Type	Mechanical, manual, 12 forward gears + 2 reverse gears
Steering gearbox	Type	Recirculating ball type hydraulic power-assisted steering system
Axle	Load capacity(kg)	Front: 8000/ Rear:26000(tandem)
Axle	Rear axle ratio	4.111
Frame	Type	One piece by roll forming
Frame	Max section area(mm)	300×90×(8+5)
Suspension	Type	Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
Suspension	Leaf Qty.	3/11
Tyre	Specification(either one)	12.00R20-14PR
		315/80R22.5-16PR
		295/80R22.5-16PR

2. Cargo truck Introduction

Cargo truck Dashboard with delicate layout

Well laid out dashboard improves driving safety substantially with controllers and switches in arm reach; high luminance and high contrast display of 4.5 inch size provides with easily readable information

Cargo truck Multi view angle mirror

Considerately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather.

Cargo truck Front/Rear stabilizer

EU desig concept for higher driving safty

Cargo truck Axle&Hub reduction axle&Single reduction axle

High quality VOLVO designed axle with option of hub reduction for severe duty cycle

Cargo truck chassis Large cab tilting angle

Maximum tilting angle is 58 degrees and engine mounting & dismounting can be done when cab is tilted by 45 degree

Front lid designed for easy maintenance

Clutch fluid reservoir,wind shield washer tank, air conditioner filter behind front lid for easy daily check

Company Profile

Shanghai Junling Industry Development Co., Ltd.

Shanghai Junling Industry Development Co., Ltd. is a professional company on trading all kinds of truck and modified vehicle. Good reputation, high-quality products and good service make us become a professional supplier of heavy duty truck and related products.

We are one sale department set by CNHTC(China National Heavy Duty Truck Group Co., Ltd. ) in Shanghai, which is the No1 brand in China heavy duty truck industry. Company deals all chassis and modified products made by CNHTC. There are dump trucks, concrete mixer trucks, tractor trucks, special trucks and all kinds of modified vehicles, etc.. The relationship as the sale department of CNHTC enables us to give customers more benefits. We have whole vehicle and spare part engineer who have working experience for many years in CNHTC, and have profound either theory or practice understanding on whole vehicle and spare parts. And they can sincerely supply professional service for yourself only. International trade salesmen are all trained and worked for many years, who have abundant knowledge of trucks and circumspect service attitude for customers. We all try our best to supply the professional, detailed, personalized products and service.

Here we would like to thank Sweden truck manufacturer Volvo company's confidence in us, make us become a supplier of Volvo chassis and modified vehicle in east China, will deal all kinds of modified vehicles of Volvo and Renault brand.

We are exclusive export agent of Suzhou City JieDa Fire Vehicle Equipment Co., Ltd., responsible for all matters relating to their product's export. Suzhou JieDa Fire Vehicle Equipment Co., Ltd. is China's one of the largest manufacturers of fire vehicles, which produces and modifies all kinds of fire vehicles to meet high-end demand and technical parameters. The products include hydraulic platform fire engine, dry-powder fire-extinguishing vehicle, combined dry-power and foam fire-fighting truck, air supply fire engines, emergency rescue fire vehicle, lifting high jet fire trucks, airport fire engines, fire extinguishing foam tanker, fire extinguishing water tanker, command and communication fire vehicle and so on.

Believing we can supply you high quality truck products in your need.
