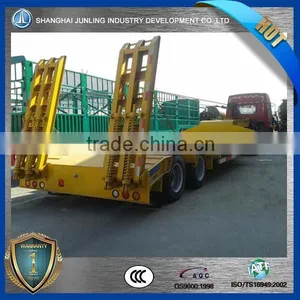

10ton ~ 60ton 3 FUWA Axle Truck Trailer With Head Truck and Trailer Dimension

Name: 10ton ~ 60ton 3 FUWA Axle Truck Trailer With Head Truck and Trailer Dimension
Brand: SINOTRUK
SKU: 103521343

US$ 15,000 - 25,000 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, CCC ISO9001:2000

Shanghai Junling Industry Development Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Main port in China

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, CCC ISO9001:2000

Size 12500mmx2500mmx1650mm

OEM No. NONE

Max Payload 10000KG ~ 60000KG

Place of Origin China

Brand Name SINOTRUK

Model Number JL01

Product Description

1. truck trailer Specification

Specifications
Tare Weight	About 8.5T-13T
Dimension	12500mm2500mm-3500mm1650mm (Size can be choose freely)
Loading Capacity	40T-100T
Axle	13T/16T, FUWA/BPW
Rim	8.5-20 13PCS or other sizes
Tire	12R20 13 PCS or other sizes ,Triangle/Double Coin
Suspension	Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)
Spring leaf	90(W)mm13(Thickness)mm10 Layer (especial for exporting market )
King pin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm-25mm channel steel ( Material is Q235steel ).
Bottom Platform	5mm thickness diamond steel plate or can be optional
Ladder	Manual type or Hydraulic type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
