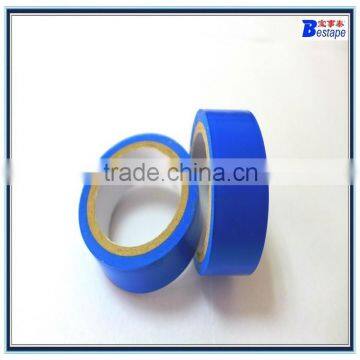

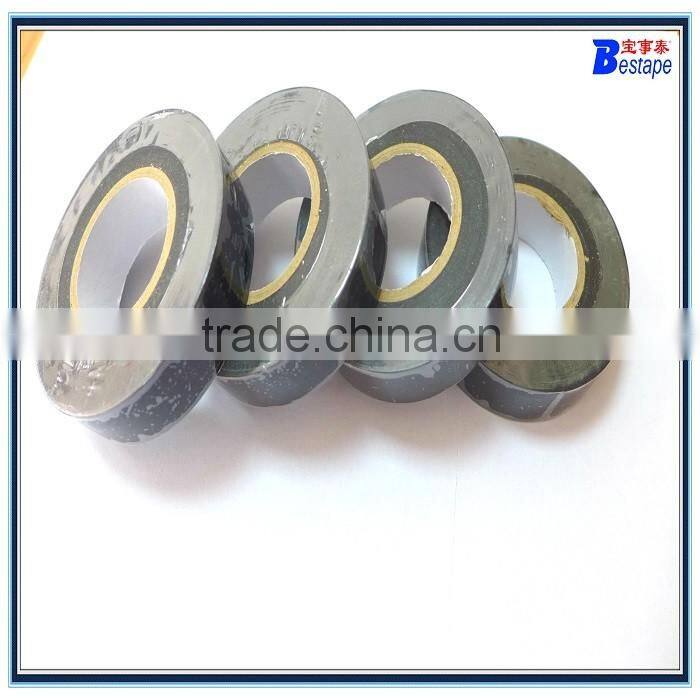

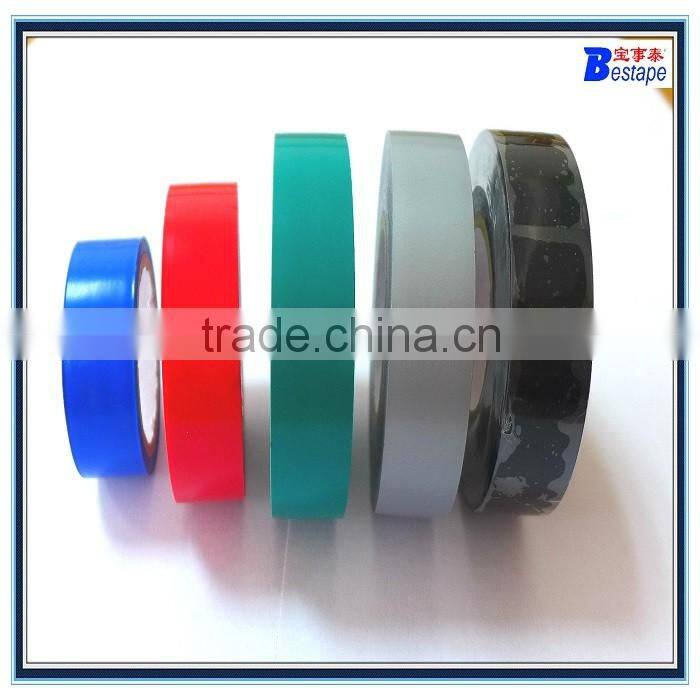

Factory Supply Printed Vinyl IsolationTape
Description:

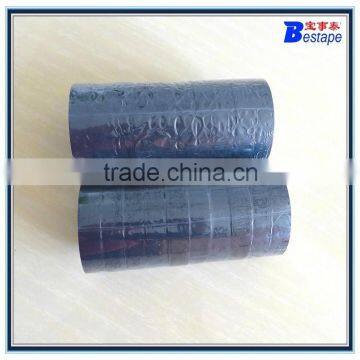

The printed electrical tape is a thin premium grade plasticized polyvinyl chloride film pringted and coated with an aggressive rubber resin adhesive .It has good flexibility.It is highly conformable and unaffected by most chemicals and moisture. The most popular coloue is yellow film printed with green streaks.
Application:
It is specifically designed for special wire insulation and other electrical insulating application. It is better to wrap wires with a half-lap , the last layer should be no tension to prevent flagging.
Technical Data:
Properties |
unit |
Typical Data |
Test Method |
|||||
WA130FP |
WA150FP |
WA130P |
WA150P |
WB130P |
WB150P |
|||
Total Thickness |
mm |
0.130 |
0.150 |
0.130 |
0.150 |
0.130 |
0.150 |
ASTM D1000 |
Width |
mm |
19.0 |
19.0 |
19.0 |
19.0 |
19.0 |
19.0 |
ASTM D1000 |
Tensile Strength |
N/cm |
22 |
25 |
22 |
25 |
20 |
22 |
ASTM D1000 |
Elongation |
% |
200 |
200 |
200 |
200 |
180 |
180 |
ASTM D1000 |
|
Adhesion Strength ·to steel |
N/cm |
1.8 |
1.8 |
1.8 |
1.8 |
1.5 |
1.5 |
ASTM D1000 |
Flame resistance |
S |
FR |
FR |
NO |
NO |
NO |
NO |
UL510 |
Dielectric breakdown |
V |
600 |
600 |
600 |
600 |
600 |
600 |
UL510 |
Temperature Resistance |
°C |
80 |
80 |
80 |
80 |
80 |
80 |
ASTM D1000 |
Other properties:

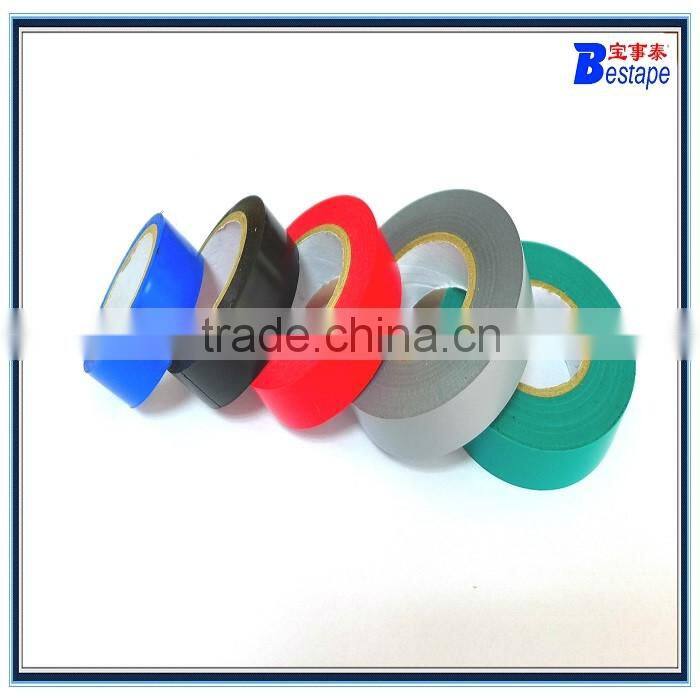

·Color : Black and other
·Surface Texture : Matt
·Shelf Life: 12 months when stored in original carton at 23℃×65%R.H.
Availability:

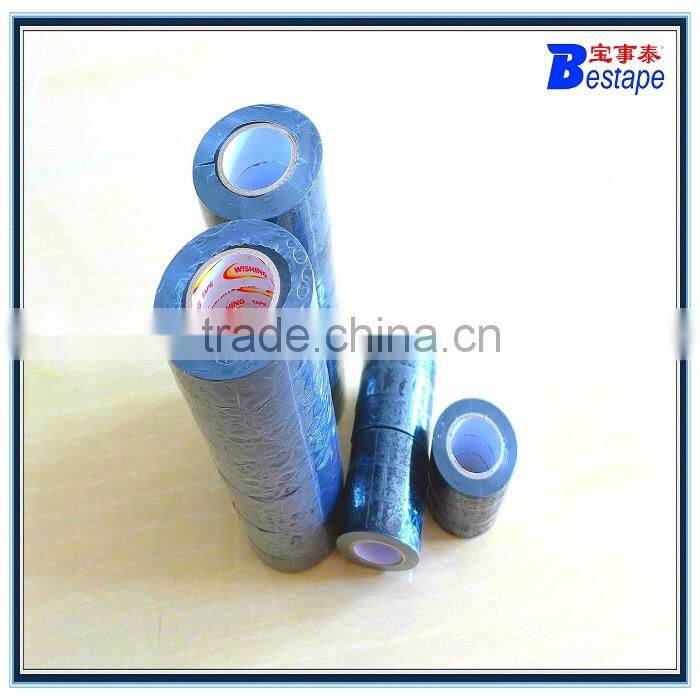

·Standard length: 10yd,20yd, 20m,30m
·Standard inner diameter of core: 32mm, 38mm, 42mm,76mm
·Standard width: 19mm, 25mm, 50mm, 1250mm

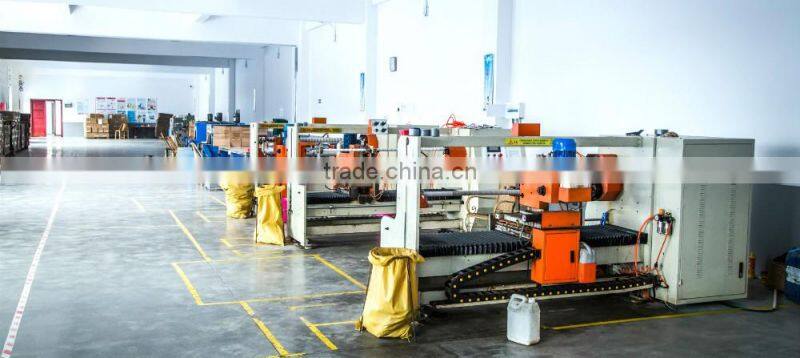

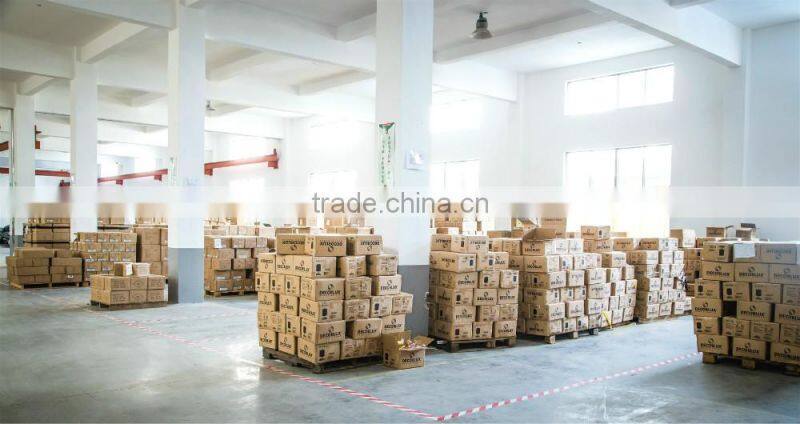

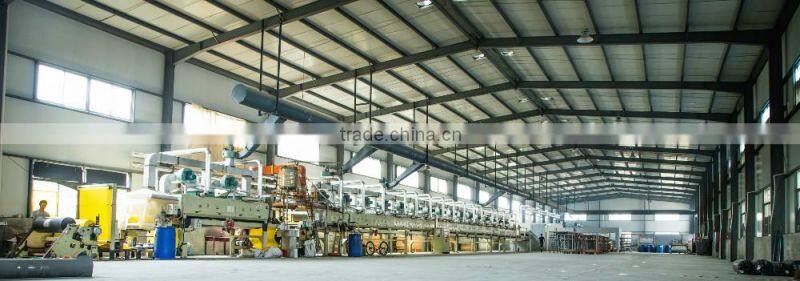

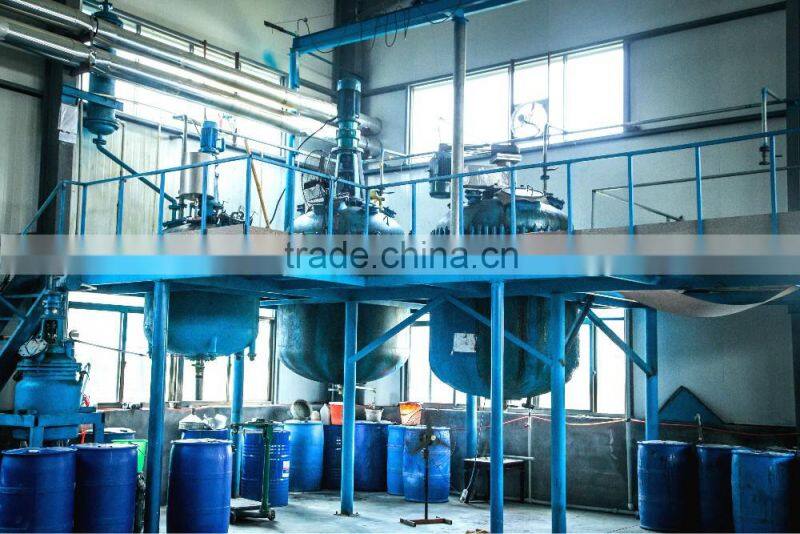

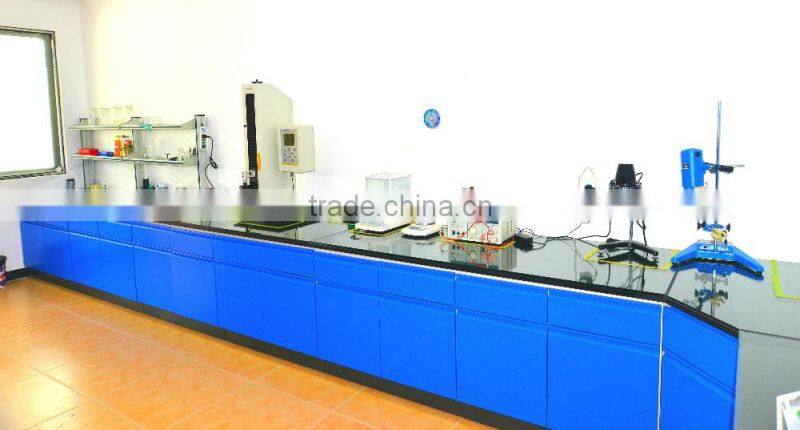

Factory Show:
Our service:
1.Your inquiry related to our products & price will be replied within 24 hours
2.Well-trained& experienced staff are willing to answer all your inquiries professionally in english of course.
3. OEM is highly welcomed. we have strong R&D team here to make your required products.
4. Good after-sale service offered, pls feel free to contact us.
