Lab Dispersion Disc Mill

Lab Dispersion Disc Mill thumbnail-1
Lab Dispersion Disc Mill photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Other, dispersing disc
Product Type:
Other, industrial liquid mixer
Contact Supplier Request Quote Chat Now
Chile (Shanghai) Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Other, dispersing disc
Product Type Other, industrial liquid mixer
Application Other, solid-liquid, liquid-liquid
Additional Capabilities Other, dispersing, mixing, dissolving
Place of Origin Shanghai, China
Brand Name CHILE
Model Number CLYFS
Max. Loading Capacity 10000L
Voltage 380V/50HZ(can be customized)
Power(W) accordingly
Dimension(L*W*H) accordingly
Certification CE, ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Lab dispersion disc mill

Specifications

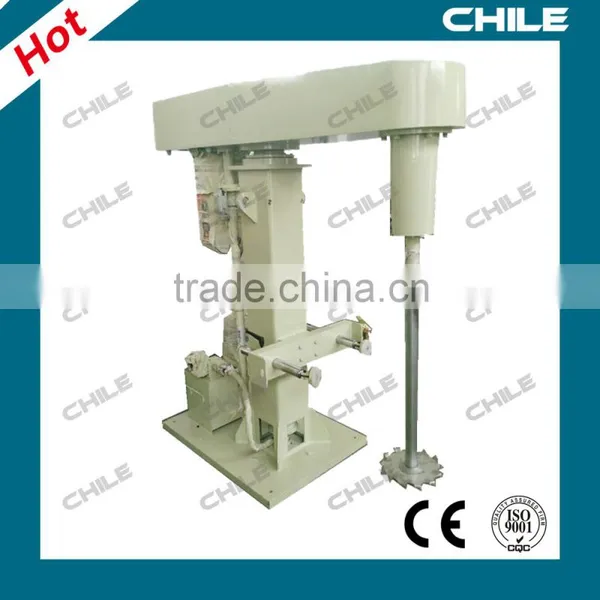

Industrial liquid mixer/High Speed Disperser of CHILE (Hydraulic Lifting)



Main Features:

  • Hydraulic system, stable running, can lift up and down frequently.
  • Specially made hydraulic cylinder can realize oil-leakage free.
  • Non-explosion proof/ explosion proof configuration. Explosion proof grade can be customized.
  • Installation type: ground type/ platform type.
  • Cover: cover lifting with the headstock
  • With OMRON/EMERSON inverter.

Technical Parameters:



  Model

Capacity
(L)

Motor Power
(kw)

Speed
(rpm)

Disc Dia
(mm)

Lifting
(mm)

Hydraulic power
(kw)

weight
(kg)

CLYFS-1.5

≤50

1.5

0-1450

150

600

0.55

400

CLYFS - 4

≤200

4

0-1450

200

800

0.55

600

CLYFS-7.5

≤400

7.5

0-1450

230

900

0.55

800

CLYFS-11

≤500

11

0-1450

250

900

0.55

1000

CLYFS-15

≤700

15

0-1450

280

900

0.55

1100

CLYFS-18.5

≤800

18.5

0-1450

300

1100

0.75

1300

CLYFS-22

≤1000

22

0-1450

350

1100

0.75

1400

CLYFS-30

≤1500

30

0-1450

400

1100

0.75

1500

CLYFS-37

≤2000

37

0-1450

400

1600

1.1

1600

CLYFS-45

≤2500

45

0-1450

450

1600

1.1

1900

CLYFS-55

≤3000

55

0-1450

500

1600

1.1

2100

CLYFS-75

≤4000

75

0-950

550

1800

2.2

2300

CLYFS-90

≤6000

90

0-950

600

1800

2.2

2600

CLYFS-110

≤8000

110

0-950

700

2100

3

3100

CLYFS-132

≤10000

132

0-950

800

2300

3

3600



Remarks:

*The above listed Max. processing capacity is calculated as per water as medium. The model  selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.

*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.

*If any changes of the data and picture,no further notice is provided.Correct parameter is based on the real object provided.

*The sheet is not including all the products.To know more information,Pls feel free to contact our sales engineers.
