Basket Mill Hydraulic Lifting bead grinding Mill for Industrial production
- 20 Set / Sets per Month
- Shanghai Port
- T/T
Product Details
| Condition: | New | Type: | Other, basket mill | Product Type: | Other, coating, printing ink, dyestuff, color paste, cosmetic, pesticide |
| Place of Origin: | Shanghai, China | Brand Name: | CHILE | Model Number: | CLSYM Series |
| Voltage: | 380V, 50/60Hz (Can be customized) | Power(W): | 4-75kw | Dimension(L*W*H): | Depends |
| Weight: | Depends | Certification: | CE, ISO | Warranty: | 1 year waranty, life long maintanence |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

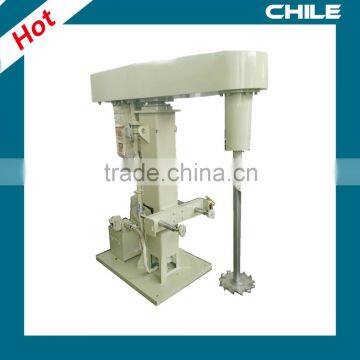

Basket Mill Hydraulic Lifting bead grinding Mill for Industrial
High milling, grinding efficiency
low materials waste
easy to clean
Applicable for dispersing and grinding material in industrial production.
Hydraulic lifting stand with anchoring bolt to ensure steady operation. Cover is optional to avoid material splash or solvent volatilization.
Capacity range: 10-5000L
Power supply: 380V, 50/60HZ (Can be customized)
Speed Adjustment: Frequency Converter Control
Grinding Medium: Pure Zirconium Beads
Height Adjustment: Hydraulic Lifting
Technical Parameter:
Model | Power | Capacity | Speed | Basket | Beads | Lift | Weight |
CLSYM-4 | 4 | 10-100 | 0-2880 | 3.5 | 1.8-2.4 | 800 | 290 |
CLSYM-7.5 | 7.5 | 40-180 | 0-1440 | 4.8 | 1.8-2.4 | 900 | 330 |
CLSYM-11 | 11 | 45-250 | 0-1440 | 6.5 | 1.8-2.4 | 900 | 390 |
CLSYM-15 | 15 | 50-350 | 0-1440 | 9 | 1.8-2.4 | 900 | 460 |
CLSYM-18.5 | 18.5 | 100-500 | 0-1440 | 17 | 1.8-2.4 | 1100 | 820 |
CLSYM-22 | 22 | 150-800 | 0-1440 | 20 | 1.8-2.4 | 1100 | 960 |
CLSYM-30 | 30 | 200-1200 | 0-1440 | 32 | 1.8-2.4 | 1100 | 1180 |
CLSYM-37 | 37 | 500-1500 | 0-1440 | 39 | 1.8-2.4 | 1600 | 1450 |
CLSYM-45 | 45 | 800-2000 | 0-1440 | 52 | 1.8-2.4 | 1600 | 1850 |
CLSYM-55 | 55 | 1000-2500 | 0-1440 | 65 | 1.8-2.4 | 1600 | 2300 |
CLSYM-75 | 75 | 1200-3000 | 0-1440 | 85 | 1.8-2.4 | 1800 | 2600 |
Remarks:
The above listed Max. processing capacity is calculated as per water as medium.
The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
Not all products are listed. For more, please contact with our sales engineer.
