Home > Products > Basket Mill > Grinding basket mill Paint making machine (Pneumatic Lifting)

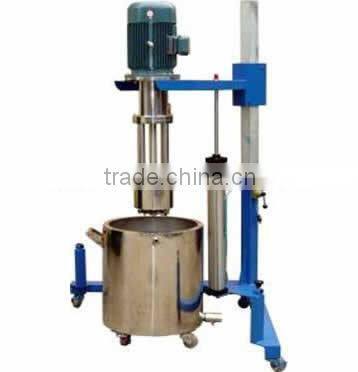

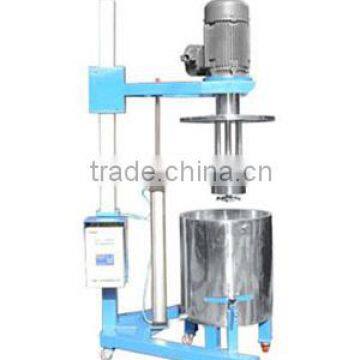

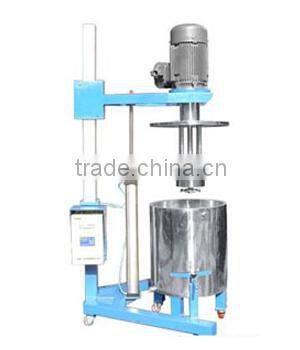

Grinding basket mill Paint making machine (Pneumatic Lifting)
- 30 Set / Sets per Month
- Shanghai Port
- T/T
Product Details
Condition: | New | Type: | Sand Mill | Product Type: | Other, grinding basket mill |
Place of Origin: | Shanghai, China | Brand Name: | CHILE | Model Number: | CLSYM Series |
Voltage: | 380V, 50/60HZ, Can be customized | Power(W): | can be customized | Dimension(L*W*H): | Customized |
Weight: | Depends | Certification: | CE, ISO | Warranty: | 1 year waranty, life long maintanence |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Grinding basket mill Paint making machine (Pneumatic Lifting) :
Specifications
Excellent milling/grinding effect
Unique configuration
Grinding basket mill Paint making machine (Pneumatic Lifting) :
Grinding basket mill Paint making machine (Pneumatic Lifting) :
1. Reference Parameter
Model | Capacity | Main Motor(kw) | Speed | Basket Volume(L) | Lift(mm) | Beads (mm) |
CLSYM-4 | 10-100 | 4 | 0-2880 | 3.5 | 800 | 2.0-2.4 |
CLSYM-7.5 | 40-180 | 7.5 | 0-1440 | 4.8 | 900 | 2.0-2.4 |
CLSYM-11 | 45-250 | 11 | 0-1440 | 6.5 | 900 | 2.0-2.4 |
CLSYM-15 | 50-350 | 15 | 0-1440 | 9 | 1000 | 2.0-2.4 |
2. Main features
- Liquid circulation system is generated between the material feeding rotor and toothed dispersing disc and grinding beads with high hardness driven by the high-speed rotating rod in the basket result in outstanding milling effect.
- Good milling fineness, high grinding efficiency, even particle distribution and the whole milling process is finished under closed condition.
- Without dead corner, little residue, easy to clean and easy to change color or other products.
- With cover matching with its container to avoid dust flying, materials splashing and volatilization of the solvent products during dispersing. Easy operation, safe and convenient. The cover is mirror polished, easy to clean and nice appearance.
Remarks:
The above listed Max. processing capacity is calculated as per water as medium.
The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
The above data and picture is subject to change without notice. The accurate parameter should be subject to the object.
Not all products are listed. For more, please contact with our sales engineer.
Should you have any questions, feel free to contact with CHILE Company,
our salesmen and techinican will reply you as soon as possible.
