ultrasonic plastic welding equipment
- 800 Case / Cases per Month
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | JYD | |
| Model Number | JYD-2600LCD | Voltage | 220V | |
| Power | 500-2500W | Frequency | 40Khz | |
| Welding Area | customize | Usage | welding fabric, cloth,pp bag |
Product Description
Ultrasonic Welding Machine Introduction
transmitted ultrasonic energy through welding parts to welding area,
local high temperature will happened due to high acoustic resistance between two welding interface places.
Also, no enough time spreading out heating energy timely because of poor plastic thermal conductivity,heating energy
gathered in welding area since could not spreading out timely, the two plastic contact areas will weld rapidly, coupled
with a certain pressure, it makes fusion to one unite. When ultrasonic stop function, and keep the pressure sustain to
make its solidification molding, finally forming a strong molecular chain, which achieve the purpose of welding.And the
welding strength can close to raw material body strength.
Ultrasonic welding guns are used to weld thermoplastic, where areas of welding are hard to reach the parts are too bigger to weld.
• Pistol type & straight staple type guns available
• Easy grip guns available with less diameter
• High quality connectors used to lessen loose connections
• Available in two frequencies :
• 20khz & 30khz. & 35khz & 40khz
Specification
| ultrasonic generator | resonant frequency: 40Khz capacitance: 5500-6500pF output power : 300W -500W(customize) Max amplitude: 2μm |
| booster transducer | resonant frequency: 39.50-40.10Khz capacitance: 5500-6500pF output power : 300W -500W(customize) Max amplitude: 2μm connected screw: M8 Ceramic plate diameter:30mm |

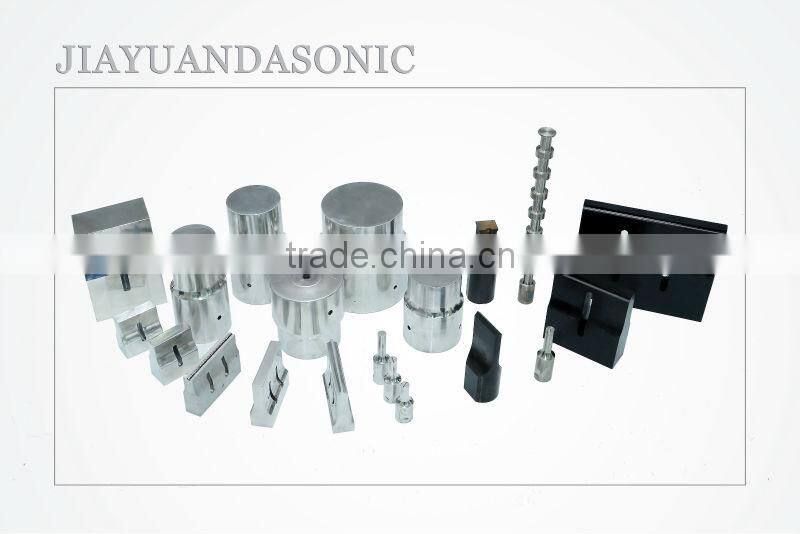

horn
| material: titanium |
