Home > Computer Products > Other Computer Products > Desktop USB 3.1 Type C Controller Card PCIE x4 to Daul USB3.1 Type C 10Gbps Expansion Card
Desktop USB 3.1 Type C Controller Card PCIE x4 to Daul USB3.1 Type C 10Gbps Expansion Card
US$ 16.9 - 18.9
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Brand Name:
PANTO
Model Number:
P-LA31-12C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCIE USB 3.0 3 Port Adapter (1 External Type C + 1 x 20 Pin Internal) With 1 BC 1.2 Charging PortUS$ 9.9 - 10.5MOQ: 1 Piece -
PCIe SATA Dual Port Host Bus AdapterUS$ 5.95 - 7.95MOQ: 1 Piece
-
PCI Express X1 to USB3.1 Gen1 USB3.0 With Header USB 19pin Converter Expansion Card AdapterUS$ 9.9 - 10.5MOQ: 1 Piece
-
Pci Express to Usb 3.0 Converter PCIE x1 to USB3.1 Type C Gen 1 +USB 3.0 With 19pin Usb Header Expanison Card Supplier's ChoiceUS$ 8.9 - 9.5MOQ: 1 Piece
-
PCI Express x1 to Combo MSATA SSD + SATA III Controller Converter Card Msata Mini Pci Express CardUS$ 6.9 - 7.5MOQ: 1 Piece
Products Status
Stock
Brand Name
PANTO
Model Number
P-LA31-12C
Place of Origin
Guangdong, China
Product Description
Desktop USB 3.1 type C controller card PCIE x4 to daul USB3.1 Type C 10Gbps expansion Card
Model: P-LA31-12C
Product Name: PCIe X4 to 2port USB3.1 Type controller card
Chipset: ASM1142
input PCIe X4 Gen 2
Output 2 port USB3.1 Type C
Transfer speed: 10Gbps/5Gbps/480Mbps
compatible with USB3.0/USB2.0/USB1.1 and PCI EXPRESS 2.0
Color version: green
power supply SATA 15pin Connector
Weight 45g
OS support: Win10/8.1/8/7/
Operating Temperature: 5℃~40℃
Storage Temperature: ~20℃~70℃
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
Compliant with USB 3.1 specification.
Date transfer rate up to 10Gbps /5Gbps/480Mbps
Compatible with USB 3.0, 2.0 & 1.1 specification.
Supports 10Gbps PCI-E bus with full duplex channel.
Stable and reliable ASMEDIA Chipset ASM1142.
1 port USB 3.1 type C female connectors available.
PCI-E 4X connector fits PCI-E 4X, 8X or 16X slot.
Low-profile bracket available for small computer & server case, like 1U & 2U.
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
SATA 15 Pin power connector available for some high
current consumption peripherals, like 3.5" HDD.
Support Windows 7 / 8 / 8.1 /10
Please note that it is PCI-E 4X card and does not support PCI-E 1X slot.
Package content
1.PCIe USB3.1 expansion card*1pcs
2.CD *1pcs
3.low profile bracket*1pcs
Product Name: PCIe X4 to 2port USB3.1 Type controller card
Chipset: ASM1142
input PCIe X4 Gen 2
Output 2 port USB3.1 Type C
Transfer speed: 10Gbps/5Gbps/480Mbps
compatible with USB3.0/USB2.0/USB1.1 and PCI EXPRESS 2.0
Color version: green
power supply SATA 15pin Connector
Weight 45g
OS support: Win10/8.1/8/7/
Operating Temperature: 5℃~40℃
Storage Temperature: ~20℃~70℃
Features:
USB 3.1 a super fast and high-capacity data transfer solution.
Compliant with USB 3.1 specification.
Date transfer rate up to 10Gbps /5Gbps/480Mbps
Compatible with USB 3.0, 2.0 & 1.1 specification.
Supports 10Gbps PCI-E bus with full duplex channel.
Stable and reliable ASMEDIA Chipset ASM1142.
1 port USB 3.1 type C female connectors available.
PCI-E 4X connector fits PCI-E 4X, 8X or 16X slot.
Low-profile bracket available for small computer & server case, like 1U & 2U.
Plug & play and hot swapping capability.
Bus-powered mode and no external power required for most of peripherals.
SATA 15 Pin power connector available for some high
current consumption peripherals, like 3.5" HDD.
Support Windows 7 / 8 / 8.1 /10
Please note that it is PCI-E 4X card and does not support PCI-E 1X slot.
Package content
1.PCIe USB3.1 expansion card*1pcs
2.CD *1pcs
3.low profile bracket*1pcs

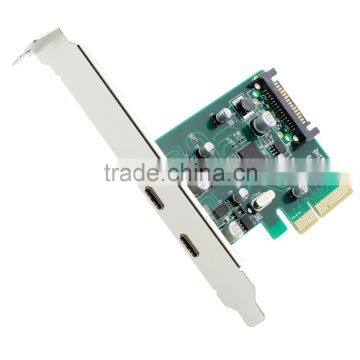

Detailed Images
Payment&Delivery
Our Service
1. We are the factory manufacturer so we can offer you with quite nice factory price.
2. Our products are all in good quality with nice appearance.
3. All of our products are brand new
4. All our products are packed carefully to ensure it is intact when you receive it.
5. OEM is available and are welcomed. You can request to print your logo or other things on the product by paying us small amount of money.
6. Any questions about us and our products are welcomed. We will answer you with patience.
7. Please kind contact us any time via
Trade Manager: szpanto SKYPE: apscel E-mail: robyhan#
