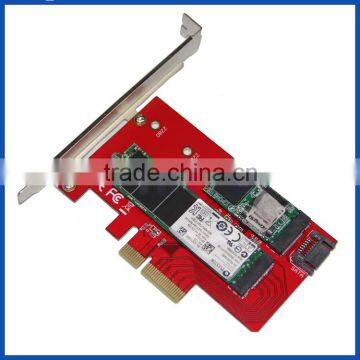

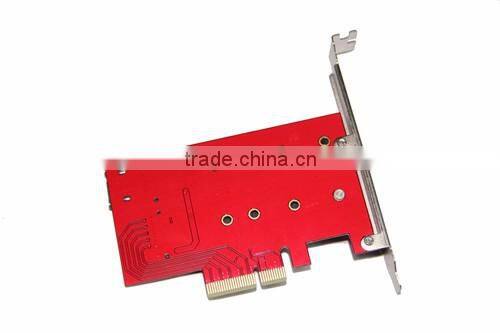

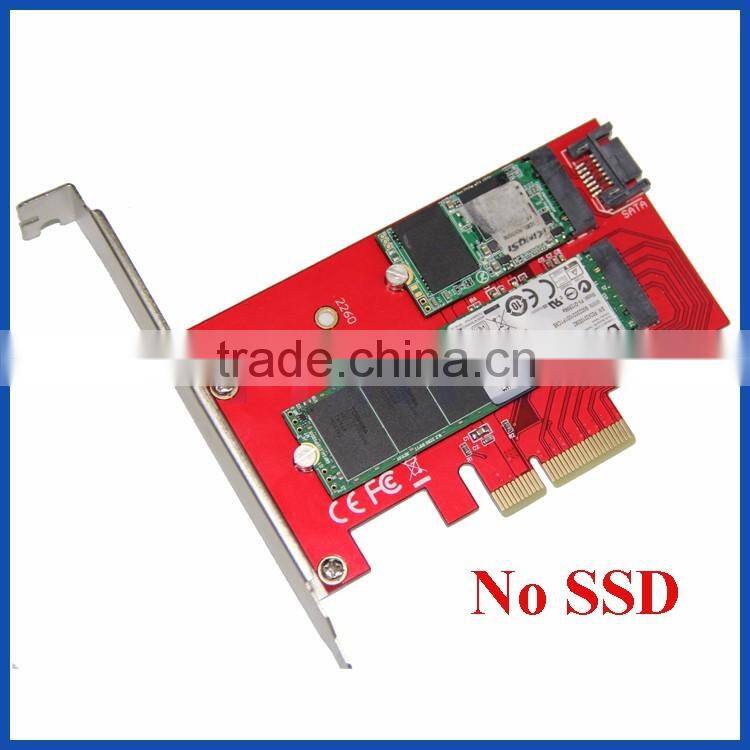

2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket

2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket thumbnail-1
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket thumbnail-2
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket thumbnail-3
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket thumbnail-4
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket photo-1
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket photo-2
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket photo-3
2 Port NGFF M.2 B + M Key SSD to PCI-E PCI Express 4X 4 Lane Adapter With Low Profile Bracket photo-4
US$ 5.95 - 7.95 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Brand Name:
PANTO
Model Number:
PT-LM-412N
Contact Supplier Request Quote Chat Now
Shenzhen Panto Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Brand Name PANTO
Model Number PT-LM-412N
Place of Origin Guangdong, China
Product Description
Item.
PT-LM-412N
Warranty Information
Warranty
2 Years
Hardware
Ports
3
Interface
2 X NGFF + 1 X SATA
Bus Type
PCI Express X 4
Card Type
Standard Profile (LP bracket optional )
Port Style
Integrated on Card



Industry Standards
SATA 3.0 specification for B key
PCI Express M.2 specification 1.0.
PCI-E 4X 3.0 specification for M key
M.2 Specification Revision 0.9
Chipset ID
N/A
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
Input Ports
1 - pcie x4 or Sata3.0
Output Ports
2-expand two port female NGFF(M.2) solt Key M & Key B
Performance
Maximum Cable Length
19.6 ft [50 cm]
Maximum Data Transfer Rate
6 Gbps
Type and Rate
SATA 3.0 - 6 Gbit/s
UASP Support
Yes

SSD Support
2230, 2242, 2260 & 2280 size NGFF SSD
Suitable for intel 7260NGW with 802.11ac WiFi & Bluetooth 4.0
Software


OS Compatibility
Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server® 2012, 2008 R2, 2003
Linux 2.6.31 or later
Special Notes / Requirements
System and Cable Requirements
Available PCI Express slot
Note
--For B key SSD the SATA 7 pin connector must be connected to motherboard.
--For M key SSD there must be a 2.0 or higher PCI-E 4X socket
Physical Characteristics
Product Length
4.7 in [121 mm]
Product Width
3.9 in [100 mm]
Product Height
0.9 in [23 mm]
Product Weight
1.8 oz [51 g]
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
5~85% RH
Packaging Information
Shipping (Package) Weight
5.4 oz [153 g]

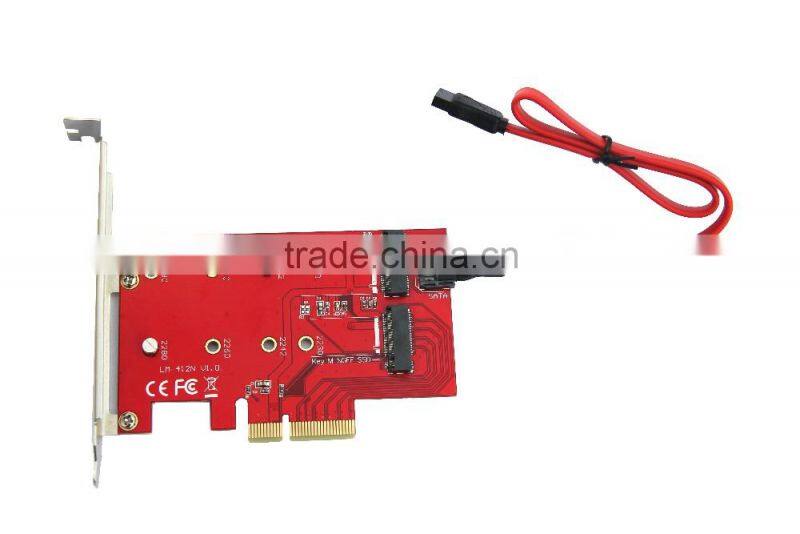

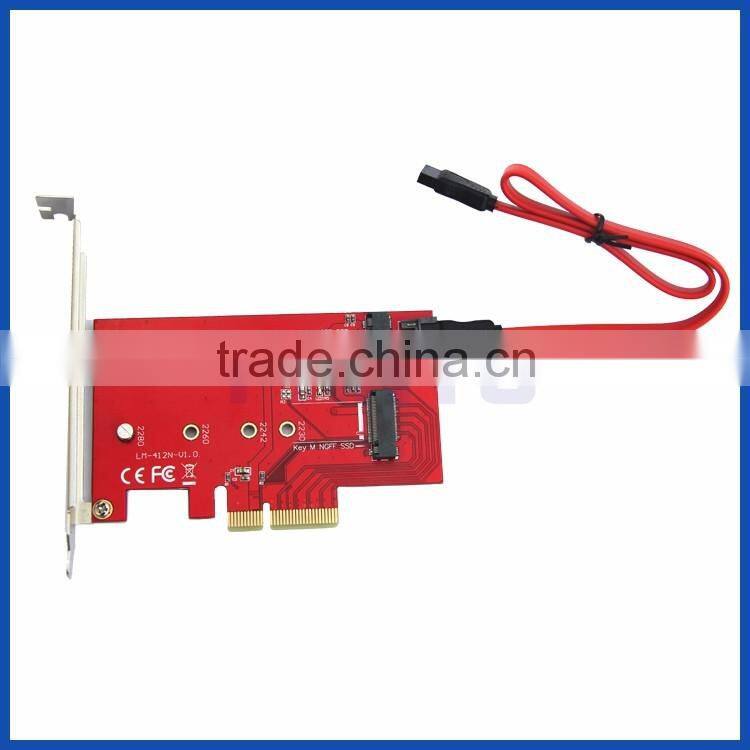

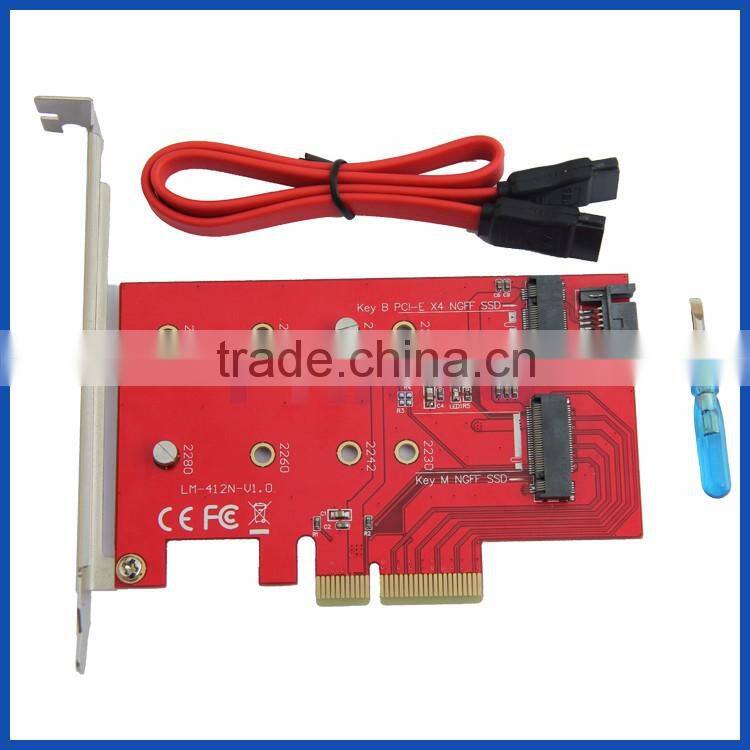

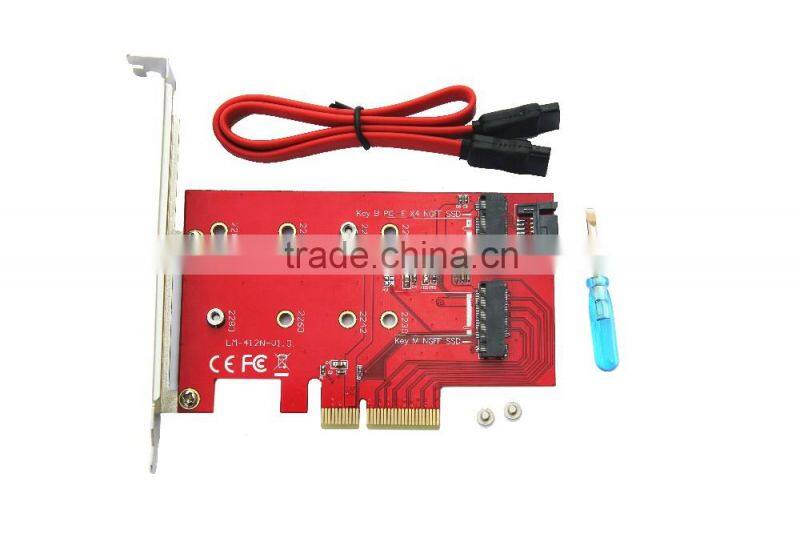

What's in the Box


Included in Package
1 -PCIE X4 to NGFF(M.2) SSD+SATA to NGFF(M.2)adapter card
1 -Screw Drive
1- Screw Pack
1 - Sata cable

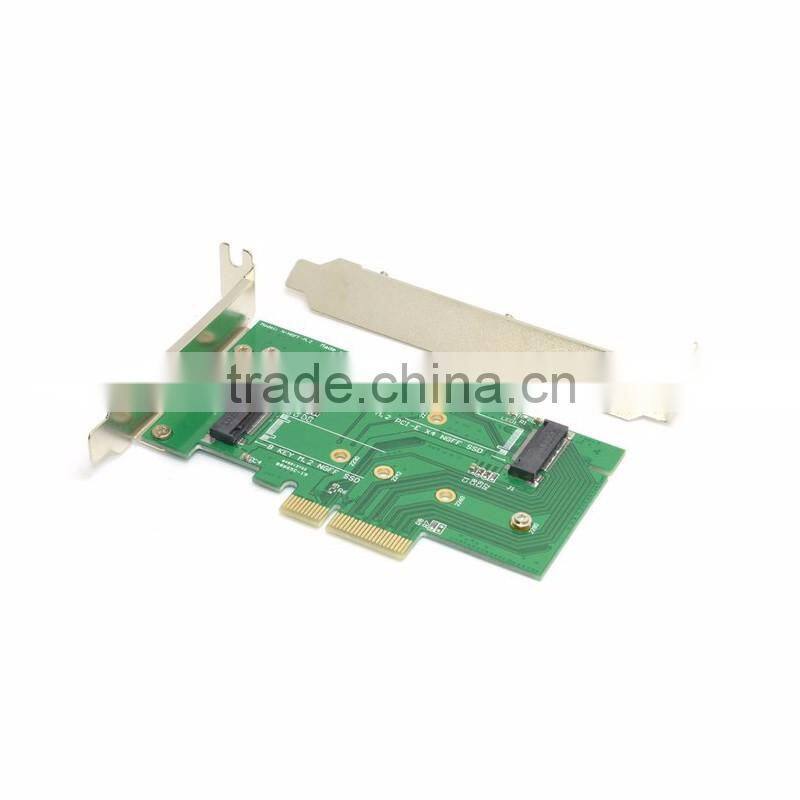

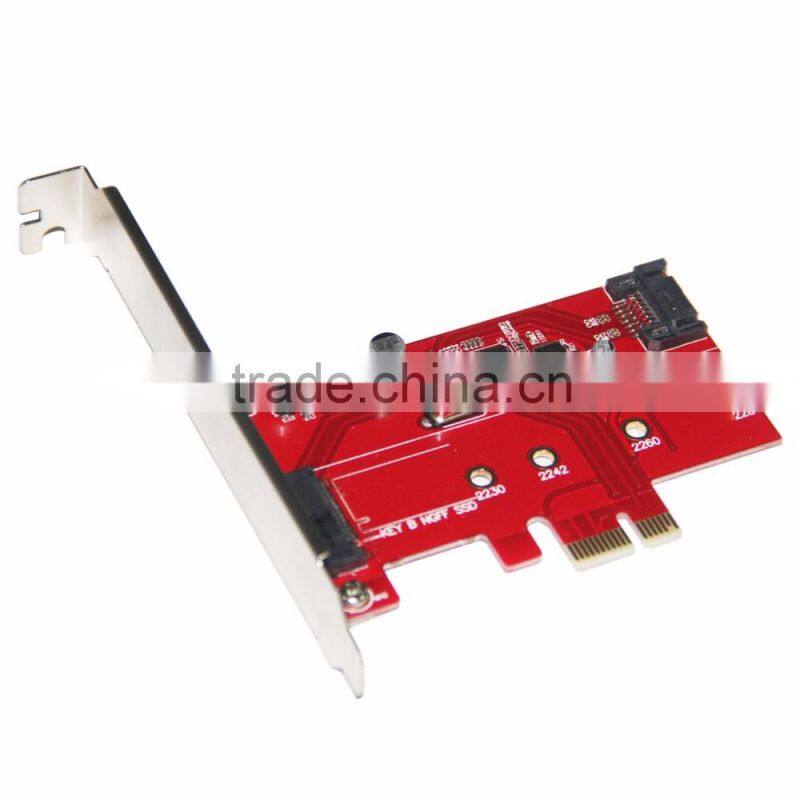

Related Products


SATA 3.0 M.2 B Key slot SSD PCI-e Card SATA III 6Gbps HDD M.2 B & M Key SSD to PCI Express card with Low Profile Bracket ASM1061


M.2 NGFF PCIe 4 LANE SSD to PCIE 3.0 x4 & NGFF to SATA Adapter for Samsung xp941 LITE-ON IT M6E With Low Profile Bracket

 x4 PCIe to SATA 3.0 + NGFF(m.2) RAID Card HyperDuo SATA port multiplier 88SE9230 SATA3.0

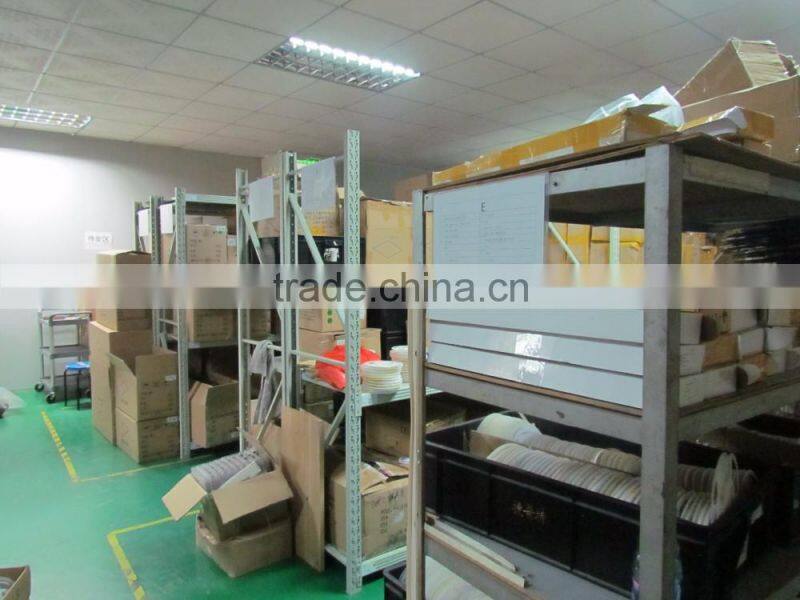

Our Company
