Home > Manufacturing & Processing Machinery > Mixing Equipment > Concrete Mixer > Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer for Sale

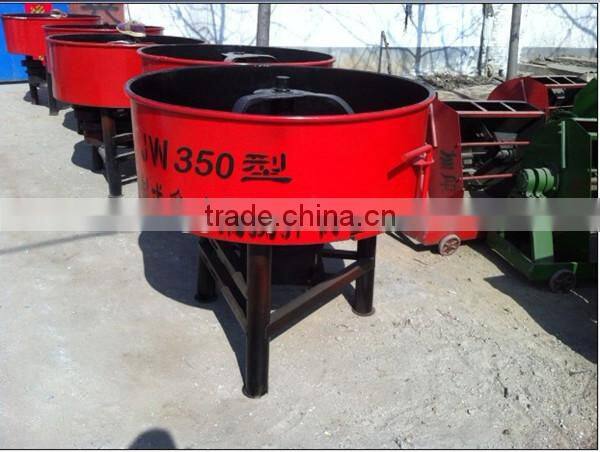

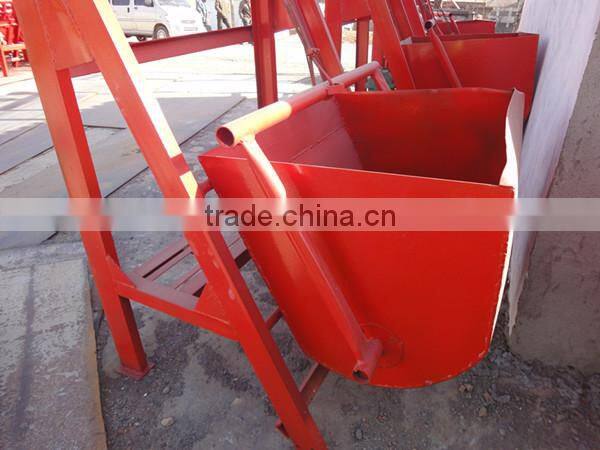

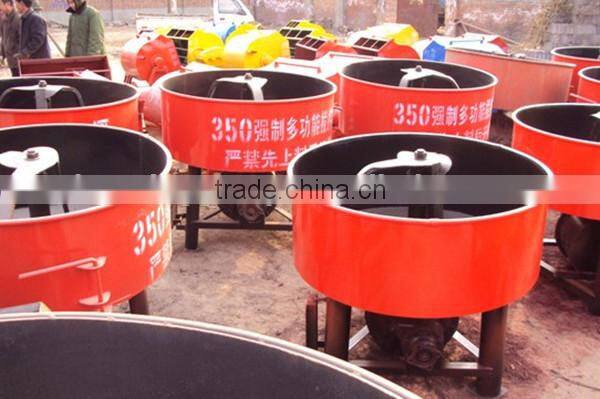

Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer for Sale

Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer for Sale photo-1

Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer for Sale photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Model Number:

JW250; JW350; JW500

Contact Supplier Request Quote Chat Now

Henan Huaning Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Model Number JW250; JW350; JW500

Mixing Power 5.5-7.5kw

Reclaiming capacity 250L-500L

Speed of Mixing Drum 19-35 r/min

Water Supply Mode Manual

Working Cycle Period 72s

Discharge Way By rotating reversely

Outline Dimension Vary according to different models

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer

Brief Introduction of Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer

Pan concrete mixer is forced mixing machine and the mixing drum is driven by gear ring.
It is frequently used to mix plastic, dry rigid concrete, fluid concrete, lightweight aggregate concrete and various mortar . It discharges concrete by rotating anticlockwide , while it mixes the materials by rotating clockwise.
Main models of the concrete pan mixer include: JW250, JW350,JW500. It can also work togrther with the batching machine to form small and medium size concrete mixing plant.

Applications of Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer

Highways, power station, dam construction, building sites, roads, bridge, water-power projects, large and middle prefabricated concrete mixing plants.

Features of Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer

High productivity
Final concrete is discharged rapidly and completely
Easy maintenance, with attractive appearance
Stable operation, low energy consumption
Compact structure, reliable drive
Light weight

Main Parameters of Cheap Vertical JW Series Manual Feeding Pan Concrete Mixer

Model	JW250	JW350	JW500
Discharge Capacity	250L	350L	500L
Rotation Speed (r/min)	19	35	35
Power (KW)	5.5	5.5	7.5
Overall Dimension (MM) (Diameter×Height)	Φ1000×1100	Φ1200×1400	Φ1500×1400

About Us

Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
Huaning Machinery produces and sells concrete equipment with many years’ experience. Our main products include various concrete mixers, concrete mixing plants, cement silos, concrete batching machines, screw conveyors, etc.
All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.

Display of Our Main Products

Contact Us

Thanks for your interests in our products. Please contact us if you have any questions. We must try our best to serve for you. And our products never disappoint you !
