Competitive Price Continuous feeding Cheap Screw Conveyor for sale
Negotiable
/ Set
1 Set(Min.Order)
- 8000 Set / Sets per Month
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
Totally-enclosed Cement Pipe Screw Conveyor for sale
-
Advance Construction Equipment Cement Screw Conveyor for sale
-
New Type Small Spiral Conveyer for Sale
-
Good Sealing Cement Spiral Conveyer for Sale, Spiral Conveyer for Cement
-
Continuous Feeding Material Conveyor Best Selling
-
Best Selling New Design Conveyor Machine Screw Conveyor
Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Stainless Steel | Material Feature | Heat Resistant | |
| Structure | Other, Screw Conveyor | Load Capacity | 25-75 t/h | |
| Place of Origin | Henan, China | Model Number | LSY Series | |
| Voltage | 220V, 380V, or customized | Power(W) | 5.5-18.5 kw | |
| Dimension(L*W*H) | Vary according to different models | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description

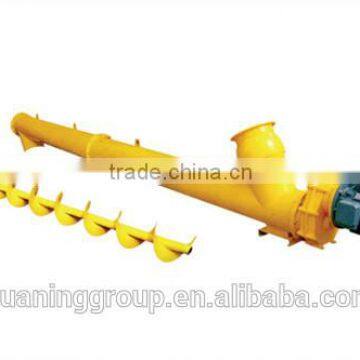

Competitive Price Continuous feeding Cheap Screw Conveyor for sale
Overview of Competitive Price Continuous feeding Cheap Screw Conveyor for sale
- Cheap Screw Conveyor is a kind of continuous transmission equipment and it uses rotation screw to convey materials. It allows multiple inlets and outlets. It is ideal for loose materials in the shape of powder and particles, such as cement, fly ash, sand, stone powder, grain, etc. But this machine is not suitable for materials featured by large viscidity, caking, or perishable.
- Working angle of Screw Conveyor is in the range 0~45°. It can be used together with other conveyor devices. In concrete mixing plant, screw convey is ideal for conveying cement from cement silo to mixing machine and from cement silo to batching machine.
Features of Competitive Price Continuous feeding Cheap Screw Conveyor for sale
- Adopt double-pitch paddles, which decrease the compression degree of material when being transported.
- Good seal performance, totally enclosed design for dust and vapor-tight requirements
- Flexible technological arrangement, easy to be installed, dismantled, and moved, safe operation
- Equipped with high-quality middle-hoisting bearing and tail bearing.
- Continuous feeding can be realized whether horizontally or in a large inclined angle.
- Compact structure, small cross section, light weight
Parameters
Parameters of Competitive Price Continuous feeding Cheap Screw Conveyor for sale
Model | LSY165 | LSY219 | LSY273 | LSY325 |
Shell Diameter(mm) | 165 | 219 | 273 | 325 |
Screw Diameter(mm) | 135 | 189 | 243 | 295 |
Conveying Length(m) | 2-12 | 2-12 | 2-12 | 2-12 |
Rotation Speed (r/min) | 300 | 200 | 209 | 174 |
Working Angle (°) | 0-45 | 0-45 | 0-45 | 0-45 |
Conveying Capacity (t/h) | 25 | 35 | 50 | 75 |
Motor Type | Y100L-4 | Y132M-4 | Y160M-4 | Y180M-4 |
Motor Power (kw) | 5.5-7.5 | 5.5-11 | 7.5-15 | 7.5-18.5 |
Details of Screw Conveyor
Our Services
Company Information
- HenanHuaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
