Home > Manufacturing & Processing Machinery > Mixing Equipment > Concrete Mixer > 350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Model Number:
JZC350
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JZC350 Electric Diesel Portable Cement Concrete Mixer MachineNegotiableMOQ: 1 Set -
Best Price JCZ350 Diesel Engine Concrete Mixer for SaleNegotiableMOQ: 1 Set
-
Most Popular Diesel Powered Product Concrete Mixer in AsiaNegotiableMOQ: 1 Set
-
Reasonable Price Used Mobile Diesel Hopper Cement Mixer for SaleNegotiableMOQ: 1 Set
-
Drum Diesel Mobile Concrete Mixer 350L for Sale, Mobile Concrete Mixing Machine 350LNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Model Number
JZC350
Motor Power
Diesel engine
Mixing Power
Diesel engine
Charging Capacity
560L
Reclaiming capacity
350L
Speed of Mixing Drum
14r/min
Water Supply Mode
Water pump
Working Cycle Period
72s
Discharge Way
By rotating reversely
Outline Dimension
2766x2140x3000
After-sales Service Provided
Engineers available to service machinery overseas
Description of products

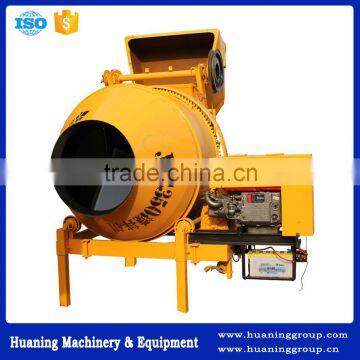

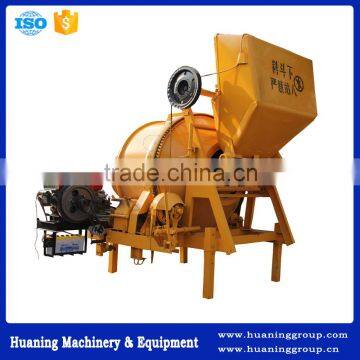

350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
Brief introduction of 350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
- 350L diedel concrete mixer is a mixer with double conical drums which Discharges concrete by reverse rotation and mixes materials by normal rotation. It is suitable for mixing plastic and semi-dry concrete with the size of aggregate up to 60mm .
- This machine is specially designed for some remote areas without electricity to achieve mechanized construction.It not only can be driven by diesel engine, but also can be driven by electric power if conditions permit.
Application of 350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
- It is used to be applied in architactural building site , road and bridge project ,precast concrete plant ,etc.
Features of Concrete Mixing Machine/ JZC350 Small Diesel Concrete Mixer
- Advanced performance;
- No limitation of electricity;
- General appearance;
- High productivity;
- Good-quality mixing;
- Convenient to move;
- Easy to operate and maintain.
Main Technical Parameters of 350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
Model | JZC350 |
Discharging Capacity (L) | 350 |
Charging Capacity (L) | 560 |
Productivity (m3/h) | 10-14 |
Mixing Drum Speed (r/m) | 14 |
Max. Aggregate Size (mm) | 60 |
Accuracy of Water Supply | Error≤2% |
Stirring Motor (kw) | 5.5 |
Max. Towing Speed (km/h) | 20 |
Tire Size | 6.50-16 |
Dimensions in Container (mm) | 2766x2140x3000 |
Overall Weight (kg) | 1950 |

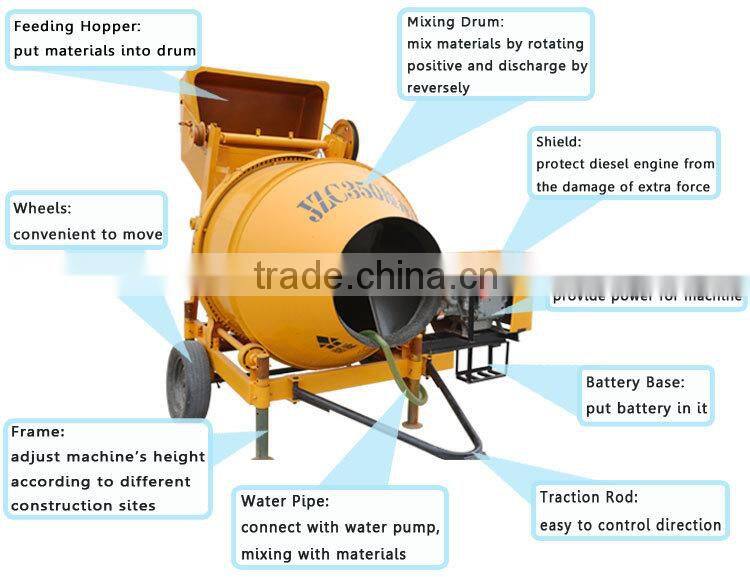

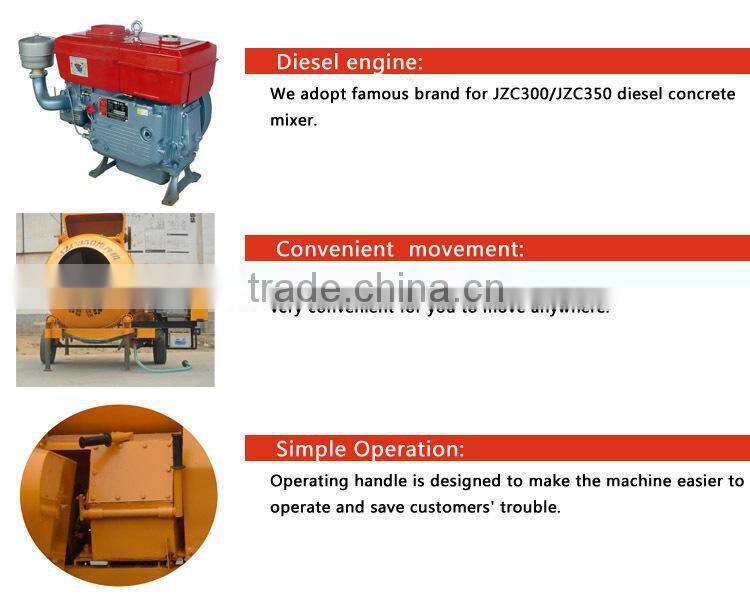

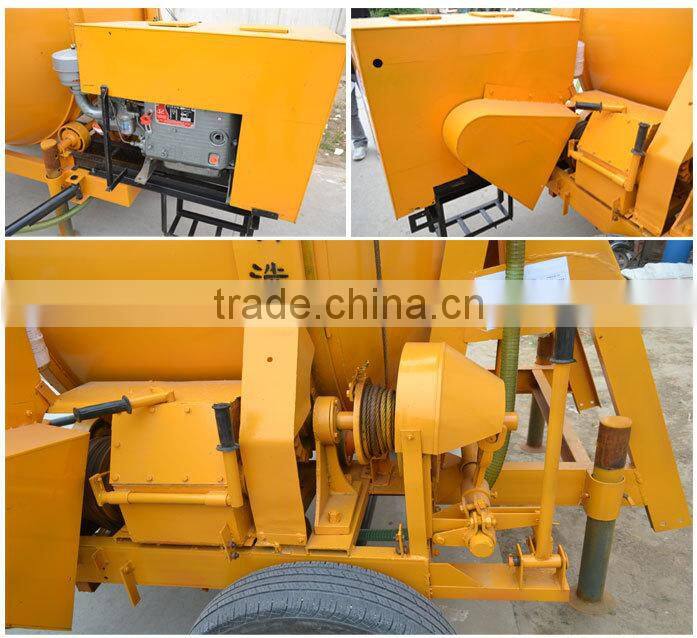

Details Show of 350L Diesel Engine Concrete Mixer/ Diesel Cement Mixer
Our Service
Company Information
- Henan Huaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
