Global safety 16A 250V snap action limit switch manufacturers
- SHENZHEN HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China supplier of 16A 250V micro switch distributors freeport il for gate opener
-
CE approved 16A 250V micro limit switches catalog actuator connection for gate opener
-
High quality low price push button Micro switch,micro switch button for games machine
-
Zing ear Push Button Sensitive Switch Safety Micro Switch
-
Momentary 0.5A/5A 250V types of electrical t85 0.5A 250V wire leads 91929 micro snap switch
Quality Choice
-
china supplier 0.5A 250VDC dpdt micro switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR, Greetech | |
| Model Number | G1216-1RW4AA | Protection Level | IP00 IP62 IP63 | |
| Operating Temperature | -40℃ - +85℃ | Max. Current | 0.25A 0.5A 16A 22A 26A | |
| Max. Voltage | 125VDC 250VDC 125VAC 250VAC 277VAC 480VAC |
Product Description
Global safety 16A 250V snap action limit switch manufacturers
Feature
-Housing are made of high temperature bakelite
-High sensitive differential travel
-Precise operation repeatability
-Long mechanical life
-ENEC/UL/CUL/CQC approved

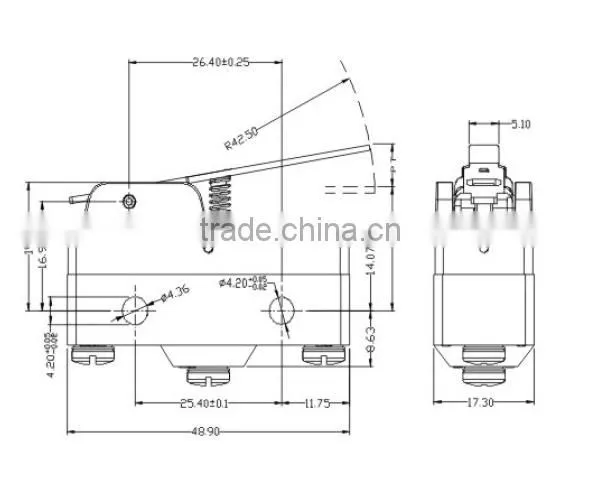

Drawing:

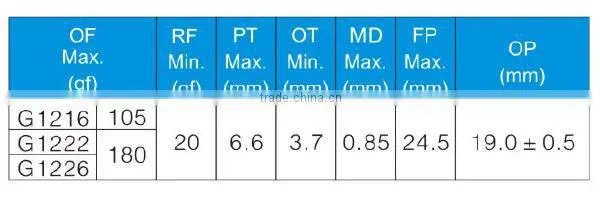

Operating characteristic
Parameters:
| Rating | 16A | ENEC/CQC 16A 125/250V or 480V 1/8HP 125VAC 1/4HP 250 VAC 0.5A 125VDC 0.25A 250VDC |
| UL/cUL 16A 125/250VAC 5E4 u 40T85 | ||
| 22A | ENEC/CQC 22A 125/250V or 480V 1/4HP 125VAC 1/2HP 250 VAC 0.5A 125VDC 0.25A 250VDC | |
| UL/cUL 22A 125/250VAC 5E4 u 40T85 | ||
| 26A | ENEC/CQC 26A 125/250V or 480V 1/2HP 125VAC 1HP 250 VAC 0.5A 125VDC 0.25A 250VDC | |
| UL/cUL 26A 250VAC 5E4 u 40T85 | ||
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 240 cycles/minute | |
| Contact Resitance (Initial Value) | 50mΩ Max | |
| Insulation Resistance ( at 500VDC) | 100MΩ Min | |
| Dielectric Strength | between terminals | 1500 VAC 50/60Hz 1min |
| between terminals and housing | 2500 VAC 50/60Hz 1min | |
| Storage Temperature | (-40℃~ + 85℃) | |
| Storage Humidity | 85% RH max | |
| Service Life | Electrical | 50,000~100,000cycles (Depend on part number) |
| Mechanical | 1,000,000cycles | |
| Unit Net Weight | about 60g (Drip proof panel mounting type) | |
| Trade Terms | 1.The price is based on FOB Shenzhen or Hongkong or EXW factory 2.MOQ:5000pcs Payment:T/T payment,50% deposit before production, balance 50% before shipment | |
| Certificates | ISO9001&TS16949 ENEC UL CUL &CQC RoHS & Reach | |
Application
-Machine tools
-Elevators
-Auto production Lina
-Civilian , industrial machinery field
-Any automation applications in automative field
Packing List
| o. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping
Greetech advantage:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Factory picture
Exhibition and Customer Visiting
FAQ :
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.
Q5.What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
