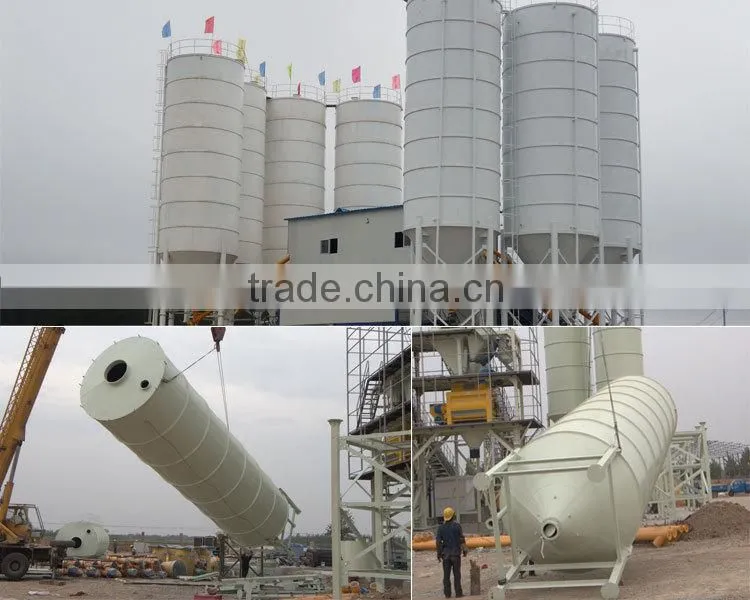

Technial Design Used Cement Silo for Construction
Brief Introduction of Technial Design Used Cement Silo for Construction
- Used Cement Silo is usually used with concrete batching plant to store bulk object, such as grain, cement, fly ash, dry mortar, etc.
- It is equipped with level indicator so as to monitor the material level and amount. With the screw conveyor, the materials can be conveying to every position.
- On the top of cement silo, dust filter is adopted to reduce powder leakage.
- Safety valve is utilized at the top of cement silo to balance the pressure difference between inside and outside.
Application of Technial Design Used Cement Silo for Construction
- Construction materials, chemical engineering, energy resources, environmental protection and foodstuff, like loading and unloading plants, dosing-weighing and mixing plants, batching plant etc.
Features of Technial Design Used Cement Silo for Construction
- Convenient installation and transportation
- Can be customized
- Good sealing performance
- Small area occupancy
- Long service life
Parameters of Technial Design Used Cement Silo for Construction
Model |
Tank Diameter(m) |
Cone Height (m) |
Tank Height (m) |
Landing Leg Height (m) |
Overall Height (m) |
30 T |
3 |
2.5 |
3.5 |
2 |
8 |
50 T |
3 |
2.5 |
5 |
2 |
10.5 |
60 T |
3 |
2.5 |
6.5 |
2 |
12 |
80 T |
3 |
2.5 |
8 |
2 |
13.5 |
100 T |
3 |
2.5 |
9.6 |
2 |
14.1 |
150 T |
3.2 |
2.8 |
12.8 |
2 |
17.6 |
Henan Huaning Machinery Equipment Co., Ltd is one of the large-scale enterprises of construction machinery, which has strong technical force, the modernization of production equipment and scientific manufacturing processes.
Our company is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
