Home > Products > Cement Silo > Easy Installation Cement Silo Structure
Easy Installation Cement Silo Structure
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai Tianjin Qingdao etc.
- T/T Credit Card
You May Like
-
Professional Chinese Bulk Cement Silo Manufacturers
-
Good Sealing Performance Cement Silo China With Reasonable Price
-
Long Service Life 50 Ton Cement Silo With ISO Certification
-
100T Capacity Steel Stainless Grain Silo
-
60 Ton Cement Silo With Good Quality for Sale
-
30T, 50T, 60T, 80T, 100T, 150T, 200T Cement Silo Manufacturers
Product Details
| Place of Origin | Henan, China | Model Number | 30T, 50T, 60T, 80T, 100T, 150T | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Simple Structure Cement Silo
Product Description

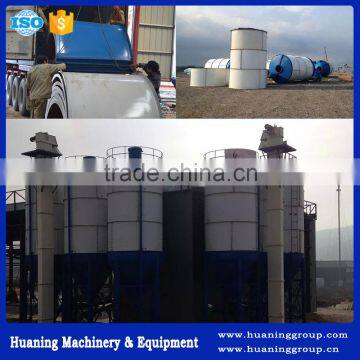

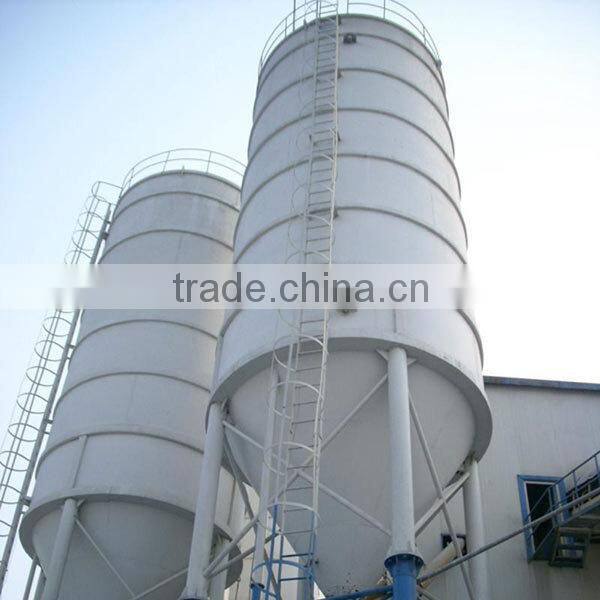

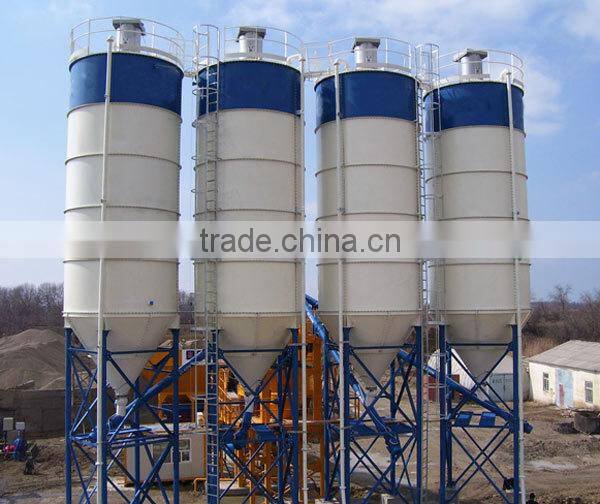

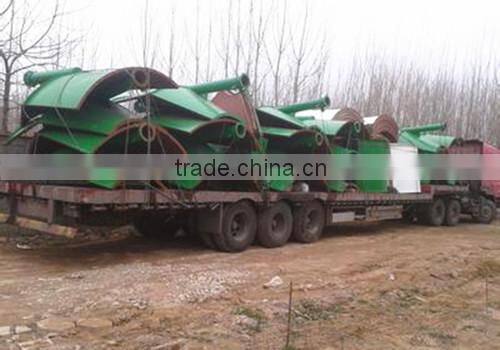

Pictures of Simple Structure Cement Silo
Brief Introduction of Simple Structure Cement Silo
- Simple Structure Cement Silo is a sealed silo for bulk storage object, suitable for storing grain, cement, fly ash, fine ore, dry mortar, etc.
- It is equipped with level indicator so as to monitor the material level and amount. With the screw conveyor, the materials can be conveying to every position.
- On the top of cement silo, dust filter is adopted to reduce powder leakage.
- Safety valve is utilized at the top of cement silo to balance the pressure difference between inside and outside.
Application:
- Construction materials, chemical engineering, energy resources, environmental protection and foodstuff, like loading and unloading plants, dosing-weighing and mixing plants, batching plant etc.
Features of Simple Structure Cement Silo
- Perfect sealing assures its efficient working performance
- convenient installation
- Waterproof and moisture-proof
- Screw connection on inner side, anti-corrosion
- Can be customized
- Safe and reliable
- Unhindered discharge, no blocking
Parameters
Parameters of Simple Structure Cement Silo
Model | Tank Diameter (m) | Cone Height (m) | Tank Height (m) | Landing Leg Height (m) | Overall Height (m) |
30 T | 3 | 2.5 | 2.5 | 2 | 8 |
50 T | 3 | 2.5 | 5 | 2 | 10.5 |
60 T | 3 | 2.5 | 6 | 2 | 11.5 |
80 T | 3 | 2.5 | 7.5 | 2 | 13 |
100 T | 3 | 2.5 | 9.3 | 2 | 14.8 |
150 T | 3.2 | 3 | 13.5 | 2 | 19.5 |
Our Services
Company Information
- HenanHuaning Machinery & Equipment Co., Ltd is one of the large-scale enterprises of construction machinery. It is specialized in manufacturing and selling concrete equipment for more than 20 years. Up to now, we already have 14 experienced engineers and 180 staffs.
- All our products have passed ISO9001 International Quality System Certification and high product quality wins the trust from most customers.
- Our main products are: Concrete Mixing Plant (HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120, HZS180); Concrete Mixer (JS Series, JDC Series, JZC Series, JZM Series, JW Pan Concrete Mixer, Diesel Engine Concrete Mixer); Concrete Batching Machine; Screw Conveyor; Cement Silo; JZ350 Mortar Mixer; etc.
