Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Crusher > Multi Application Equipment Shredder and Crusher Unit

Multi Application Equipment Shredder and Crusher Unit

Name: Multi Application Equipment Shredder and Crusher Unit
Brand: Techno
SKU: 103473737
Availability: InStock

Multi Application Equipment Shredder and Crusher Unit thumbnail-1

Multi Application Equipment Shredder and Crusher Unit photo-1

US$ 10,000 - 99,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Techno

Contact Supplier Request Quote Chat Now

Zhangjiagang Techno Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Techno

Model Number DN Series

Use Other, Recycled Plastics,Industry/Electrical/Medical Waste Shredder

Plastic Type Other, ABS,PET,PP/PE,PVC,etc

Shaft Design Single

Power 7.5-150KW

Capacity 400-3000KG/H

Voltage 220-480V Customized

Power(W) 7.5-150KW

Dimension(L*W*H) Variable

Weight 2800-5500kgs

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Product Description

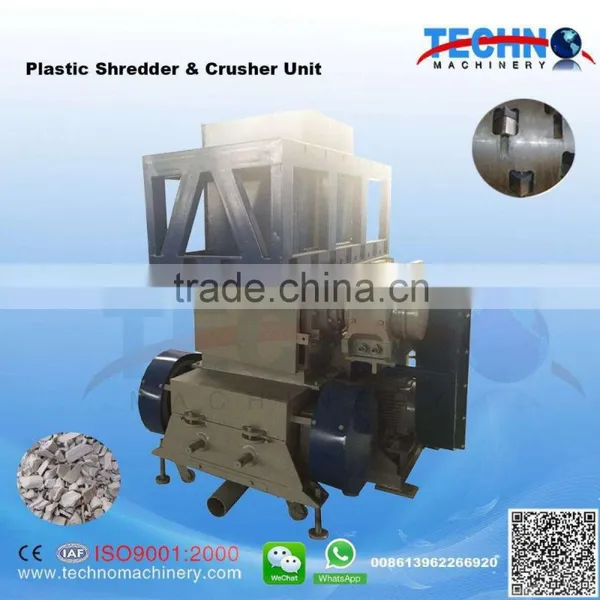

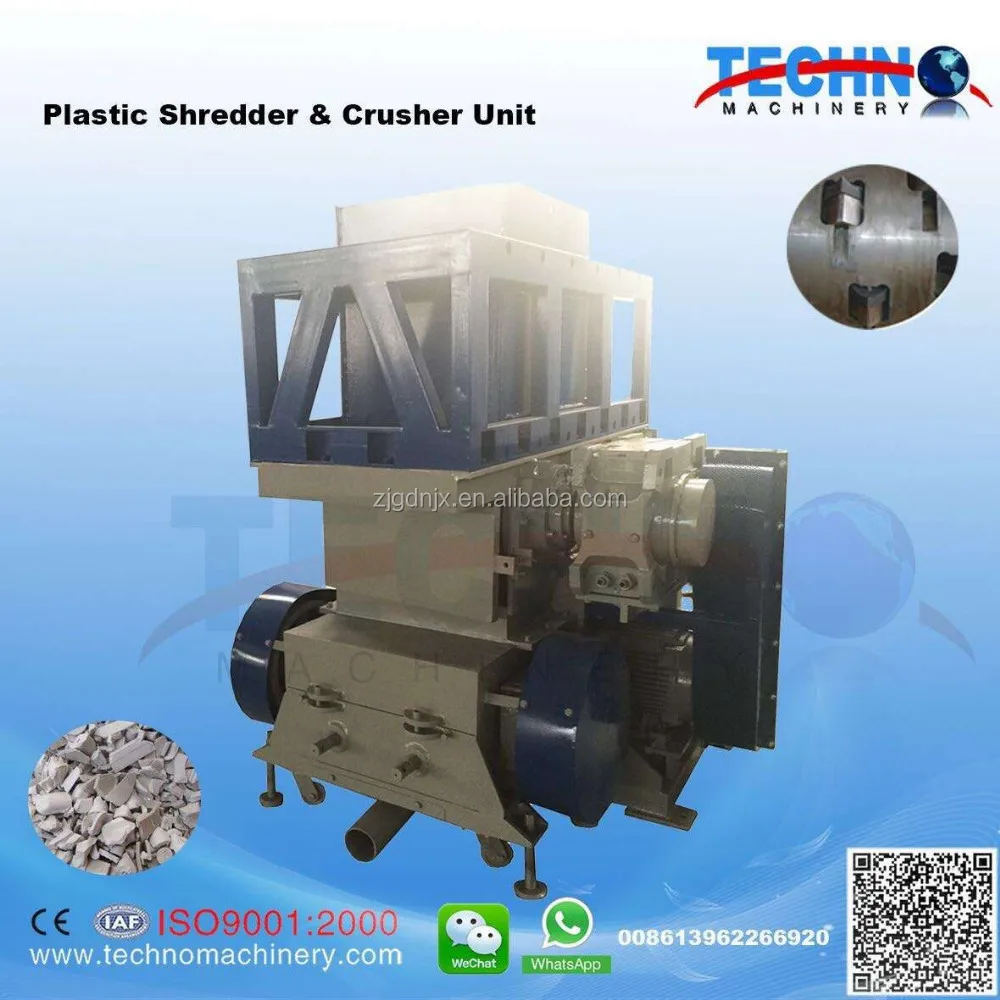

Shredder Illustration

DN series shredder could be used in shred the pipe,sheet,film,nylon,rubber,etc.The machine have solid structure,slow speed,steady operation.The hydraulic pushed the materials into the center axis automatically for shredding once they were put into the feeding tank.The crusher could crush the materials again after finishing the shredding,the crushing particles are meticulous and uniform.DN series shredder has many advantages such as high efficiency,low energy consumption etc.

Main Technical Parameter
Model	DN2260	DN4060	DN4080	DN40100
Cylinder Stroke(mm)	600	700	850	850
Rotor Diameter(mm)	Φ270	Φ400	Φ400	Φ400
Main Shaft Speed(r/min)	83	83	83	83
Screen Mesh(mm)	Φ40	Φ40	Φ40	Φ80
Rotor-knives(PCS)	26	34	46	58
Stator-knives(PCS)	1	2	2	2
Main Motor Power(KW)	22+15	30+22	37+30	45+37
Hydraulic Motor Power(KW)	2.2	2.2	2.2	2.2
Blade swing diameter(mm)	Φ300	Φ400	Φ400	Φ400
Rotor quantity(pcs)	18	18	24	30
Fixed blade quantity(pcs)	2pc	2pc	2pc	2pc
Screen size(mm)	12	12	12	12
Motor power(kw)	15	22	30	37
Particle size after cracking(mm)	Φ3-10	Φ3-10	Φ3-10	Φ3-10
Wind machine motor power(kw)	2.2kw	3kw	4kw	5.5kw
Weight(kg)	2800	3600	4600	5500

Certifications

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2.5 (L) * 1.8 (W) * 2 (D)
Weight	3 T
Packaging Details	If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
