Primary Shredder
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Tehcno Shredder | Model Number | YMD Series | |
| Use | Other, Recycled Plastics,Industry Waste,Electrical Waste,Medical Waste,etc | Plastic Type | Other, ABS,PET,PP/PE,PVC,etc | |
| Shaft Design | Double | Power | 7.5-150KW | |
| Capacity | 400-3000KG/H | Voltage | 220-480V | |
| Power(W) | 7.5-150KW | Dimension(L*W*H) | Variable | |
| Weight | Variable | Certification | CE/ISO Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

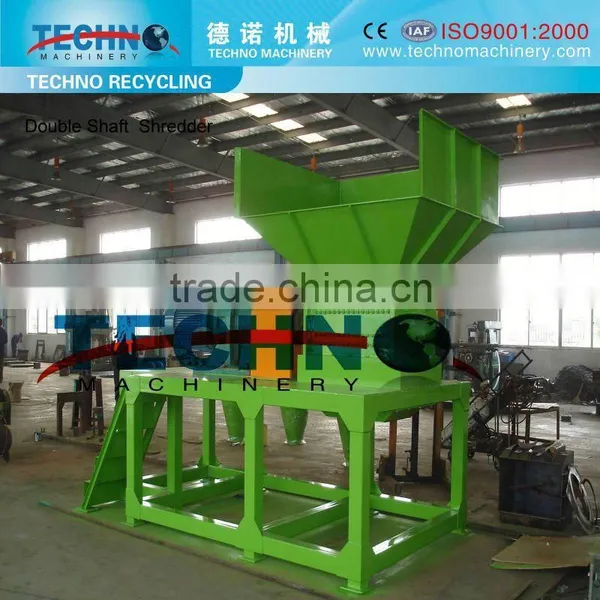

Double Shafts Shredder Machine
Primary Shredder
Illustration of Primary Shredder
Shredder is a machine used for crushing, generally for handling unprocessed raw materials or scraps to make smaller size. The shredded scrap of plastics or rubbers can be as melted raw material for granulation to re-produce plastic bottle,tyres or waste container,etc. Shredder is widely used in plastic recycling industry, electrical waste, medical waste, MSW-to energy, biomass energy and so on.
Features of Primary Shredder
1. Heavy rotation blade,high crushing efficiency and fixed blade with alloy casting,rugged,long service life
2. Thick iron frame and high torque resistance
3. Easy to adjust and low maintenance costs
4. Output should be based on the actual crushing density and shape of objects
Main Parameter of Primary Shredder for only reference
No. | Twin shafts shredder |
A(mm) | 1720 |
B(mm) | 1260 |
C(mm) | 404 |
D(mm) | 510 |
F (mm) | 600 |
H (mm) | 1900 |
Rotor diameter(mm) | Diameter 284 |
Speed of rotation(r/min) | 17 |
Rotaion blade(pcs) | 20 |
Thickness of the blade(mm) | 20 |
Main motor power(kw) | 7.5 |
Weight of the machine(kg) | 1400 |
Primary Shredder
Standard Export Seaworthy Packing Primary Shredder
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
Contact Us
- Zhangjiagang Techno Machinery Co., Ltd.
- Contact nameIven Koo Chat Now
- Phone86-512-56795381
- AddressRoom 307, 3rd Floor, P Building, No. 3, Zhenxing Middle Road
