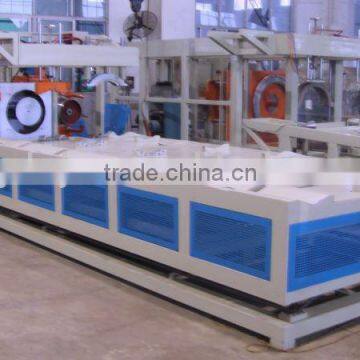

PVC Pipe Belling Rieber socketing machine
- Shanghai for shipping pvc Rieber socket-pipe belling-machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Plastic-PVC-Pipe-Socketing-Belling-Machine+Integrated-Seal-Rubber-Ring
-
Plastic-PVC-Pipe-Socketing-Belling-Machine+Integrated-Seal-Rubber-Ring
-
SGK series pipe belling machine
-
SGK20-250mm PVC Pipe Belling Machine
-
fully automatic pvc belling machine
-
110B Full Automatic Plastic Pipe Belling Machine /Expanding Machine
Product Details
| Condition | New | Product Type | Plastic Pipe | |
| Place of Origin | Jiangsu, China | Brand Name | Techno | |
| Model Number | SGKKGJ | Voltage | 220-480V | |
| Power(W) | 50kw | Dimension(L*W*H) | 7500*1930*2200mm | |
| Weight | 1.5-8t | Certification | CE | |
| Warranty | 12 Months, 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic PVC Pipe Socketing Machine equipped with an integrated seal
Illustration of Forming end sockets equipped with an integrated seal Automatic Pvc-Pipe Socket machine
Fully automatic pipe belling machine is suitable for the U-PVC belling.
Shapingway adopts rising in the mould and increasing the barometric pressure out of the mould to make it stereotypic.
Our main productions include: all kinds of belling/socketing machine of PVC pipes, PVC Corrugated pipes, PP-H pipes, PE pipes.
The belling types are including Rubber ring (Collapsible Core) type, Rectangle (Blow) type,smooth (U) type,Rieber (Gaskets) type.
Model | SGK | |
Belling Scope | Φ16mm-Φ1000mm | |
Belling-type | R-type, Square-type and Smooth type | |
Pipe Length | 3m-8m | |
Use Voltage | AC 380V; 50Hz (Or according to customer's request) | |
Central Height | According to customer's request | |
Molding mode | R-type | with collapsible core |
Smooth type | Pushing mould directly into pipe | |
Cooling mode | Air-cooled or Water cooled | |
Main Parameter of Pvc Pipe-Socket machine
Model | Belling Scope | Total Power | G.W. | Overall dimensions (mm) | Belling-type |
SGK75S | Φ16mm-Φ75mm | 7kw | 1500kg | 7460×1950×1900 | U type |
SGK110 | Φ20mm-Φ110mm | 7kw | 1300kg | 7460×1550×1900 | U or R type |
SGK160 | Φ40mm-Φ160mm | 18kw | 2300kg | 7000×1530×1963 | R-type Smooth-type |
SGK250 | Φ50mm-Φ250mm | 18kw | 2500kg | 7300×1730×1950 | R-type Smooth-type |
SGK315 | Φ110mmΦ315mm | 25kw | 2800kg | 7500×1930×2100 | R-type Smooth-type |
SGK400 | Φ160mm-Φ400mm | 25kw | 3000kg | 7900×2140×2125 | R-type Smooth-type |
SGK630 | Φ315mm-Φ630mm | 32kw | 3500kg | 8423×2970×2650 | R-type Smooth-type |
SGK1000 | Φ500mm-Φ1000mm | 50kw | 8000kg | 10000×4600×2570 | R-type Smooth-type |
China Automatic pvc-pipe-socket-machine
Pvc Pipe Socket machine
"R" Type Socket Pvc Pipe Socket machine
Straight Type Socket Pvc Pipe Socket machine
Rectangular Type SocketPvc Pipe Socket machine
Rubber ring integrated sealing euqipped with belling machines
Standard Export Seaworthy Packing Automatic Pvc Pipe Socket machine
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us.
If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer Pvc Pipe Socket machine
