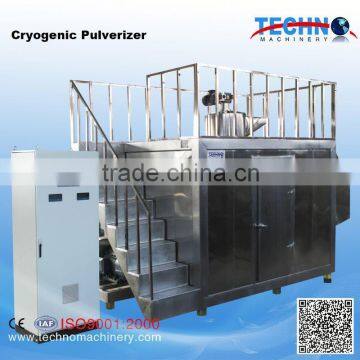

Cryogenic Pulverizer Machine
US$ 100,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pulverizer
Product Type:
Other, Plastic,Rubber,Foodstuffs,Medicine Pulverizer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Pulverizer
Product Type
Other, Plastic,Rubber,Foodstuffs,Medicine Pulverizer
Place of Origin
Jiangsu, China
Brand Name
Techno Cryogenic Pulverizer
Model Number
TM-50
Voltage
220-480V
Power(W)
45KW
Dimension(L*W*H)
4500X2200X2900mm
Weight
3300KGS
Certification
CE/ISO/BV
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Cryogenic Pulverizer Machine
Product Description
Operating Principle
This cryogenic pulverizer uses liquid nitrogen as cooling medium.When crushed material is achieved at the brittle fractured state,it goes into mechanical pulverizing chamber and repeatedly impacts,collides,shears,mills by high speed rotation of blade and gear to reach the optimal crushing effect.The milled material has airflow grading machine to classify and collect.If the fineness of material does not meet the requirements,it will return silo to continue grinding.The air conditioning mostly can be cyclic utilization.
Features
1.Low energy consumption,output is 2-3 times than that of normal pulverizing
2.According to the temperature of material embrittlement point,adjust the best crushing temperature
3.Material explosion-proof,anti-oxidation,etc
Application
Engineering plastics, Nylon series product, Polyester series products, Polypropylene series products, Polyethylene series products. Rubber/Footwear products, PE, PS, PET, HDPE, LDPE, LLDPE, MDPE, PP, PA1010, PA66, PA11, EVA, PA12, PA46,PPT, TPU, ABS, PC, PU,POM, PBT, PPO, PMMA, PPS, PI, PSF, PEEK, PCTFE, LCP, PTFE, PES, PAI, PAR, PSU, EAA, MAPP, MAPE, SBS, AS,MBS, UHMWPE, AES, PI, PF,etc.
Hot melt adhesive, Thermal plastics, Thermal sensitive products.
Foodstuffs Fields: such as chili powder, pepper powder, food additives(sodium alginate powder, xylitol powder, sorbitol powder)
Medicine, drug and herbal Fields,Chemistry Fields
Technical Table of TM-50 Cryogenic Pulverizer Machine
No. |
Item |
Technical Parameter |
Brand |
1. |
Main Grinding Motor Power |
45KW |
Siemens |
2. |
Main Grinding Speed Adjust Method |
Inverter Control |
ABB |
3. |
Material Input Size |
5-15mm |
|
4. |
Output Size |
10-100 mesh |
|
5. |
Grinding Chamber Diameter |
500mm |
|
6. |
Feed in and out method |
Screw Feeding |
|
Packaging & Shipping
Standard Export Seaworthy Packing Cryogenic Pulverizer Machine
Our Services
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period, TECHNO will provide spare parts without any charge in case of quality disrepancy caused by us. If the malfunction are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Company Information
Zhangjiang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machine include the following: 1) plastic pipes production line 2) plastic profiles production line 3) plastic sheets production line 4) plastic pellets production line 5) plastic mixers 6) plastic pulverizer 7) cryogenic pulverizer.......
FAQ
Term of Payment
a. L/C at sight
b. T/T ( 30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
