Home > Industrial Equipment & Components > Engine & Part > Engine > 320HP Marine Boat Engine Inboard Engine

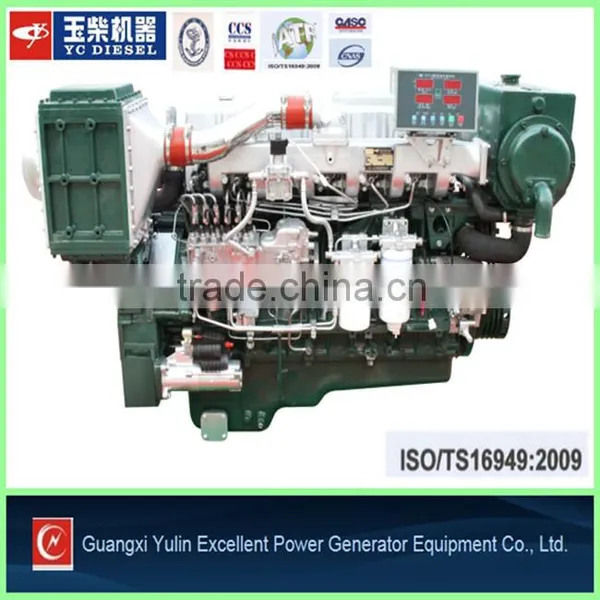

320HP Marine Boat Engine Inboard Engine

320HP Marine Boat Engine Inboard Engine thumbnail-1
320HP Marine Boat Engine Inboard Engine photo-1
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Contact Supplier Request Quote Chat Now
Guangxi Yulin Excellent Power Generator Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Engine 4 Stroke
Fuel Type Diesel
Cylinders 6
Engine Position Inboard
Dimensions (L x W x H) (mm) 1652X939X1262mm

1. Technical parameters





YC6M/6MK Series Technocial Parameters
Model YC6M220C YC6M240C YC6M240C YC6M260C YC6M270C YC6M295C
Type Vertical in line water cooled four-stroke direct-injection
Combustion chamber type Direct injection
Number of cylinders bore*stroke 6*120*145mm
Intake way Turbo-charging Turbo-charging & Inter-cooled
Displacemen   (L) 9.839 Emission T2
Compression ratio 17.5:1
Continuous Power/Speed (Kw/r/min) 162(220)/1800 176(240)/1500 176(240)/1500 192(260)/1800 199(270)/1500 216(295)/1800
One-hour Power/Speed (Kw/w/min) 178(242)/1800 194(264)/1800 194(264)/1800 211(286)/1548 219(297)/1858 238(238)/1858
Min.specific fuel consumption  ≤189(g/kw.h)
Specific oil consumption        <0.5(g/kw.h)
Rotation direction counterclockwise
Starting Electric motor
Net Mass           (kg) 1200
Overall dimensions (mm) 1652*939*1262
Applicable alltitude < 2500
Reduction gearbox to be matched 300     J300     D300
Certificate ZC   ZY     CCS IMO

Model YC6M280C YC6M300C YC6M320C YC6MK300C YC6MK320C YC6MK330C
Type Vertical in line water cooled four-stroke direct-injection
Number of cylinders bore*stroke 6*120*145mm 6*123*145mm
Intake way Turbo-charging & Inter-cooling
Displacement       (L) 9.84 10.338
Compression ratio 17.5:1
Continuous Power/Speed (Kw/r/min) 205(280)/2100 219(300)/1500 234(320)/2100 221(300)/1500 235(320)/1800 242(330)/1500
One-hour Power/Speed     (Kw/w/min) 227(308)/2168 241(330)/1548 257(352)/2168 243(330)/1548 259(352)/1858 266(363)/1548
Min.specific fuel consumption  ≤189(g/kw.h)
Specific oil consumption        ≤0.5(g/kw.h)
Oil Capability     (L)            28
Rotation direction Counterclockwise
Starting Electric motor
Net Mass           (kg) 1200
Overall dimensions (mm) 1652*939*1262
Reduction gearbox to be matched MB242, MB270, 300 etc
Certificate ZC   ZY     CCS IMO

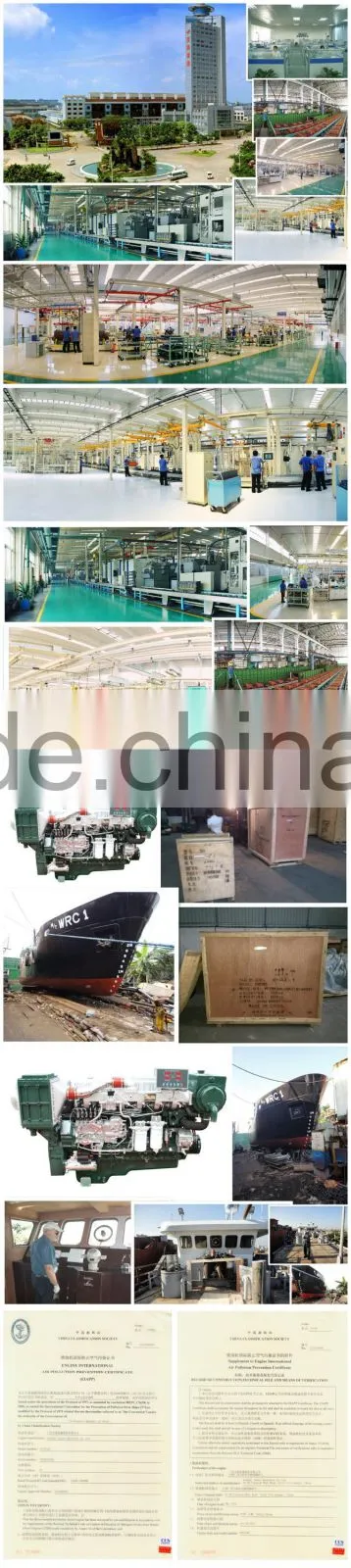

2.Factory & Workshop & Service center



320HP marine boat engine inboard engine
