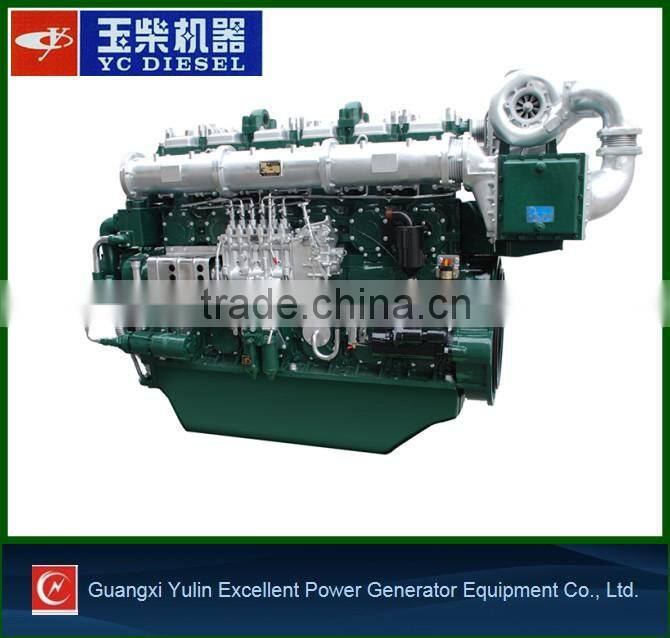

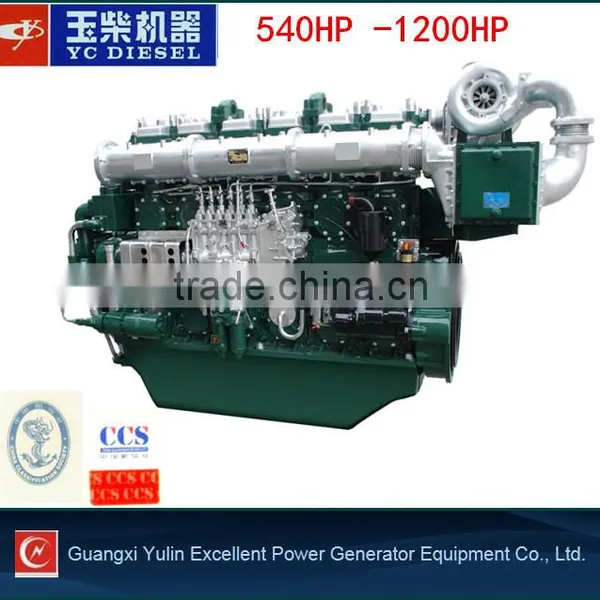

1200HP Marine Engine Inboard Engine
US$ 1 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Engine:
4 Stroke
Engine Capacity:
> 6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
390HP Marine Diesel Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set -
510HP Marine Diesel Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
-
510HP Inboard Engine Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
-
480hp Marine Engine Hot Sale Inboard EngineUS$ 1,000 - 50,000MOQ: 1 Set
-
480hp Marine Engine Hot SaleUS$ 1,000 - 50,000MOQ: 1 Set
Condition
New
Engine
4 Stroke
Fuel Type
Diesel
Cylinders
6
Engine Position
Inboard
Dimensions (L x W x H) (mm)
2870*1260*2350mm
Specification as below:
| YC6C1200L-C20 Series Marine Diesel Engine | |||
| Technical Parameters | |||
| Ref. Picture | |||
| Model | YC6CL1200L-C20 | ||
| Type | 6-cylinder,Vertical in line,direct injection, water-cooled and 4-stroke | ||
| Number of cylinders*Bore*Stroke (mm) | 6*200*290 | ||
| Intake way | Turbocharged & intercooled | ||
| Displacement (L) | 54.6 | ||
| Compression ratio | 14.5:1 | ||
| Continuous power/speed (kw/r/min) | 882(1200HP)/1000 | ||
| One-hour power/speed(KW/PS/r/min) | 970.2(1320)1032 | ||
| Min. specific fuel consumption (g/kw*h) | ≤195 | ||
| Specific oil consumption (g/kw*h) | ≤0.8 | ||
| Engine oil capacity (L) | 150-180 | ||
| Crankshaft rotation direction | Anticlockwise | ||
| Start method | Electric(Gas start is optional) | ||
| Net weight (kg) | 4700 | ||
| Overall dimention (L*W*H) (mm) | 2870*1260*2350 | ||
| wooden packing dimension (L*W*H) (mm) | 2900*1350*2350 | ||
| Gross weight (KG) | 5800KG | ||
| Installation Drawing | |||
