Advertising 46 Inch DID-LCD DISPLAY LCD Video Wall Project

FOB Price

US$ 1 - 9,999 / Unit

1 Unit(Min. Order)

Port Shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	User Or Oem
Model Number	PJ-4605R	Type	TFT
Application	Indoor	Panel Size	46 Inch
Max Resolution	1920x1080	Viewing Angle	178D
Pixel Pitch	0.53*0.53	Color	16.7M
Contrast Ratio	3000:1	Brightness	450cd/m2
Response Time	6ms	Input Voltage	250W

Product Description

Specifications

1.thin narrow design;
2.The comprehensive input interface support;
3.The screen can display HD
4.Free combination

lcd video wall

46 inch DID-LCD DISPLAY LCD video wall Project

Features:

High brightness,High definition and high gaumt

Narrow bezel design

Optional joining methods

Environmental & safety

Advanced screen parameter revise functions

Stable operation , long life and low maintenace costs

The LCD video wall bracket adopts steel structure,firm and embedded installation,simple and compact structure,save space

Specifications
Model No.			PJ4605R
Screen size			46' Samsung DID LCD screen(super narrow bezel 7.3mm)
Aspect Ratio			16:9
Resolution			1920x1080
Color			8Bit,16.7M
Brightness (nits)			450cd/m2
Contrast			2000:1
Visual angle (H/V)			178°
Response time			<=6ms
Life(hrs)			>60,000(hrs)
Input and output
Composite Video Input			3(3xBNC)
YUV/YPbPR			1(3xBNC)
S-YC			1(2xBNC)
D-15 RGB Input(VGA)			1
HDMI			1
DVI			1
Audio Input			1
Composite Video Output			2(2xBNC)
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power supply			AC100V~240V
Maximum power consumption			250W
Standby power consumption			<=3W
Temperature
Working temperature			0°C~50°C
Working humidity			20%-80%
Appearance
Product dimension( W x H x D) mm			1025.65x579.84x126.73
Acessory
Cable			Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG

Install:

Wall-mounted,floor stand, cabinet installation optional

Package:

Application:

The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.

Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.

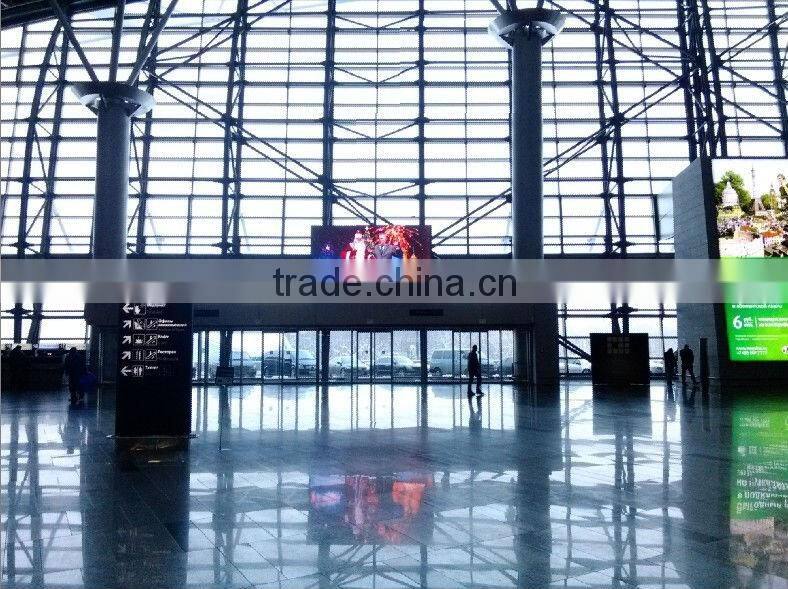

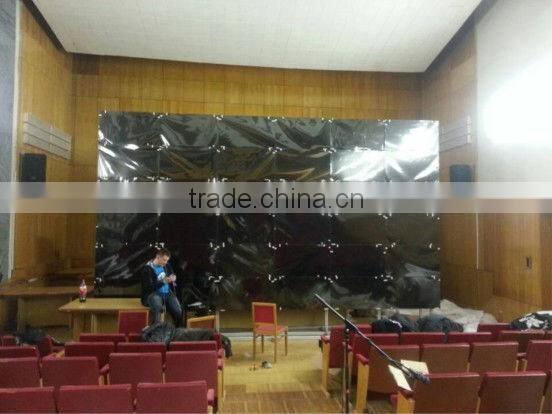

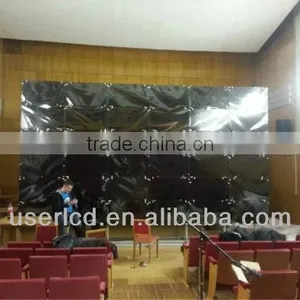

Application case:

We provide servise:

1. Customized requirment is available , OEM&ODM are welcome.

2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .

3. Warranty: one year overall unit ( Non-artificial damage )

Certificate:

Office and Workshop:

Products show:
