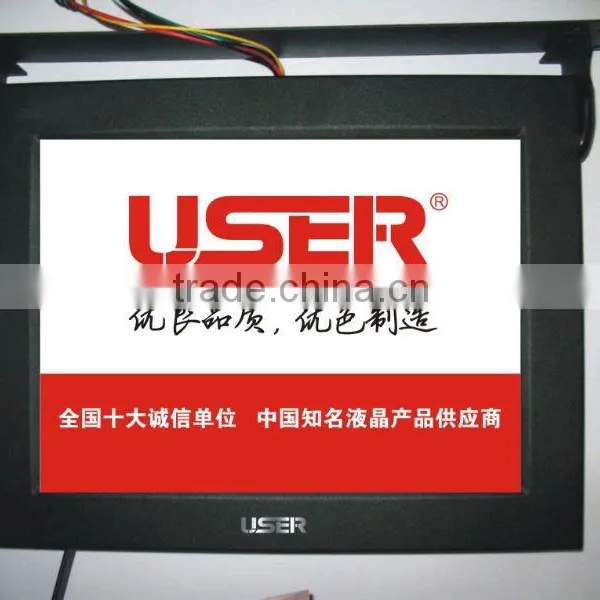

17 Inch Advertising Lcd Monitors for Bus

Name: 17 Inch Advertising Lcd Monitors for Bus
Brand: User
SKU: 103453803

US$ 1 - 9,999 MOQ: 10 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

User

Model Number:

US-AH17C

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name User

Model Number US-AH17C

Type TFT

Application Indoor

Panel Size 17Inch

Max Resolution 1920*1080

Viewing Angle 178D

Pixel Pitch 0.264*0.264

Color 16.7M

Contrast Ratio 1000:1

Brightness 450cd/m2

Response Time 5ms

Input Voltage DC 12v

Specifications

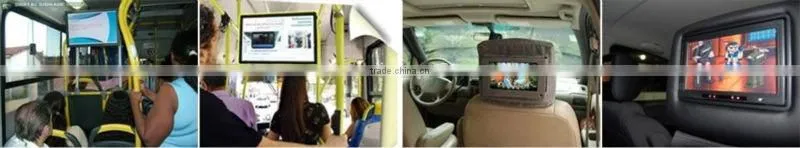

User Bus ad player
- Acrylic protection,Metal shell
- Color:BlackWhiteSilver
- Feature:Narrow border

Detailed functions
Video format	MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio format	Wave/MP3/WMA/AAC
Image format	JPEG/BMP/TIFF/PNG/GIF
Image resolution	480P/720P
Play mode	Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc
Time	year/month/day/week/h/m/s, in the top right corner (open and close optional)
Timing open & close	Per day 5 times, 7 days a week, free time
Timing play	7 days a week, free set the play program everyday
Alarm clock	Set 5 alarms one day, once ring the alarm, play the specified program
OTG	Support copy, delete, remove, rename, build new file among different cards
Running subtitle	Can set the play location, word size, color and back-color
Log files	Record the play time (concise to second), the play contents
Angle subscript display function	Can set the play time, just support BMP picture with biggest resolution 160*90
Memory function	Power off, memory the time of the play; power on, play from the time, not from beginning
Key and lock function	Use the remote controller before input the keyword
Encrypt CF card	Play the contents in the CF card before input the keyword
Sound volume	Can set the volume of sound in the different time
Storage card lock	Have a anti-theft lock in the case, equip 2 sets key
Other function	Customized
Upgrade software	Just put the upgrade file in the storage cards

Specification model	US-M1701C
Panel size	17″TFT-LCD
Display area(mm)/mode	304(W)×272(H) 4:3
Maximum resolution	1280*1024
Display color	16.7M
Pixel Pitch(mm)	0.264(H)×0.264(V)
Brightness (nits)	450cd/m2
Contrast	1000:1
Visual angle	170°/170°
Response time	5ms
Life(hrs)	>60,000(hrs)
Input and output
Composite video input	No
Y,Pb,Pr/Y,Cb,Cr input	No
S-video	No
HDMI	No
Composite video loop output	1
L/R audio input	1 ( RCA * 2)
L/R audio output	1 ( RCA * 2)
Speaker	2×5W(9Ω)
Video
Color system	PAL/NTSC/SECAM
Remote controller	Special
Ads input interfaces
USB	1 ( USB2.0 interface)
SD	1
CF	1
OSD display( screen menu display)
Menu language	Chinese/English( multiple language option required)
Power
Power supply	DC12V 2A
Maximum power consumption	50W
Standby power consumption	<3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-20°C~60°C
Working humidity		85%
Storage humidity		85%
Appearance
Body dimension(Lx W x H)mm	32925860 (just for reference)
Panel color/appearance	White, black, customized
Panel material	Metal case SPCC
Installation	Ceiling mount
