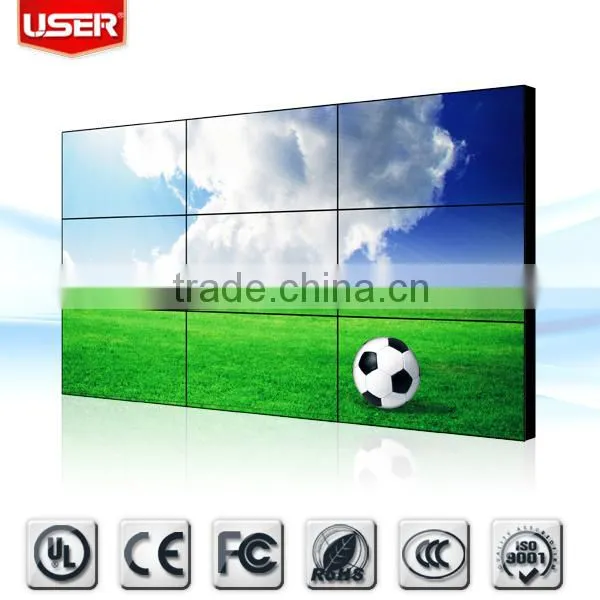

46inch Altra-thin Bezel 3*4 LCD DID Video Wall

Name: 46inch Altra-thin Bezel 3*4 LCD DID Video Wall
Brand: USER
Availability: InStock

FOB Price

US$ 1 - 3 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	USER
Model Number	US-LTI460AA05

1.46" Ultra Narrow bezel LCD DID video wall
2.3x4 system with 12 pcs splicing player box
3.Splicing seam:2.4 & 4.3mm

Specifications
Model No.			US-LTI460AA05
Panel Size			46'' Samsung DID LCD Screen(super narrow bezel 6.7mm)
Aspect Ratio			16:9
Max Resolution Support			1366x768
Color			8Bit,16.7M
Brightness (nits)			450cd/m2
Contrast			4000:1
Visual Angle (H/V)			178°
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
Input and output
DVI			1
HDMI			1
D-15 RGB Input(VGA)			1
YUV/YPbPR			1(3xBNC)
S-(YC)			1(2xBNC)
Composite Video Input/(AV)			3(3xBNC)
Composite Video Output			2(2xBNC)
AUDIO INPUT			1
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			250W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			1025.65x579.84x126.73mm
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG
