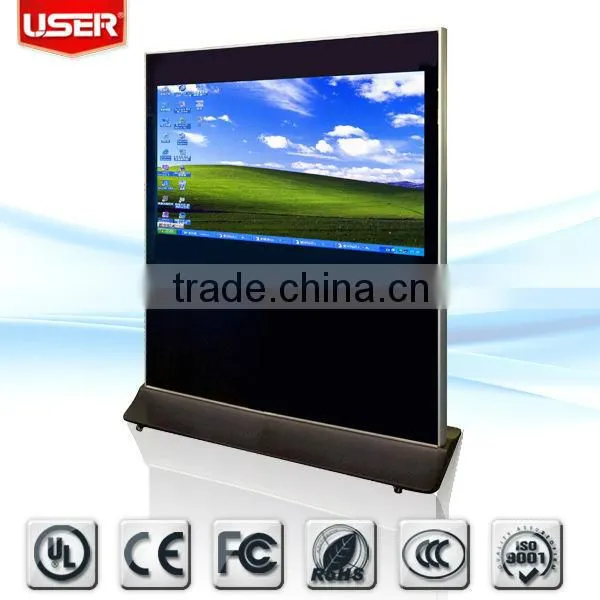

32'' Touch Screen All-in-one PC, Rugged Metal Cabinet, LED Backlight

Name: 32'' Touch Screen All-in-one PC, Rugged Metal Cabinet, LED Backlight
Brand: USER
SKU: 103449117
Availability: InStock

US$ 1 - 5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER

Model Number:

US-T3201HC

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER

Model Number US-T3201HC

Type TFT

Application Indoor

Panel Size 32''

Max Resolution 1920*1080

Viewing Angle 178°/178°

Pixel Pitch 0.3645mm

Color 16.7M

Contrast Ratio 3500:1

Brightness 450nits

Response Time 6ms

Input Voltage 180W

Model No.	US-T3201HC
Panel size	32'' TFT-LCD, A+ grade panel
Display area(mm)/mode	700Wx394(H)(mm) 16:9
Maximum resolution	1920×1080
Display color	16.7M
Pixel Pitch(mm)	0.3645mm
Brightness (nits)	450nits
Contrast	3500:1
Visual angle	178°/178°
Response time	6ms
Horizontal frequency	50-70KHZ
Vertical frequency	56-75KHZ
Life(hrs)	50,000(hrs)
Touch Panel
Specification	Infrared touch
Positioning accuracy	±2mms
Transmittance	92%
Hardness	7H
Click manner	double point/mult-point(optional)
Response time	10ms
Output Resolution	8192×8192
Life time	Single point of more than 600 million times
Input and output
VGA input	1
HDMI	1
USB	4
LAN	1
PC Audio	1
Speaker	2×10W(8 ohm)
Video
Color system	PAL/NTSC/SECAM
Compatible HDMI input/DVI	480P,576P,720P,1080I,1080P
3D Comb filter	Yes
Video reduction noise	Yes
OSD display( screen menu display)
Menu language	Chinese/English
Computer
Main chipset	Intel H61
CPU	Intel I3-2100 3.1G
System bus frequency	800/1066/1333 MHz
Graphics card	Integrated
Audio card	Integrated AC97
Network card	Integrated 10/100/1000M adaptive
Memory	4G DDRIII
Hard Disk	320G SATA
WIFI	Optional
Bluetooth	Optional
Original OS Optional	Non
Power
Power supply	AC100V~240V,50/60Hz
Maximum power consumption	180W
Standby power consumption	3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-10°C~60°C
Working humidity	20%~80%
Storage humidity	5%~95%
Appearance
Cabinet color/appearance	White, black, customized
Cabinet material	SPCC/Aluminum/Customized
Installation	Floor-standing
