42 Inch Interactive Kiosk Touch Screen
US$ 500 - 1,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
USER
Model Number:
US-T4201HC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Free-stand Touchscreen PC KioskUS$ 1 - 5MOQ: 1 Piece -
2013 Computer ScreenUS$ 1,000 - 3,000MOQ: 1 Set
-
Standalone Multimedia of the Kiosk (OEM) With ShelfNegotiableMOQ: 1 Piece
-
Stand-alone Metal Shell Multimedia KioskNegotiableMOQ: 1 Piece
-
High Quality Standalone Metal Case Multimedia Interactive Touch Screen KioskNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
USER
Model Number
US-T4201HC
Specifications
1.42 Inch Interactive Kiosk Touch Screen2.Manufacturer
3.Delivery timely
4.Full service
5.Warranty:1year

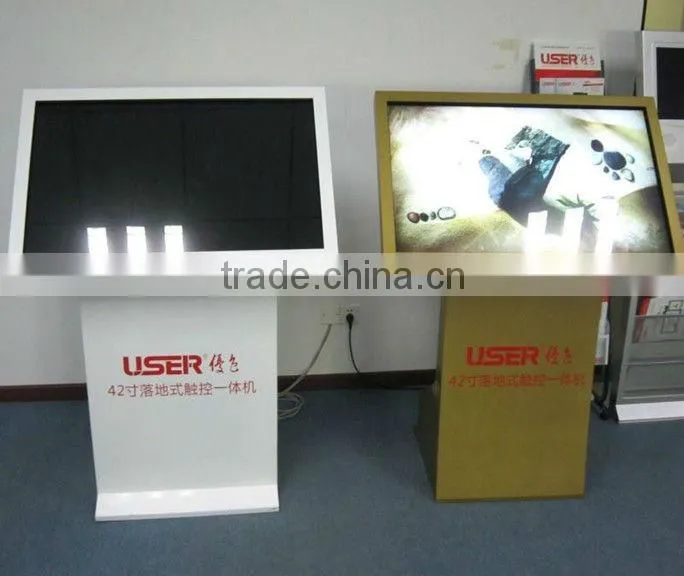

42 Inch Interactive Kiosk Touch Screen
| Specifications | ||||||||||
| Model N interactive multimedia kiosk with touch screen and PC o. | US-T4201HC | |||||||||
| Panel size | 42" TFT-LCD | |||||||||
| Display area(mm)/mode | 930(W)×523.0(H) 16:9 | |||||||||
| Maximum resolution | 1920×1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared touch | |||||||||
| Positioning accuracy |
±2mms | |||||||||
| Transmittance | ≥92% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point/mult-point(optional) | |||||||||
| Response time | <=10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 600 million times |
|||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YUV Input | 1 (BNC×3) | |||||||||
| S-video | 1 (BNC×2) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Audio(L/R) input | 1(RCAx2) | |||||||||
| Audio(L/R) output | 1(RCAx2) | |||||||||
| USB2.0/Serial/SP2 input | 2(for touch screen use) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Computer | ||||||||||
| Main chipset | Intel G41+ICH7 | |||||||||
| Main board | ONDA G41 | |||||||||
| CPU | Intel Pentium Dual E5500 (2.8G) | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated IntelGMX 4500 | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | 2G DDRIII (max 4G) | |||||||||
| Hard Disk | 320G SATA | |||||||||
| Operation system | Windows 7 | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <=3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 1249.6×739.2×122.2((for reference only) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | floor standing | |||||||||
| Certificate | CE/FCC/3C/RoHS | |||||||||
