Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Other Exhibition and Advertising Equipment > IR Touch 19" Multimedia Kiosk

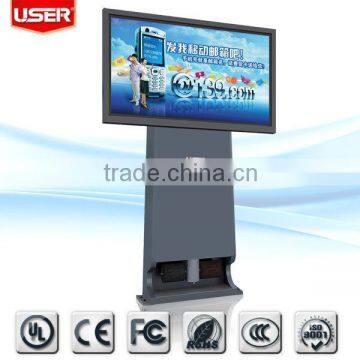

IR Touch 19" Multimedia Kiosk
Negotiable
MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
USER (or OEM)
Model Number:
US-T4201HC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
USER (or OEM)
Model Number
US-T4201HC
Type
TFT
Application
Indoor
Panel Size
19 inch
Max Resolution
1280x1024
Viewing Angle
178°/178°
Pixel Pitch
0.4845
Color
16.7M
Contrast Ratio
1000:1
Brightness
500cd/m2
Response Time
8ms
Input Voltage
35W
Specifications
19" IR touch Multimedia KioskMainstream computer configuration
Good quality, moderate price
Timely delivery
Customizable
19" IR Touch Multimedia Kiosk
| Specification model | US-T1901HC | |||||||||
| Panel size | 17″TFT-LCD | |||||||||
| Display area(mm)/mode | 379(W)×304(H) 4:3 | |||||||||
| Maximum resolution | 1280×1024 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.264(H)×0.264(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Horizontal frequency | 50-70KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | IR touch screen | |||||||||
| Positioning accuracy |
±2mms | |||||||||
| Transmittance | ≥95% | |||||||||
| Hardness | 7H | |||||||||
| Click manner | double point | |||||||||
| Response time | ≤10ms | |||||||||
| Output Resolution | 4096X4096 | |||||||||
| Life time | Single point of more than 60 million | |||||||||
| Input and output | ||||||||||
| Composite video input | 2(BNC×2) | |||||||||
| YUV Input | 1 (BNC×3) | |||||||||
| S-video | no | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| HDMI | 1 | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| AV/YUV Audio input | 1 aperture Φ3.5mm | |||||||||
| PC Audio output | 1 aperture Φ3.5mm | |||||||||
| USB2.0/Serial/SP2 input | 2(for touch screen use) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Computer | ||||||||||
| Main chipset | Intel G41+ICH7 | |||||||||
| Main board | ONDA G41 | |||||||||
| CPU | Intel Pentium Dual E5500 (2.8G) | |||||||||
| System bus frequency | 800/1066/1333 MHz | |||||||||
| Graphics card | Integrated IntelGMX 4500 | |||||||||
| Audio card | Integrated AC97 | |||||||||
| Network card | Integrated 10/100/1000M adaptive | |||||||||
| Memory | 2G DDRIII (max 4G) | |||||||||
| Hard Disk | 320G SATA | |||||||||
| Operation system | Windows 7 | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <35W | |||||||||
| Standby power consumption | <1W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5%~95% | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | SPCC/Aluminum/Customized | |||||||||
| Installation | floor-standing | |||||||||
