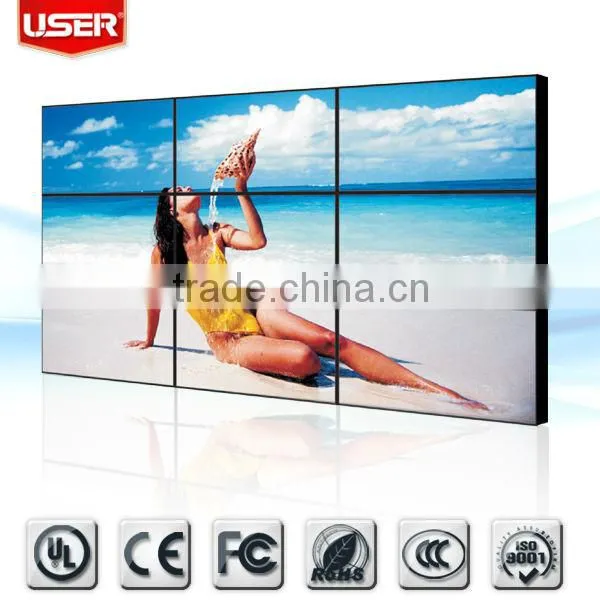

46inch Samsung DID Screen DIY Video Wall

Name: 46inch Samsung DID Screen DIY Video Wall
Brand: USER
SKU: 103447905
Availability: InStock

Shenzhen USER Special Display Technologies Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER

Model Number:

US-LTI400HM03

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER

Model Number US-LTI400HM03

Type Other, DID

Application Indoor

Panel Size 40 inch

Max Resolution 1920x1080

Viewing Angle 178°

Color 16.7M

Contrast Ratio 3000:1

Brightness 700cd/m2

Response Time 6ms

Input Voltage 250W

Specifications

46inch samsung DID screen DIY video wall
narrow bezel and factory price

46inch samsung DID screen DIY video wall

Specifications
Model No.			PJ5502(US-LTI550HN05)
Panel Size			55" Samsung DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight)
Aspect Ratio			16:9
Max Resolution Support			1920x1080
Color			8Bit,16.7M
Brightness (nits)			450cd/m2
Contrast			3500:1
Visual Angle (H/V)			178°
Response Time			<=6ms
Life(hrs)			>60,000(hrs)
Input and output
DVI			1
HDMI			1
VGA			1
YPbPr			1(BNCx3)
S-video			1(BNCx2)
Composite Video Input/(AV)			3(BNCx3)
Composite Video Output			2(BNCx2)
Control signal input and loop out			RS232(RJ45-8)
Split Screen			Support Picture in Picture(PIP/POP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			250W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			1215.3mm × 686.1mmx116.2mm
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG
