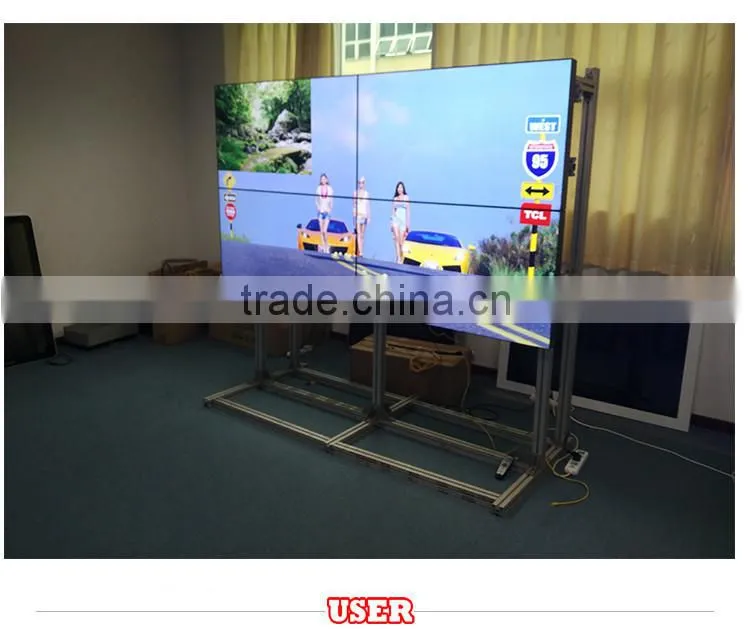

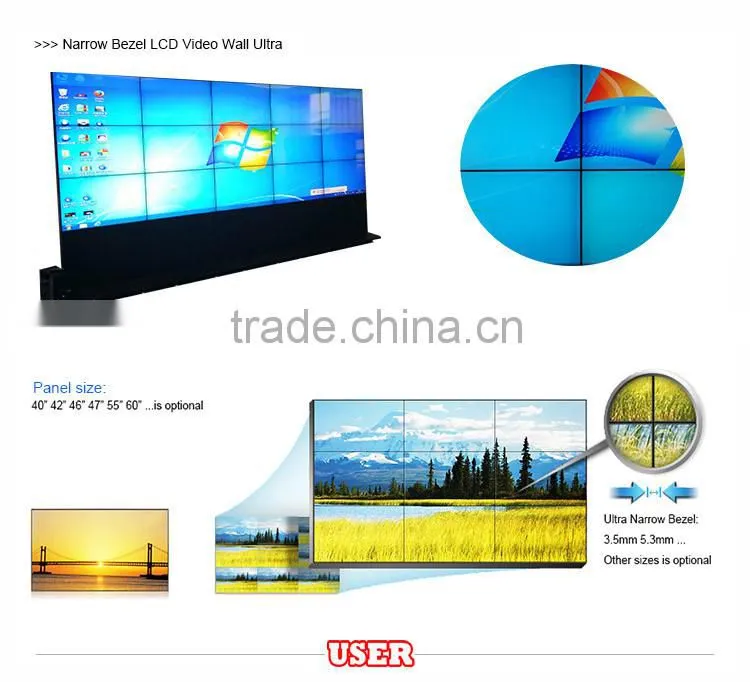

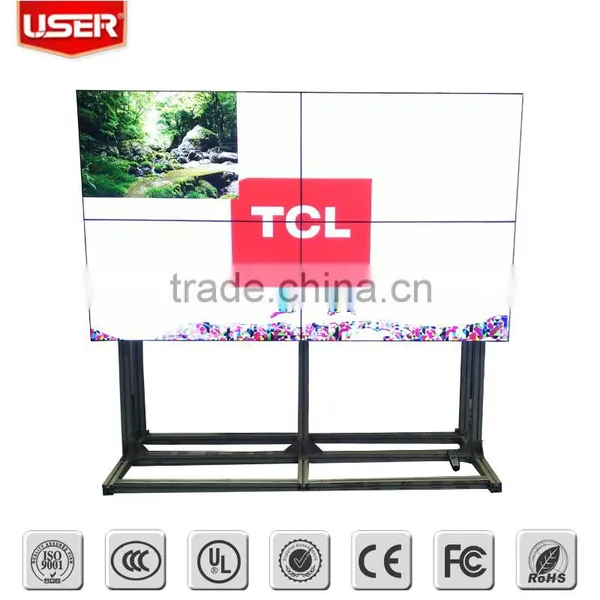

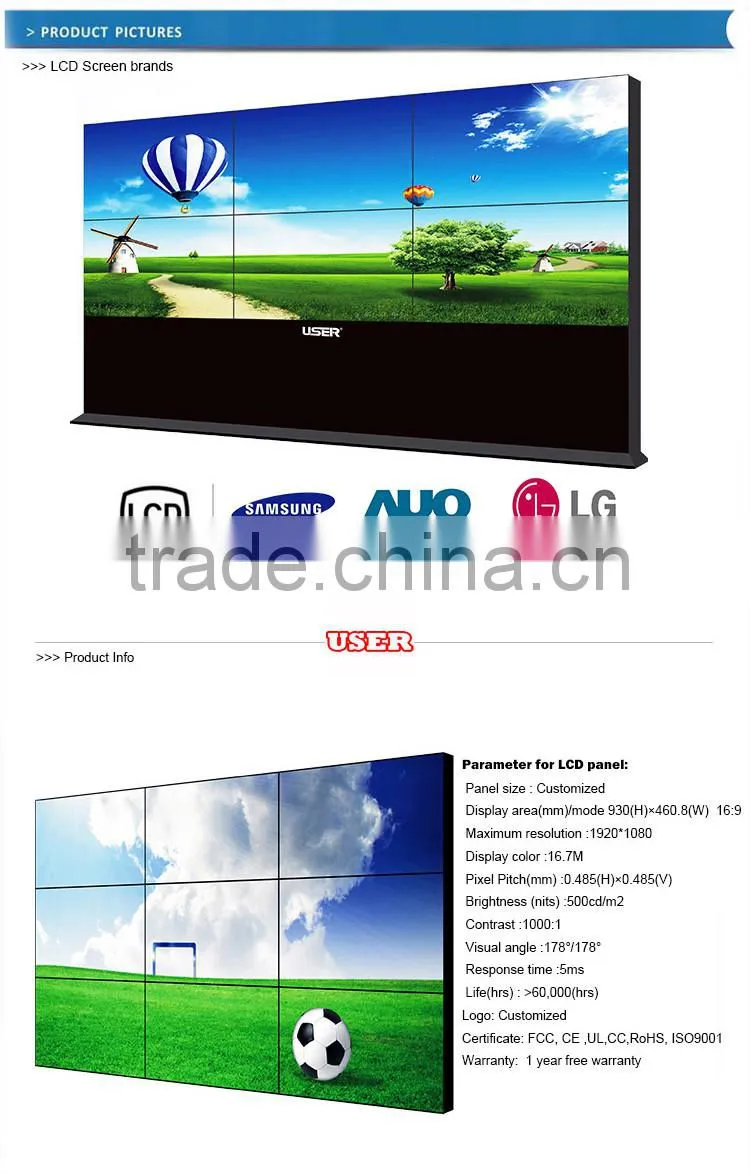

Large size 46 inch HD TFT LCD video wall
Click the next picture to learn popular products.
|
|
|
|
|
|
| Features | ||||||||||
| 1, Support USB playback picture,audio and video files, support file format:JPG,BMP,MPEG1,2,3,4,RMVB,MP3,etc. 2, Boot screen can be user-defined, with lock function, key functions can be shielded by remote controller. 3, Can connect external projector equipment to achieve mirroring function. Can connect with external PC with VGA, HDMI and other access methods. 4, Automatic standby power saving function. Under no operation can automatically turn off the TV within a few minutes,to achieve energy-saving. | ||||||||||
| Specifications | ||||||||||
| Model No. | US-PJ046 | |||||||||
| Panel size | 46"TFT-LCD | |||||||||
| Display area(mm)/mode | 16:9 1805.76(H) x 1015.74(V)MM | |||||||||
| Maximum resolution | 1920×1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.807(H)×0.807(V) | |||||||||
| Brightness (nits) | 400cd/m2 | |||||||||
| Contrast | 1600:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Backlight | LED | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| RF input | 1 | |||||||||
| HDMI input | 3 | |||||||||
| D-15 pin RGB input(VGA) | 1 | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1 | |||||||||
| S-video-Y/C input | 1 | |||||||||
| AV | 1 | |||||||||
| TV | 2 | |||||||||
| USB | 2 | |||||||||
| Headphone | 1 | |||||||||
| L/R audio input | 1 RCA X2 | |||||||||
| Audio System | ||||||||||
| Speaker | 4×10W(8Ω) | |||||||||
| Sound mode | Standard | |||||||||
| Video | ||||||||||
| Color system | PAL/SECAM | |||||||||
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <=280W | |||||||||
| Standby power consumption | <= 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -10°C~60°C | |||||||||
| Working humidity | 20%~80% | |||||||||
| Storage humidity | 5~95% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 1660mm×982mm×157.5mm(for reference) | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Aluminum/Metal | |||||||||
| Net weight | 78kg | |||||||||
| Installation | wall-mounted/floor standing | |||||||||
| Sample Leading time | 10-12 working days | |||||||||
| Bulk Order Leading time | 10-12 working days | |||||||||
| Payment Terms | T/T / Western union | |||||||||
| Warranty | 1year | |||||||||
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising ) full report >>
8, Warranty (1-3 year)
