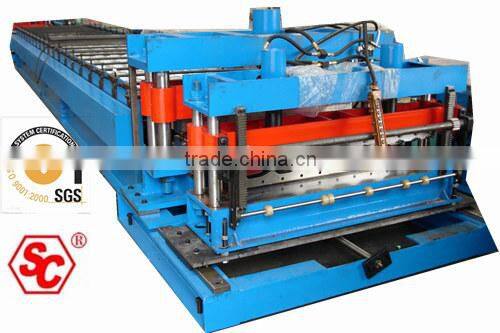

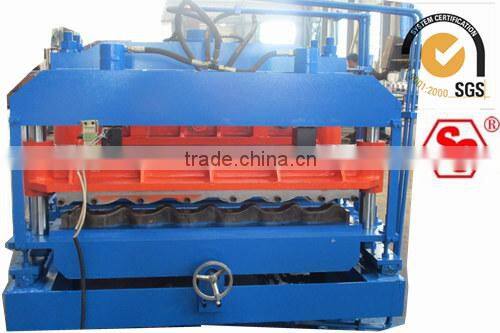

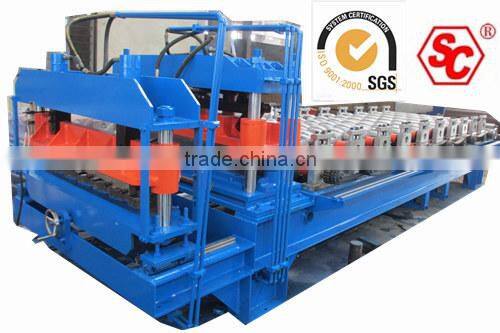

C14 Russia wall panel roll forming machine

FOB Price

USD $60,000 - $70,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	sc
Model Number	1100		After-sales Service Provided	Engineers available to service machinery overseas

C14 Russia wall panel Roll Forming Machine

Feature

1. Professional designing for manufactures roofing & walling

2. Automatically continually manufactures high quality product with PLC.

3. Easy operation : Directly input the data on the touchable screen.

4. Customers decide the profile of products.

5. Saving time and cost owing to high speed running with hydraulic system.

Technical Parameter

1.Main Technical parameter

Material specificationsmm	1000mmx(0.35-0.7mm)
Working speed	10~12M/min
Roller station	32stands
Main motor power	30kW
Hydraulic station motor power	5kW
Material of roller	NO.45 steel with hard chrome plating
Main axis material	NO.45 steel with treatment
Diameter of main axis	φ85mm
Hydraulic station pressure	10~12 Mpa
Shear Material	Cr12 quenching
PLC control	length tolerance≤2mm

2.Components

Flow Chart
