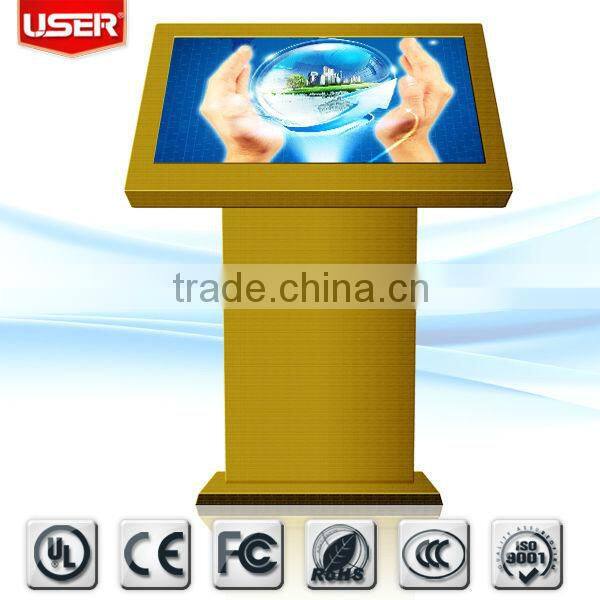

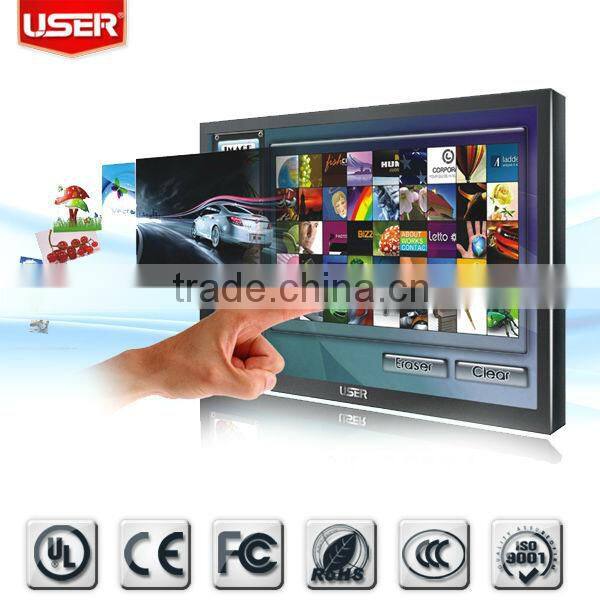

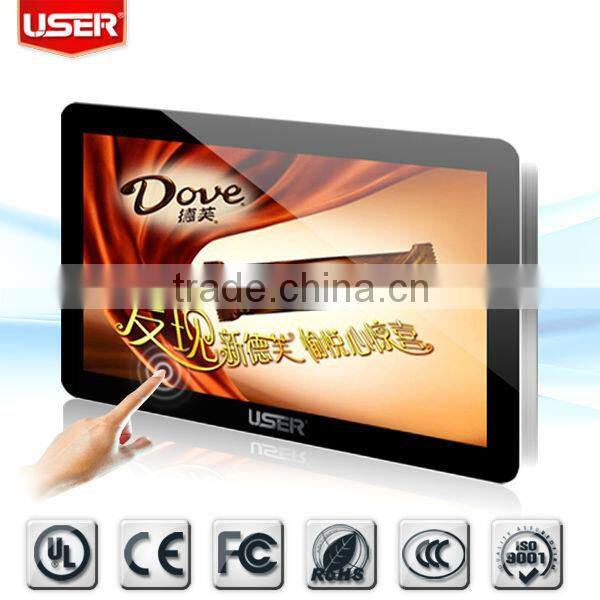

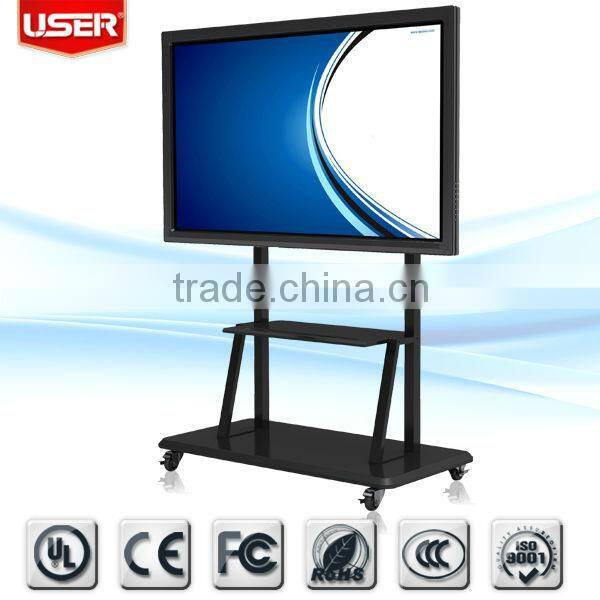

55'' Touch Screen All-in-one PC Monitor

Name: 55'' Touch Screen All-in-one PC Monitor
Brand: USER/OEM
SKU: 103443463
Availability: InStock

US$ 1 - 5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER/OEM

Model Number:

US-TH5502WP

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER/OEM

Model Number US-TH5502WP

Type TFT

Application Indoor

Panel Size 55''

Max Resolution 1920*1080

Viewing Angle 178/178

Pixel Pitch 0.51mm

Color 16.7M

Contrast Ratio 4000:1

Brightness 500nits

Response Time 5ms

Input Voltage 280W

Our All-in-one touchscreen PC monitor = Laptop+Big Screen Monitor+Touchscreen+White board+Project+TV+Audio System

Why not make it simple?

Specifications
Panel size	55" TFT-LCD
Display area(mm)/mode	1209.6x 680.4mm 16:9
Maximum resolution	1920×1080
Display color	16.7M
Pixel Pitch(mm)	0.51(H)×0.51(V)
Brightness (nits)	500nits
Contrast	6000:1
Visual angle	178°/178°
Response time	8ms
Horizontal frequency	50-70KHZ
Vertical frequency	56-75KHZ
Life(hrs)	60,000(hrs)
Touch Panel
Specification	Infrared touch
Positioning accuracy	±2mms
Transmittance	≥92%
Hardness	7H
Click manner	double point/mult-point(optional)
Response time	10ms
Output Resolution	8192*8192
Life time	Single point of more than 600 million times
Input and output
VGA input	2
CVBS input	2
YPbPr input	1
TV	1
HDMI	4
USB2.0	6
LAN	1
PC Audio	1
Audio(L/R) input	1
Audio(L/R) output	1
Speaker	2×10W(8 ohm)
Video
Color system	PAL/NTSC/SECAM
Compatible HDMI input/DVI	480P,576P,720P,1080I,1080P
3D Comb filter	Yes
Video reduction noise	Yes
OSD display( screen menu display)
Menu language	Chinese/English
Computer
Main chipset	Intel H61
CPU	Intel I3-2100 3.1G
System bus frequency	800/1066/1333 MHz
Graphics card	Integrated
Audio card	Integrated AC97
Network card	Integrated 10/100/1000M adaptive
Memory	2G DDRIII (max 4G)
Hard Disk	320G SATA
WIFI	Optional
Bluetooth	Optional
Operation system	Windows 7
Power
Power supply	AC100V~240V,50/60Hz
Maximum power consumption	280W
Standby power consumption	3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-10°C~60°C
Working humidity	20%~80%
Storage humidity	5%~95%
