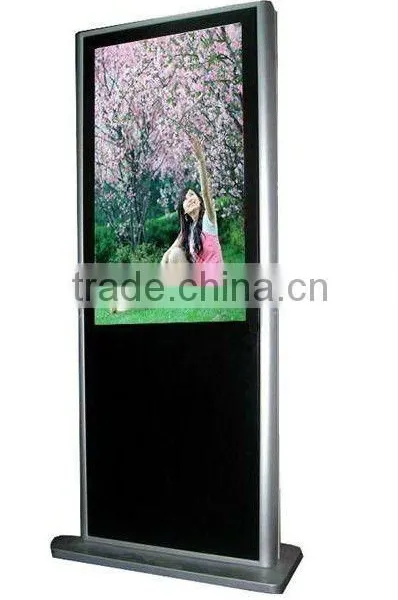

42 inch Network LCD advertising machine

Specifications

* LCD advertising machine
* CE, Rohs, FCC, UL approval
* CF/SD/USB, WIFI, 3G
* Floor-standing
* Warranty:1year

Product name: 42 inch Network LCD advertising machine



Product features

1.With DMP, the 4G Digital Multimedia Processor technology;
2.With super visual effects;
3. Ultra-high-fidelity sound,Stereo effect;
4. -Ultra-thin metal case, nice appearance;
- Industrial-grade fine baking varnish surface,well-distributed;
- Waterproof,rustproof,dirtproof and abrasion-proof;
5. With complete and reliable software function;
6. Anti-theft function
7. Widely used in the bus, building and lift room, supermarket, pubic places, train etc
8. Support WIFI function

Model No.     US-AD420NF
Panel size     42″TFT-LCD
Display area(mm)/mode     930(W)×523(H)  16:9
Maximum resolution     1920*1080
Display color     16.7M
Pixel Pitch(mm)     0.48(H)×0.48(V)
Brightness (nits)     500cd/m2
Contrast       1000:1
Visual angle      178°/178°
Response time     5ms
Life(hrs)     >60,000(hrs)
Input and output
Composite video input     Optional
Y,Pb,Pr/Y,Cb,Cr input     Optional
S-video     Optional
HDMI     Optional
Composite video loop output     Optional
L/R audio input     Optional
L/R audio output     Optional
Speaker     2×5W(9Ω)
Video
Color system     PAL/NTSC/SECAM
Remote controller     Special
Ads input interfaces
USB     1 ( For 3G Wi-Fi)
RJ45     Network Interface
CF     1 (Built-in 4G CF card)
OSD display( screen menu display)
Menu language     Chinese/English( multiple language optional)
Power
Power supply     AC100~240V 50 /60 HZ
Maximum power consumption     ≤ 220W
Standby power consumption     <5W
Temperature
Working temperature     0°C~50°C
Storage temperature     -20°C~60°C
Working humidity     85%
Storage humidity     85%
Appearance
Panel color/appearance     White, black, customized
Panel material      Metal case SPCC
Installation     Floor-standing
Detailed functions
Video format     MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio format     Wave/MP3/WMA/AAC
Image format     JPEG/BMP/TIFF/PNG/GIF
Image resolution     480P/720P/1080P
Split screen display     Editable
Running subtitle     location, word size, color and backlight are editable
