Micro Brewing/beer Brew Equipment,mini Beer Brewing Equipment,home Beer Brewing Equipment,microbrewery Pub Brewery Equipments

Specifications

  mini beer brewing equipment,home beer brewing equipment,microbrewery pub brewery equipments

Beer Brewing Equipment 1000l /micro brewing equipment/beer brewing system

brewery equipment for business /stainless steel beer brewing equipment/brewery equipment/brewery equipment

automatic beer brewing equipment for brewhouse

beer brewing equipment from china

micro beer brewery equipment/microbrewery equipment/micro beer equipment/beer brewery machine   beer brewing equipment from china for small business

automatic beer brewery equipment

 1.Capacity:50L-3000L

 2.Usage:for pub,brewery,hotel

 3.Materials:SUS304,red copper

 4.Control:PLC

Company profile

 1. Jinan Haolu M&E Co.,Ltd is a Professional beer production technology and brewing formular supplier.

2. Professional designers try to meet any of your requirements.

3. One-stop service from layout design, manufacture to finished products.

4.  Main business: beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, etc.

5. Main capacity: 100L/D, 200L/D, 300L/D, 500L/D, 1000L/D, 2000L/D, 3000L/D, etc.

6. Quality: CE2000 and ISO9001 certificate.

Service and trade terms

1. Providing beer product technology, brewing formular, personnel training service, installation and debugging,

2. 36 months warranty for main machine and 12 months for auxiliary machine.

3. Offer validity: the offer will be valid in 30 days.

4. Trade terms: FOB/CIF/CFR.

5. Payment terms: T/T, L/C, Moneygram.

6. Shipment method: by sea or by air based on your requirement.

7. Stock up period: within 35 days based on the capacity of equipment.

8. Conditions of payment: 30%, advance payment after signing the contract; 70%, after preparation of the equipment for shipment/ 3 days before  shipment.

Consisting systems of beer brewery machinery

--Milling system

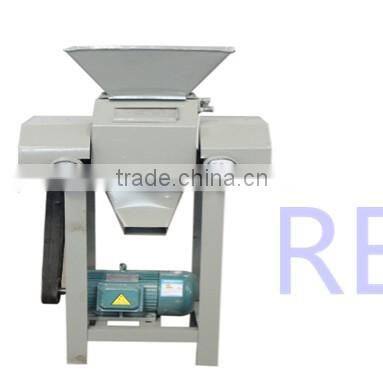

01. mill machine(1 pc): Breaker roll type, adjustable mill degree.

--Mashing system

01. components: mash&lauter tank, boiling and whirlpol tank, mill machine, wort pump, plate heat exchanger, saccharification combination pipeline, pipeline & valve VLV, wort measuring meter, venturi tubes, measuring cylnder, titanium rod, rake and operation platform.

02. Material: Inner(SUS304), thickness: 3.0mm;

03. External-Jacket (stainless stell), thickness: 1.5mm.

04. Cylinder(sharp type, SUS), thickness: 2.0mm;

05. Inner surface teatment: welds grinded to Ra0.6um;

06. Insulation: Polyurethane-thickness 80mm.

07. Adding: Blender.

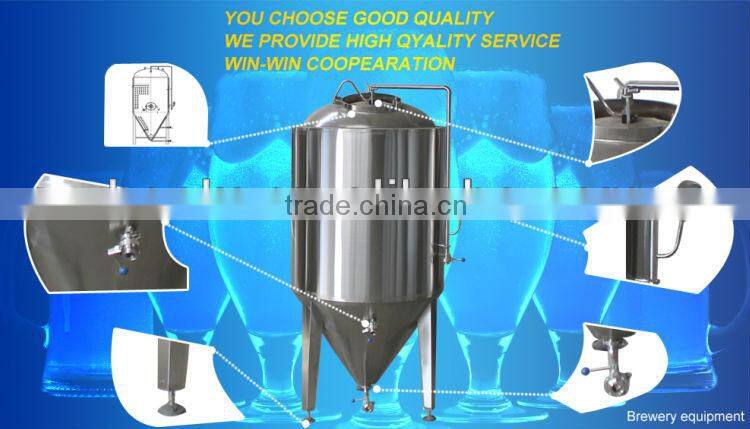

--fermentation system

ponents: fermentation tank, bright beer tank, yeast adding tank, food tube, refrigerant pipelines(keep warm tube), electrionic gauges, valve pipe fittings, electromagnetic put air out.

02. Material: Inner(SUS304)thickness: 3.0mm;

03. External-Jacket(SUS304)thickness: 1.5mm

04. Oval hea cone bottom, thickness; 2.0 mm;

05. Inner surface treatment: welds grinded to Ra 0.4um(attached Omni cleaning ball);

06. Mirror surface finish inside.

07. Insulation: Polyurethane-thickness 70mm.

08. Equip with: cone 60 degree resist compression design, dripping temperature drop.

09. Heat exchange area: 0.1sq.m;

10. Cleaning system: all-round cleaning.

11. Control meathod: temperature control, voltage-control and hand automatic control;

12. Weld slinging band, width 40mm;

13. Valve pipe fittings supporting, single tank single control;

14. Maitreya plate cooling jacket;

15. Bladder mechanical polishing, outer panel protection, weld slinging band.

 --Cooling System

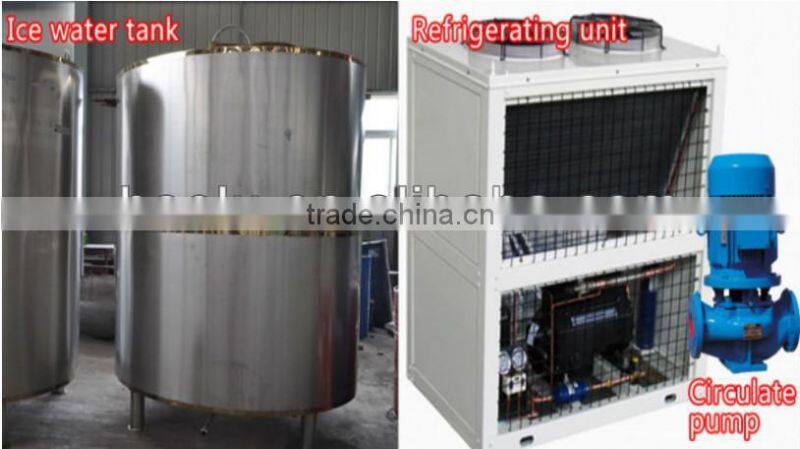

01. components: ice water tank, refrigerating unit, circulate pump, pipeline&valves;

02. Material: Inner(SUS304), thickness: 2.5mm;

03. External-Jacket(stainless steel);

04. Insulation: Polyurethane-thickness 80mm;

05. Refrigerating unit, capacity: 9000 kilocalorie; medium: Freon 22; working voltage: 380v; Power: 2.5kw;

06. Circulate pump, flow: 3 sq.m/h; lift: 20m; power: 0.15kw;

07. Pipeline & valves: Include valves and pipeline.

--Control System

01. Mashing control: mixing, rotation, wort pump;

02. Fermenting control: temperature, pressure, lamp;

03. Cooling control: machine unit, pump, temperature;

04. Cleaning control: cleaning pump.

05. Manual operate, Instrument, Semi-Auto-control, SS jacket

-- CIP System

01. washing pump: 1000l/h, SS anticorrosion pump. Lift: 18m. Rev: 2880 r/min.

02. alkali tank, capacity: 50L;

03. Sterilization tank, capacity: 50L;

04. Stainless steel, thickness: 2mm;

05. Inner surface treatment; welds grinded to Ra 0.6um

welcome to contact with us:
