Home > Products > Industrial LCD Monitor > 26" Metal frame industrial TFT LCD monitor advertising monitor

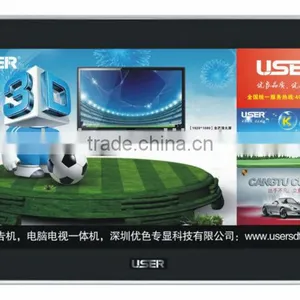

26" Metal frame industrial TFT LCD monitor advertising monitor
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
| Products Status: | Stock | Application: | Other, Desktop or Wall-mounted | Screen Size: | Other, 26" |
| Response Time: | 5ms | Brightness: | 500cd/m | Interface Type: | D-Sub, DVB, DVI, HDMI, RS232C, S-Video, TV-out, YPBPR |
| Contrast Ratio: | 800:1 | Resolution: | 1366 x 768 | Widescreen: | Yes |
| Panel Type: | TFT | Pixel Pitch: | 0.1405*0.4215 | Brand Name: | USER |
| Model Number: | US-M2601P | Place of Origin: | Guangdong, China |
Product Description
26" Metal frame industrial TFT LCD monitor advertising monitor
Features:
1.Ultra-silm design ,convenient use ,delicate appearance.
2.Industrial A+ grade LCD panle.
3.Auto eliminate blur function,long life span.
4.Auto adjust the VGA image reproduction rate.
5.Quick response time,no trailing effect.
6.Multi data-image adjustment circuit,low image distortion.
7.Wide visual angel 178 degree,aspect ratio 16:9.
8.Intelligence temperature control fan design,green and quiet.
9.High contrast,high brightness,vivid image layout ,best details display.
10.Intensive the IR receiver,support the IR remote to modify the monitor parameters.
11.Build-in stable power,low consumption,long life span>60000hrs.
12.Appling the latest 3D digital image decode chipset,the latest DNR,image clear,clean and vivid.
13.Wide voltage range,AC110-240V,Industrial grade design,can be used in the harsh environments!
Specification:
| Model No. | US-M2601P | |||||||||
| Panel size | 26" TFT-LCD | |||||||||
| Display area(mm)/mode | 575.6(W)×325.6(H) 16:9 | |||||||||
| Maximum resolution | 1366×768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.1405(H)×0.4215(V) | |||||||||
| Brightness (nits) | 500nits | |||||||||
| Contrast | '1500:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YPbPr input | 1 (BNC×3) | |||||||||
| S-video-Y/C input | 2 (BNCx2) | |||||||||
| VGA | 1 | |||||||||
| HDMI | 1 | |||||||||
| DVI | 1 | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <80W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%~90% | |||||||||
| Storage humidity | 10%~90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 639.6×393.0×110mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 15kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||

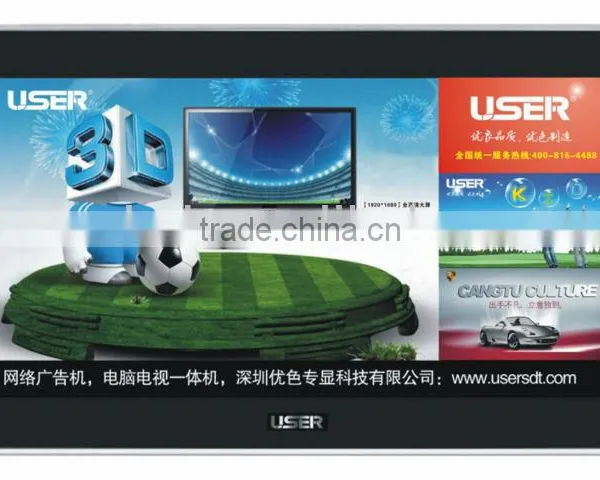

Product details show:
Application Case :
Package:
We provide servise:
1. Customized requirment is available , OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Certificate:
Office:
Factory:
Note: LCD monitor 5″-82 ″Various Size available.We also provide CCTV LCD monitor,Industrial LCD monitor,Broadcast LCD monitor,medical LCD monitor,Touch screen LCD monitor,Multimedia kiosk,Large size high definition data LCD display ,LCD video wall,video wall processor and so on. Any inquires are warmly welcome!
