Home > Products > CCTV LCD Monitor( Economic) > medical display

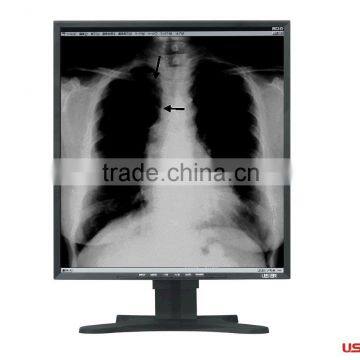

medical display
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Desktop | |
| Screen Size | Other, 21" | Response Time | 8ms | |
| Brightness | 450cd/m | Interface Type | DVI | |
| Contrast Ratio | 800:1 | Resolution | 2048 x 1152 | |
| Widescreen | Yes | Panel Type | TFT | |
| Pixel Pitch | 0.2115 | Brand Name | USER | |
| Model Number | US-MA2103 | Place of Origin | Guangdong, China |
Product Description
Specifications
Built-in DISOM mode selectionMore Gamma Curve adjustment
Grayscale(Grayscale) management
DISCOM GSDF
| Specification model | US-MA213(21.3'' 5MP LCD monitor ,medical grade, DICOM COMPLIANCE) | |||||||||
| Panel size | 21.3″active display | |||||||||
| Active Display Area | 422(H) X 338 (V) mm | |||||||||
| Supported Greyscale | 3061 | |||||||||
| Native resolution | 2560x2048 | |||||||||
| Pixel Pitch(mm) | 0.165x0.165 | |||||||||
| Viewing angle | 170° V/H @contrast ratio>10 | |||||||||
| Brightness | 750cd/m2 Type | |||||||||
| Contrast ratio | 600:1 Type | |||||||||
| Response time | 25ms Type | |||||||||
| Video Inputs | ||||||||||
| Digtital signal | DVI standard | |||||||||
| External connections | ||||||||||
| DC input connector | Male pin receptacle | |||||||||
| Digtal input | 24pin DVI-D | |||||||||
| Resolution | ||||||||||
| 2560x2048(Landscape) | ||||||||||
| 2048x2560(Portrait) | ||||||||||
| Physical specifications | ||||||||||
| Dimensions | 397(W)X485(H)X86(D) mm( without stand) | |||||||||
| 397(w)x510~610(H)X186(D)mm(with stand) | ||||||||||
| Weight | 9kg (without stand) | |||||||||
| 12kg( with stand) | ||||||||||
| Stand mounting | VESA compatible(100mm spacing) | |||||||||
| Power supply | DC12V | |||||||||
| Power consumption | 80W max | |||||||||
| Power saving | EPA,VESA compliant | |||||||||
| Operating temperature | 0°C to 40°C | |||||||||
| Storage temperature | -20°C to 60°C | |||||||||
| Relative humidity | 10% to 90%, no consendation | |||||||||
| MTBF | >50,000 hours | |||||||||
