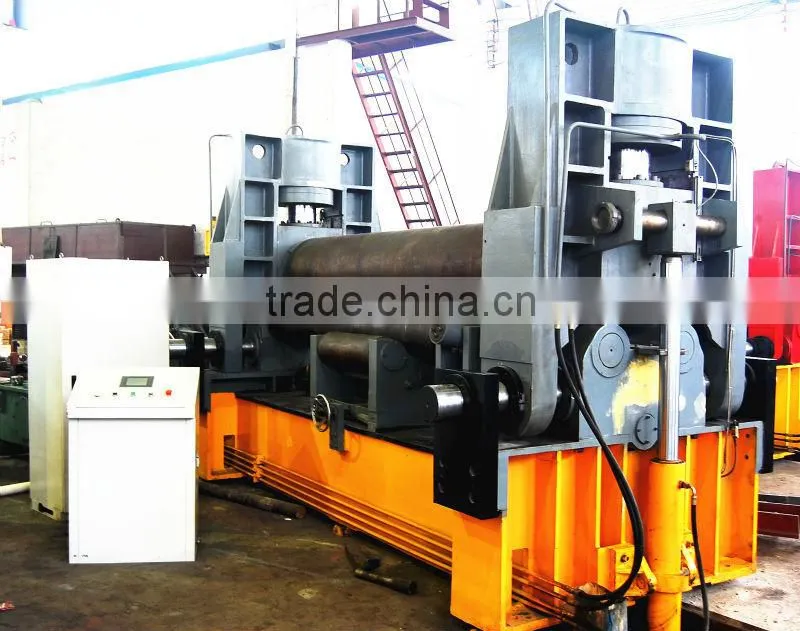

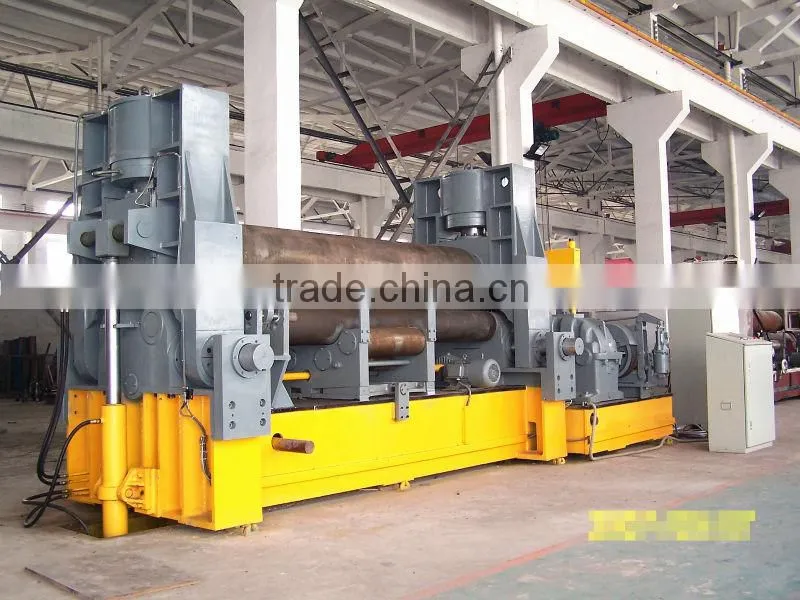

Mechanical level down 3 roller rolling machine Struct function
The top roller can move horizontally and lift, the top roller lift for changing curvature of plate, horizontal move for symmetry of top roller and two bottom rollers axes line vertical surface, realize technics requirement of plate end bend and other bend, there is no need of pressure machine in manufacture. The machine can finish two end of plate pre-bend and shape and straighten at the same time without return. IT is the NC machine.
Feature and advantage:
High precision end pre-bending
Setting length of vertical side freely,add press on upper roller for pre-bending,finishing high precision pre-bending.
High precision work piece
Upper roller is drum type,bottom rollers balance for cooperating adjustment,continual bend,which is used for sheet and thick plate.
Various bend shape
It can roll O,U,R type work piece and stated taper through assistant taper device.O type bend:back bend method;U type bend:front bend method;R bend:Combinations bend method
Technical parameter:
Specification |
SW11SNC-40X3200 |
|
Max plate Thickness (mm) |
40 |
|
Max Pre-Bending thickness (mm) |
32 |
|
Max plate Width (mm) |
3200 |
|
Upper roller pressure (ton) |
450 |
|
Min diameter of Max plate Thickness (mm) |
1600 |
|
Upper Roller Diameter (mm) |
560 |
|
Bottom roller diameter (mm) |
290 |
|
Two Bottom rollers center space (mm) |
500 |
|
Motor power (KW) |
Roller rotate |
55 |
Hydraulic system |
15 |
|
Bottom roller move |
5.5 |
|
Weight (ton) |
24 |
|
Dimension L*W*H (mm) |
6900x2450x2900 |
|
Hydraulic Rolling Machine SW11SNC series Technical parameter
