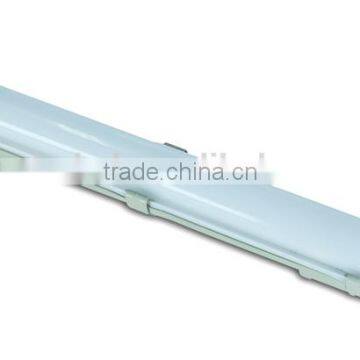

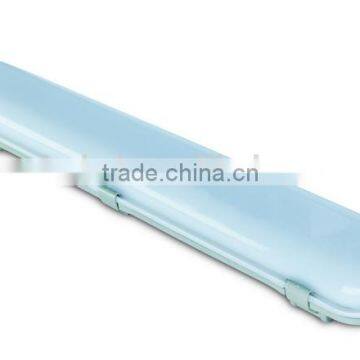

Help Center15W 600mm Tri-Proof LED Tube _O
Related Products
Factory, Super Market, Restaurant, School, Parking Pot, Tunnel, Bus Station, Subway Corridor, Garage, Warehouse
- Area light source: Anti-glare, softer, more uniform light than conventional products
- Integral heat dissipation structure: #3003 aluminum alloy reflector, anodized surface treatment; thermal conductivity>190W/M.K
- Compact, less weight, IP65;
- No flash, no glare, noiseless, providing a comfortable lighting environment for you, better than conventional tri-proof light
- Lifespan >35000 hours, low maintenance cost, low carbon emission, energy saving
- Injected shaping with stiffener rib, opaque anti-UV PC with natural Silicone rubber seal, easy to install and maintain
- Enclosed buckles on both sides, by which the cover is still connected with the lamp even if the cover happens to open, easy to open the buckles at the bottom by hand
Tri-Proof Tube | |||||||||||
Model |
Watts(W) |
LED |
Input Voltage(V) |
Luminous Flux(lm) |
Color Temperature(K) |
CRI |
PF(AC 220V) |
Dimension(mm) |
Weight (kg) |
Material |
Lifespan(h) |
CD-TP0601-7C/N/WD1 |
7 |
SMD 2835 |
AC 176-240 |
>560 |
2700-6500 |
>80 |
>0.8 |
653*83*80 |
0.79 |
PC |
>35000 |
CD-TP0602-15C/N/WD1 |
15 |
SMD 2835 |
AC 176-240 |
>1200 |
2700-6500 |
>80 |
>0.8 |
653*128*80 |
1.00 |
PC |
>35000 |
CD-TP1201-15C/N/WD1 |
15 |
SMD 2835 |
AC 176-240 |
>1200 |
2700-6500 |
>80 |
>0.8 |
1263*83*80 |
1.38 |
PC |
>35000 |
CD-TP1202-30C/N/WD1 |
30 |
SMD 2835 |
AC 176-240 |
>2400 |
2700-6500 |
>80 |
>0.8 |
1263*128*80 |
2.00 |
PC |
>35000 |
Remark: All the above tested data deviation:±10% . | |||||||||||
| Basic Info | Items | Tri-Proof Tube | Tri-Proof Tube | Tri-Proof Tube | Tri-Proof Tube |
| Model | CD-TP0601-7C/N/WD1 | CD-TP0602-15C/N/WD1 | CD-TP1201-15C/N/WD1 | CD-TP1202-30C/N/WD1 | |
| Aspect | Material | PC | PC | PC | PC |
| Body Color | White | White | White | White | |
| Dimension | L653*W83*H80 | L653*W83*H80 | L1263*W83*H80 | L1263*W83*H80 | |
| Electrical | Watts(W) | 7 | 15 | 15 | 30 |
| Input Voltage(V) | AC 176~240 | AC 176~240 | AC 176~240 | AC 176~240 | |
| Frequency | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | |
| Power Mode | Internal | Internal | Internal | Internal | |
| Power Factor | >0.8 | >0.8 | >0.8 | >0.8 | |
| Power Efficiency | >85% | >85% | >85% | >85% | |
| Optical | LED Brand | Jingke/Hongli | Jingke/Hongli | Jingke/Hongli | Jingke/Hongli |
| LED Type | 2835 | 2835 | 2835 | 2835 | |
| LED Qty.(pcs) | 36 | 72 | 72 | 144 | |
| Luminous Flux(lm) | 560 | 1200 | 1200 | 2400 | |
| CCT(K) | 2700~6500 | 2700~6500 | 2700~6500 | 2700~6500 | |
| Light Color | Cold,Natural,Warm | Cold,Natural,Warm | Cold,Natural,Warm | Cold,Natural,Warm | |
| CRI(Ra) | >80 | >80 | >80 | >80 | |
| Beam Angle(°) | 125° | 125° | 125° | 125° | |
| Dimmable | Unavailable | Unavailable | Unavailable | Unavailable | |
| Application | Mounting Size(mm) | / | / | / | / |
| Socket | / | / | / | / | |
| Install Mode | Ceiling Mounted | Ceiling Mounted | Ceiling Mounted | Ceiling Mounted | |
| Operation Temperature(℃) | -30℃~50℃ | -30℃~50℃ | -30℃~50℃ | -30℃~50℃ | |
| Operation Hummidity(RH) | / | / | / | / | |
| Storage Temperatures(℃) | -40°~80° | -40°~80° | -40°~80° | -40°~80° | |
| Lifetime(hrs) | >35000 | >35000 | >35000 | >35000 | |
| Protection | Ingress Proctection | IP65 | IP65 | IP65 | IP65 |
| Waterproof | Availbale | Availbale | Availbale | Availbale |
Power Consumption Contrasts | ||||||||
Item |
Cedar LED Tri-proof Light |
Conventional Tri-proof Light (Fluorescent) |
||||||
Watts(W) |
7 |
15 |
15 |
30 |
14 |
28 |
28 |
56 |
Lifespan(h) |
35000 |
35000 |
35000 |
35000 |
6000-8000 |
6000-8000 |
6000-8000 |
6000-8000 |
Power Consumption/Year(KWH) |
61.32 |
131.40 |
131.40 |
262.80 |
122.64 |
245.28 |
245.28 |
490.56 |
Remark: The above data was calculated by lamps lit 7*24. |
||||||||
