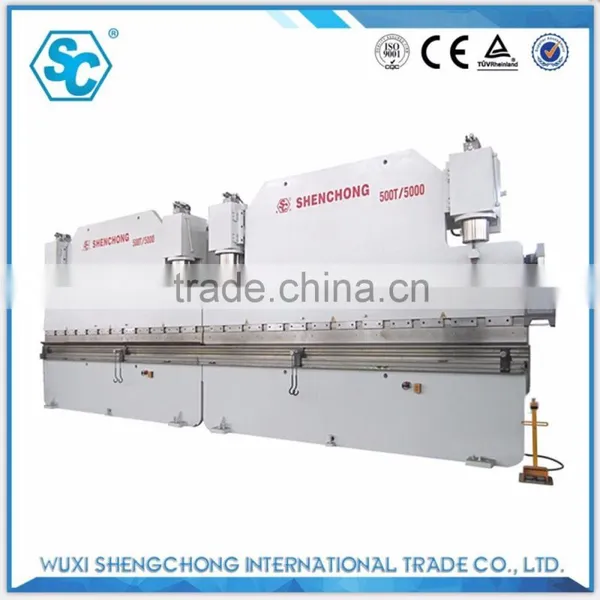

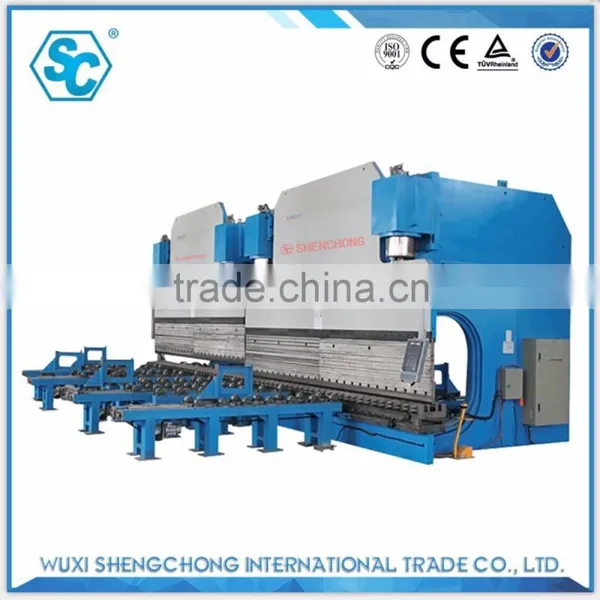

Tandem CNC Hydraulic Press Brake 2-WE67K Series for Iron Box

• Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder.
• Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
• Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style quick release punch holder with an adjustable wedge clamping system for crowning.
• Intermediate clamp has safety key to stop punch dropping.
• Multi vee ('V') bottom die is made from one 3200mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
• Conveniently mounted control box on pendant for quick swivel and adjustments.
• Mono-block steel frame design, welded then machined to ensure minimal bed deflection under load
• Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
• European quick release style top punch and clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.
• Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed, sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
• Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point.
• Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.
• Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety.
• Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation. SHENCHONG specially design gates to suit Australian safety requirements.
• Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.
• Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
• The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.
• Reinforced side frames providing addition support strength to machine throat.

Includes

• Swivel pendant control unit operated by NC-89 Go-To controller “X” & “Y” Axis
• Sliding front sheet support arms
• Emergency stop buttons conveniently located on control panel and foot control
• Mobile dual operation foot control
• Segmented 86° offset top punch
• Solid one piece four way multi vee (V) die block
• Quick action top punch tool holder system with wedge type adjustment
• Powered operated leadscrew backgauge with 600mm travel, operated by NC-89 Go-To controller
• Oil tank level indicator
• Metal constructed safety guarding surrounding machine with clear side viewing panels
• Integrated hydraulic system allowing rapid approach switching automatically to slow bend

parameters:

 1.Our advantage

Shen Chong (SC) is a mature brand in CHINA, after more than 20 years’ research, our design from technology, structure, security and precision has enhanced greatly. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

2.Certification

3.Exhibition

we attend exhibitions to other countries every year. Like  Australian, India, Mexico,Russia,Pakistan,etc.

      Sheng Chong Machine is a high-tech enterprise integrated by R&D, production and after-sale service in CNC hydraulic forging Machine.

      Our factory occupies more than 30,000 m2, it has excellent and professional technical team, 10 R&D personnel with strong developing capability; around 200 workers producing more than 800 sets machines each year, and professional after-sales team to solve various problems which the customer may encounter in using the machine. With new design, fine technology, we get a good evaluation and brand effect in Beijing Machine tool Show, Italy Milan machine tool exhibition, Australia machinery exhibition etc.

     Our main products contain QC11K series CNC guillotine cutting machine, QC11Y series hydraulic shearing machine, QC11YK series fast hydraulic shearing machine for metal plate, QC12K series NC hydraulic swing beam shear machine,QC12Y series hydraulic swing beam cutting machine; WC67Y series hydraulic press brake, WC67K series CNC hydraulic bending machine,WE67K series CNC electro-hydraulic synchronization press brake; SW11C series 3 roller rolling machine, W12NC series 4 rollers rolling machine for metal plate; Laser cutting machine, flame & plasma cutting machine; Automatic slitting machine line; Bending mould for press brake, blade for shearing machine etc.

     So far, our company has been serving more than thousands of customers in light industry, aviation, metallurgy, instrumentation, electrical, stainless steel products, construction and decoration and other industries.

1. Are you a trading company or factory?
  --- We are factory occupying more than 30,000 m2,  with excellent and professional technical team, 10 R&D personnel, professional after-sales team, and around 200 workers producing more than 800sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time the technical guidance and accessories are provided for free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.


These information is helpful for us to choose suitable equipment solution and price quickly.
