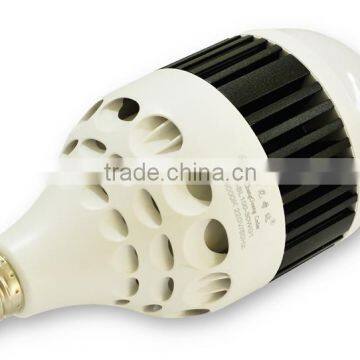

30w high power led bulb

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type

led bulb

Certification

CE ROHS EMC LVD

Product Description

Features

☆ Area light source: Anti-glare, softer, more uniform light than conventional products

☆ Integral heat dissipation structure: #3003 aluminum alloy reflector, anodized surface treatment; thermal conductivity＞190W/M.K

☆ Compact, less weight, IP65;

☆ No flash, no glare, noiseless, providing a comfortable lighting environment for you, better than conventional tri-proof light

☆ Lifespan >35000 hours, low maintenance cost, low carbon emission, energy saving

☆ Injected shaping with stiffener rib, opaque anti-UV PC with natural Silicone rubber seal, easy to install and maintain

☆ Enclosed buckles on both sides, by which the cover is still connected with the lamp even if the cover happens to open, easy to open the buckles at the bottom by hand

Applications

Factory, Super Market, Restaurant, School, Parking Pot, Tunnel, Bus Station, Subway Corridor, Garage, Warehouse

Parameters

Basic Info	Description	High Power Bulb	High Power Bulb	High Power Bulb
Basic Info	Model	CD-BL100-20	CD-BL100-30	CD-BL100-50
Aspect	Material	Aluminum+PC	Aluminum+PC	Aluminum+PC
	Body Color	Black	Black	Black
	Dimension	D100*H223	D100*H223	D100*H263
Electrical	Watts(W)	20	30	50
	Input Voltage(V)	AC 90～264	AC 90～264	AC 90～264
	Frequency	50～60Hz	50～60Hz	50～60Hz
	Power Mode	Internal	Internal	Internal
	Power Factor	＞0.9	＞0.9	＞0.9
	Power Efficiency	＞85%	＞86%	＞87%
Optical	LED Brand	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli
	LED Type	COB	COB	COB
	LED Qty.(pcs)	1pcs	1pcs	1pcs
	Luminous Flux(lm)	1800	2700	4500
	CCT(K)	2700～6500	2700～6500	2700～6500
	Light Color	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm
	CRI(Ra)	＞80	＞80	＞80
	Beam Angle(°)	150°	150°	150°
	Dimmable	Unavailable	Unavailable	Unavailable
Applications	Socket	E27	E27	E27
	Install Mode	Sockets	Sockets	Sockets
	Operation Temperature(℃)	-10℃～40℃	-10℃～40℃	-10℃～40℃
	Operation Hummidity(RH)	10%RH-90%RH	10%RH-90%RH	10%RH-90%RH
	Storage Temperatures(℃)	-40°～80°	-40°～80°	-40°～80°
	Lifetime(hrs)	＞35000	＞35000	＞35000
Protection	Ingress Proctection	IP20	IP20	IP20
	Energy Saving	60%	55%	50%
	Constrasted to	50W HPS	70W HPS	100W HPS
Packing	Unit Net Weight(Kg)	0.50	0.56	0.85
	Unit Gross Weight(Kg)	0.640	0.655	0.965
	Unit Packing(mm)	240105105	240105105	280105105
	Qty./Carton(pcs)	32	32	32
	Carton Size(mm)	500450500	435435500	430420580
	20FT Qty（）	220	260	210
