Home > Lights & Lighting > LED Interior Lighting > LED High Bay Light > 5w Recessed Down Light

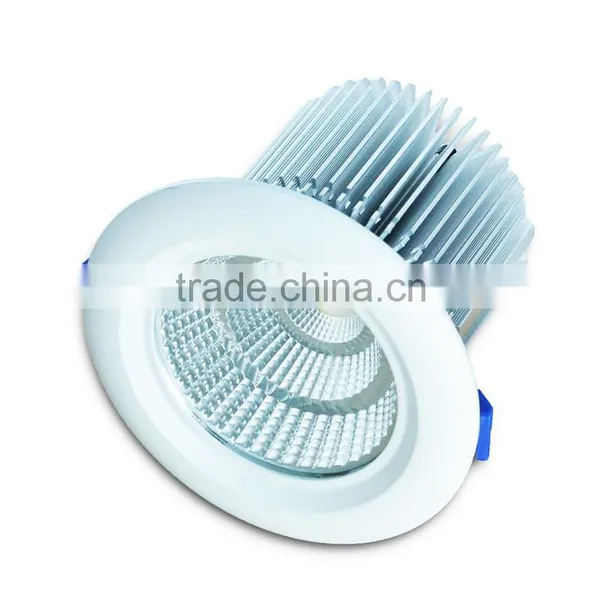

5w Recessed Down Light

5w Recessed Down Light thumbnail-1
5w Recessed Down Light photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
recessed down light
Certification:
CE ROHS EMC LVD
Contact Supplier Request Quote Chat Now
Changchun Cedar Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type recessed down light
Certification CE ROHS EMC LVD
Features

☆ LED Area Light Source: softer and more uniform light than conventional fluorescent lamps’, avoid glare;

☆ Simple heat dissipation structure, less weight, more reliable;

☆ Available with white coating and aluminum brushed processing, matching well with plaster tablet, aluminum gusset and other decorating materials;

☆ Available with buckle/recessed installation, and various installation structure of traditional lamps, easy to mount and maintain ;

☆ High protection level: Better than traditional fluorescent lamps, anti-fog, prevent flying insect in, avoid accumulated dust, easy to clean;

☆ Instant-on, quiet.

Applications

Mall, Hotel, Exhibition Hall, Office, Hotel, Hospital, Home, Entertainment Venues

Parameters

Basic Info
Description
Recessed Down Light

Model
CD-DL100-4W/N/CD0A6
CD-DL110-5W/N/CD0A6
CD-DL150-7W/N/CD0A6
CD-DL180-14W/N/CD0A6
CD-DL190-14W/N/CD0A6
CD-DL230-20W/N/CD0A6

Aspect
Material
Aluminum+PMMA
Body Color
Silver White
Dimension
D100*55
D110*55
D150*H65
D180*H95
D190*H70
D230*H100






Electrical
Watts(W)
4
5
7
13
13
20
Input Voltage(V)
AC 100～240
Frequency
50～60Hz
Power Mode
External
Power Factor
＞0.5
＞0.5
＞0.9
＞0.9
＞0.9
＞0.9
Power Efficiency
＞78%
＞78%
＞82%
＞87%
＞87%
＞88%






 Optical
LED Brand
Jingke/Hongli
Jingke/Hongli
Jingke/Hongli
Jingke/Hongli
Jingke/Hongli
Jingke/Hongli
LED Type
SMD 5630
SMD 5630
SMD 5630
SMD 5630
SMD 5630
SMD 5630
LED Qty.(pcs)
8
10
12
24
24
40
Luminous Flux(lm)
240
300
420
850
850
1500
CCT(K)
2700～6500
2700～6500
2700～6500
2700～6500
2700～6500
2700～6500
Light Color
Cold,Natural,Warm
Cold,Natural,Warm
Cold,Natural,Warm
Cold,Natural,Warm
Cold,Natural,Warm
Cold,Natural,Warm
CRI(Ra)
＞80
＞80
＞80
＞80
＞80
＞80
Beam Angle(°)
100°
100°
100°
100°
100°
100°
Dimmable
Unavailable
Unavailable
Unavailable
Unavailable
Unavailable
Unavailable







Application
Mounting Size(mm)
D70-95
D80-105
D100-135
D140-160
D160-185
D195-215
Install Mode
Recessed
Operation Temp(℃)
-10℃～40℃
Operation Hummidity(RH)

10%RH-90%RH
Storage Temp(℃)
-40°～80°
Lifetime
＞35000hrs

Protection
Ingress Proctection
IP20
IP20
IP20
IP20
IP20
IP20
Energy Saving
50%
50%
50%
50%
50%
50%
Constrasted to
1*8W Fluorescent Lamp
1*11W Fluorescent Lamp
1*13W Fluorescent Lamp
2*13W Fluorescent Lamp
2*13W Fluorescent Lamp
2*18W Fluorescent Lamp




Packing
Unit Net Weight(Kg)
0.10
0.12
0.22
0.34
0.40
0.71
Unit Gross Weight(Kg)
0.163
0.188
0.283
0.457
0.498
0.830
Unit Packing(mm)
135*67*135
135*67*135
165*72*165
205*117*205
210*82*210
250*117*250
Qty./Carton(pcs)
50
50
50
50
50
50
Carton Size(mm)
690*350*285
690*350*285
840*375*345
950*600*425
975*425*435
1175*600*515
20FT Qty（）
336
336
252
72
120
72
