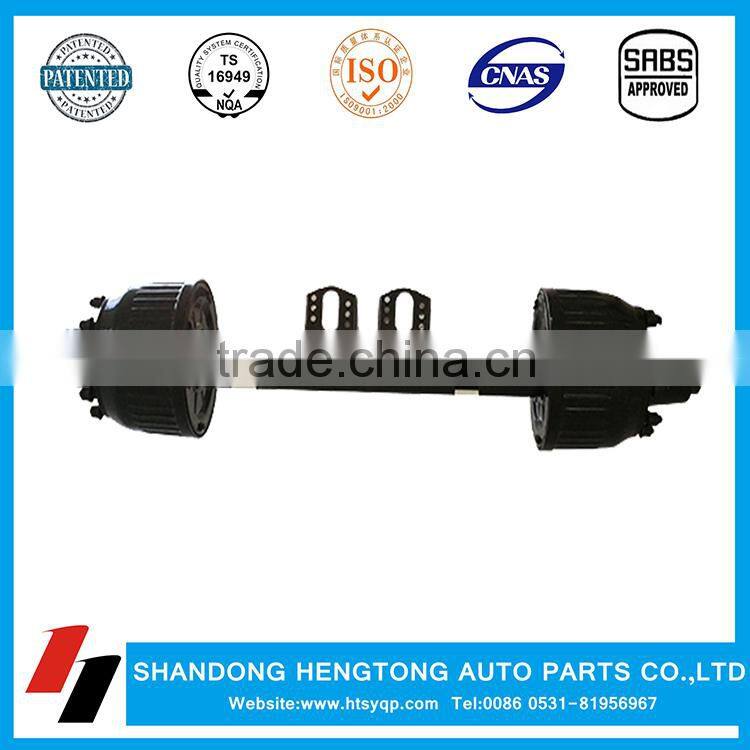

Semi trailer American and German truck parts axle series

  Semi trailer American and German truck parts axle assembly series

Specification:

1. Capacity: 13ton 14ton 16ton 20ton 25ton

2. Brake:420*220mm

3. Cenre distance of brake chamber:350mm

4. Axle tube: 150*150/Φ127

5. P.C.D:335

6. Track:1850mm

7.  Bearing Inner/ Outer: HM32222 HM518445/10

8.Optional track length available

9. Optional ABS and automatic adjuster available

10. Optional Square axle shaft or Round axle shaft

11. Optional inboard drum axle or outboard drum axle

Characteristics:

1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic

performance,strong load ability and lower self weight.

2).High quality alloy solid inserted spindle, through wholly heat treatment, provide

superior fatigue capability.

3).High performance premium non-asbestos brake linings, extend service life.

4).Easy for ABS installation.

5).Camshaft, matching with special seals, can ensure no entry of the grease into the

brake drum, more safety.

6).New tight fit hub capO rings, high property for sealing.

7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance
