Home > Industrial Equipment & Components > Ventilation Equipment > Blowers > Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14"

Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14"

Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14" thumbnail-1
Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14" photo-1
US$ 10 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Other, Stainless Steel, Anti-rust galvanized steel housing
Mounting:
Other, Duct Fan, Duct fan
Contact Supplier Request Quote Chat Now
Linan Horti-King Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Other, Stainless Steel, Anti-rust galvanized steel housing
Mounting Other, Duct Fan, Duct fan
Place of Origin Zhejiang, China
Brand Name Hortiking or OEM
Model Number 4-12 inch inline fan
Power 62-400W
Voltage 230/50Hz,120V/60Hz
Air Volume 112-1000CFM
Speed 2400-3000 RPM
Certification CE, UL

Specifications

Good Ventilation duct fan
CE ,UL recognized component
Extra quiet operation
Factory price high quality with best service .


Product Description



Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14"



Specifications



1.Size available: 4"5"6" 6.5" 8"10"12"
2.Anti-rust galvanized steel housing

3.CE,UL recognized components

4.Extra quiet operation.





Features:



These Inline Fans are high quality and industrial strength. They are built to last. The Powder coated steel frame encloses a high performance radial impeller inline fan that has both attitude and performance. It has the 282 CFM, and has a sound dampening cover that keeps the noise as low as possible from an inline fan. Mounting Bracket included.

  • External rotor motor is powder coated in black W/ Leather Sleeve
  • Quality & Sturdy Construction
  • Easy installation
  • Thermal protector inside of motor
  • Plastic impeller
  • Sheet steel tube, powder coated in black
  • IP54 terminal box
  • Ambient temperature -30~70"C
  • Insulation Class F

Technical Specification:

  • Input voltage: AC 230V/50Hz,120V/60Hz
  • Power: 62-400W
  • 112-1000 CFM
  • Speed: 2400-3000 RPM
  • Current: 0.25-3.00A
  • Compatible to 4"-12" Inch Carbon Filter



Detailed Specification:





ITEM DESCRIPTION VOLTAGE AIRFLOW SPEED POWER CURRENT PCS/CTN CARTON SIZE(CM) CARTON SIZE GW/NW MOQ
CFM M3H RPM L W H KGS/PCS
21104001 Inline fan 100,high output 230V/50Hz 112 190 2604 62 0.25 1 31 26 23.5 31x26x24cm 4/3.2 50
21104002 Inline fan 4",high output 120V/60Hz 126 215 2910 113 0.95 1 31 26 23.5 12.4"x10.4"x9.6" 4/3.2 50
21105001 Inline fan 125,high output 230V/50Hz 165 280 2613 67 0.27 1 31 26 23.5 31x26x24cm 4/3.2 50
21106001 Inline fan 150,high output 230V/50Hz 282 480 2563 64 0.26 1 36 36 25 36x36x25cm 4.9/4.1 50
21106002 Inline fan 6",high output 120V/60Hz 306 520 2911 115 0.97   36 36 25 14.4"x14.4"x10" 4.9/4.1 50
21107001 Inline fan 160,high output 230V/50Hz 301 512 2688 131 0.57 1 36 36 25 36x36x25cm 5.1/4.3 50
21108001 Inline fan 200,high output 230V/50Hz 562 955 2532 160 0.65 1 40.5 36.5 29.5 40x37x30cm 6.4/5.6 50
21108002 Inline fan 8",high output 120V/60Hz 555 945 2530 198 1.72 1 40.5 36.5 29.5 16"x14.8"x12" 6.4/5.6 50
21110001 Inline fan 250,high output 230V/50Hz 636 1080 2478 169 0.69 1 40.5 36.5 29.5 40x37x30cm 6.8/6 50
21110002 Inline fan 10",high output 120V/60Hz 644 1095 2480 236 2.07 1 40.5 36.5 29.5 16"x14.8"x12" 6.8/6 50
21112001 Inline fan 315,high output 230V/50Hz 946 1680 2509 254 1.05   48.5 43.5 28.6 48x44x29cm 8.4/7.3 50
21112002 Inline fan 12",high output 120V/60Hz 950 1615 2540 334 3 1 48.5 43.5 28.6 19.2"x17.6"x11.6" 8.4/7.3 50

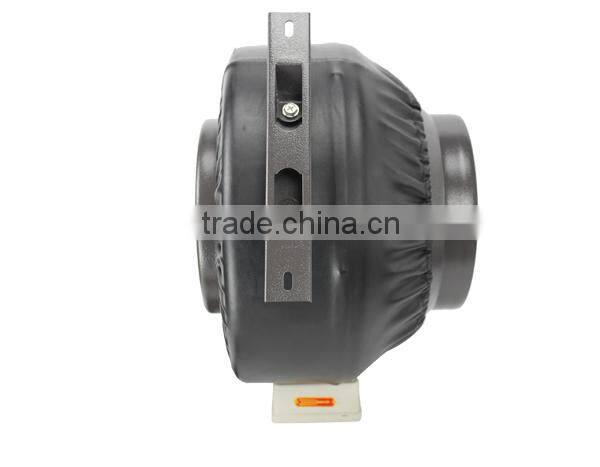

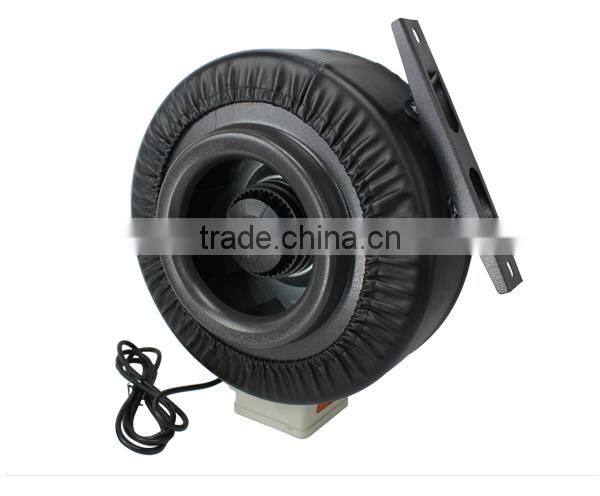

Inline Fan Pictures







Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14"Green House Inline Duct Fan 4"/5"/6"/8"/10"/12"/14"
