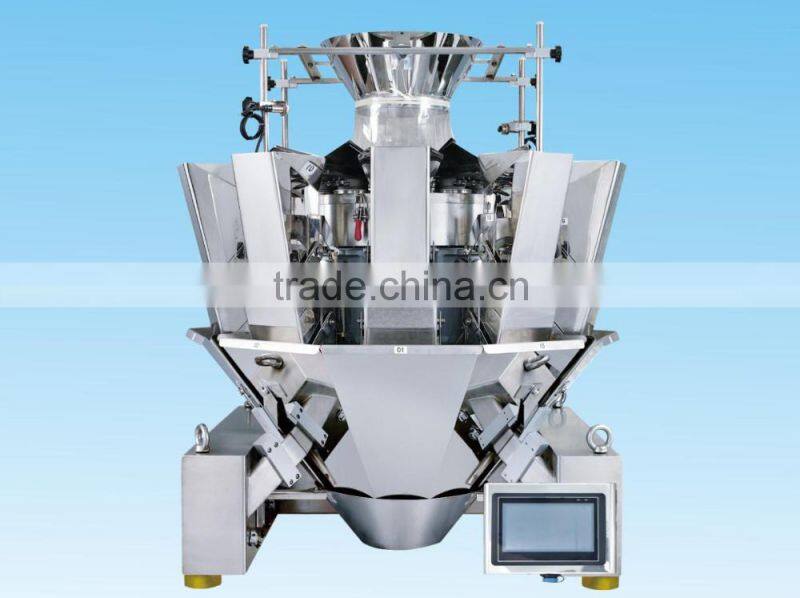

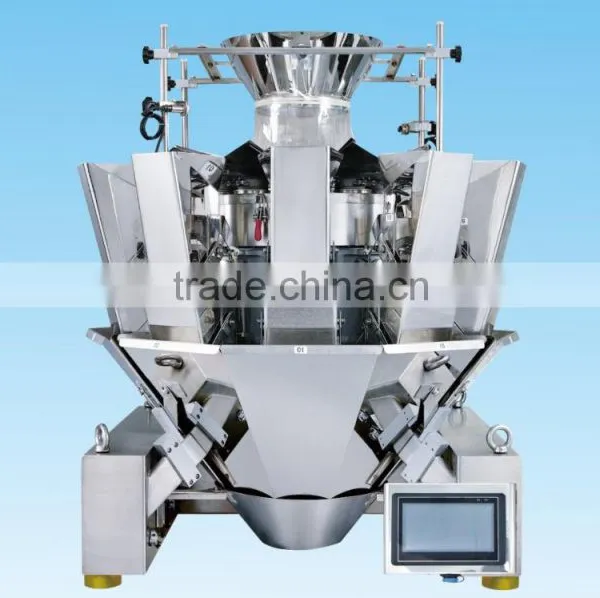

Product Name: 10head weigher
Model: JW-A10
1. Application of 10head weigher
* It is suitable for weighing with candy,seeds,jelly, pet foods, puffy foods, pistachio, peanuts, nuts,
raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs etc.
2. Features of 10head weigher
* Program recovery function can reduce operation failures.
* No products auto pause function can improve weighing stabiltiy and accuracy.
* High-precision digital loadcell.
* User-friendly help menu in touchscreen contributes to easy operation.
* 100 programs capactiy can meet various weighing requirement.
* 15 languages available for global markets.
* Linear amplitude can be adjusted independently.

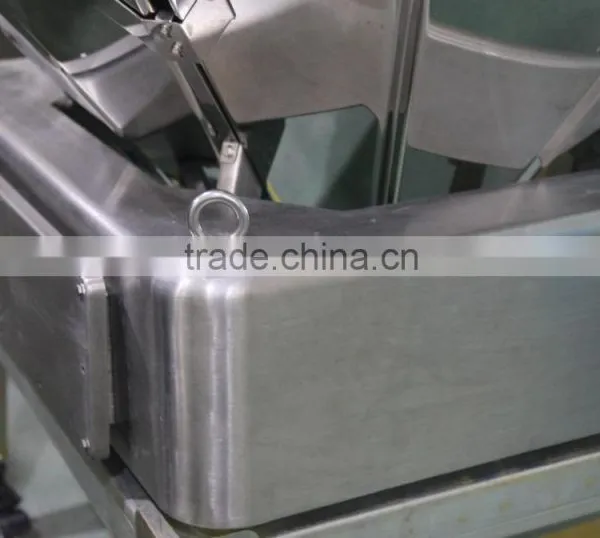

3. Mechanical Character of 10head weigher
* Uniform design standards contribute to better interchagebility for spare parts.
* Weigh hoppers selected in combination can be set to stagger dump to avoid blocking problem.
* Combined with high accuracy and high speed, a best combination is selected by CPU instantly
from many good combinations.
4. Technical Specification of 10head weigher
| Model | JW-A10 |
| Identify Code | A10-1-1 |
| Single Weighing Range | 10-1000g |
| Accuracy | 0.2-1.5g |
| Max Speed | 65 PPM |
| Hopper Volume | 1.6/2.5 L |
| Control Panel | 7.0 '' Touch Screen |
| Options | Dimple Plate /Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1000W/50/60HZ/10A |

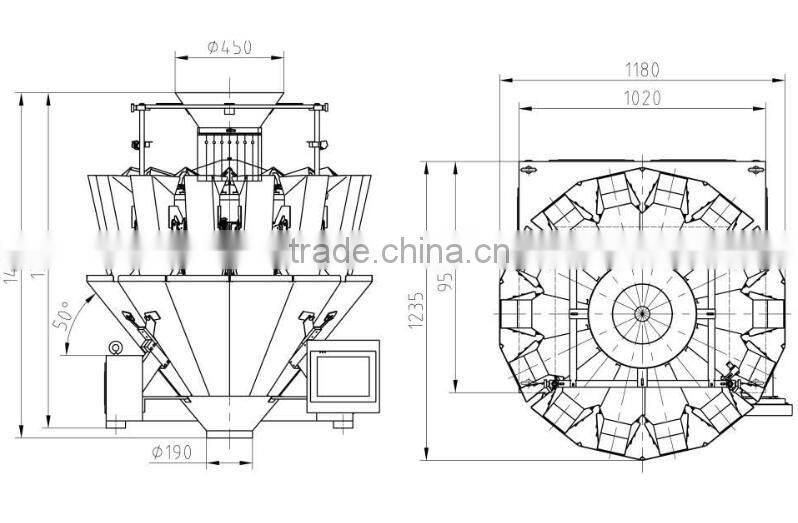

| Packing Dimension(mm) | 1680(L)X1100(W)X1200(H) |
| Gross Weight | 380kg |
