Product Name:

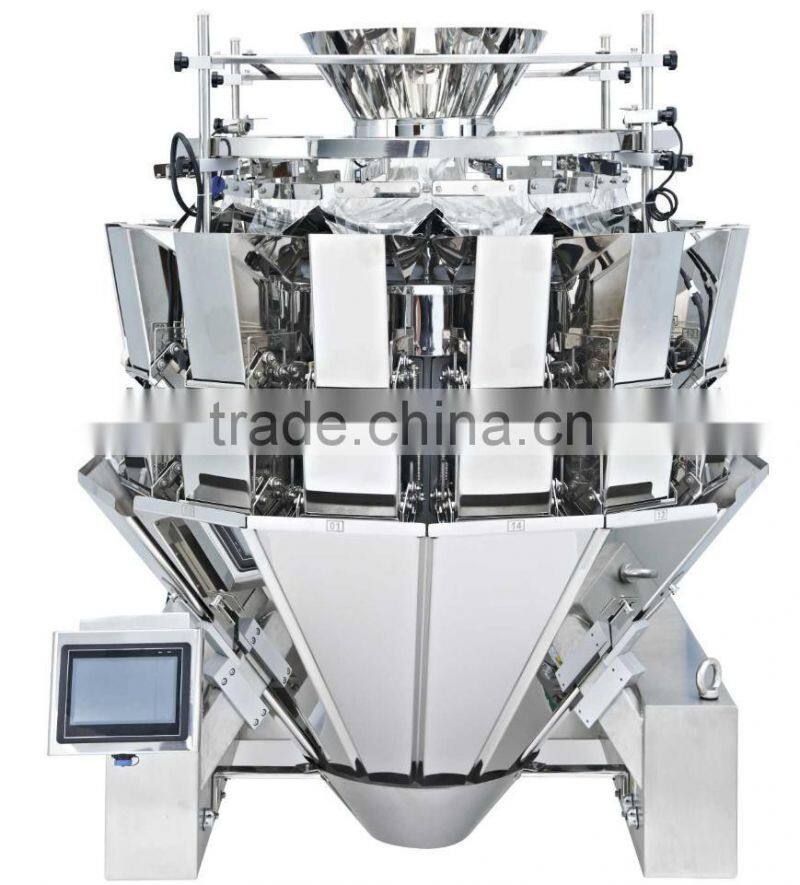

PLC 14 head multihead weigher for Food products
Model: JW-A14
1. Application
* It is suitable for counting project, such as pepper, fruit, jelly, small packs, tomato,potato,onion,large-shell
nuts, etc.
2. Features
* Program recovery function can reduce operation failures.
* No products auto pause function can improve weighing stability and accuracy.
* User-friendly help menu in touch screen contributes to easy operation.
* 100 programs capacity can meet various weighing requirement.
* Linear amplitude can be adjusted independently.
* Weigh hoppers selected in combination can be set to stagger dump to avoid blocking problem.
3. Mechanical Character
* Equipped with both weighing and counting softwares.
* Vibration time is automatically adjusted to make sure a good feeding process and improve the
combination possibility.
* Wide V shape feeder pan with an independent photo sensor on its top, feeding process can be effective
ensured.
* Extra PLC helps the motherboard CPU to judge and control the feeding process.
4. Technical Specification
| Model | JW-A14 |
| Identify Code | A14-1-8 |
| Single Weighing Range | 20-1500g |
| Accuracy | X(0.5) |
| Max Speed | 80 P/M |
| Hopper Volume | 2.5 L |
| Control Panel | 7.0'' Touch Screen |
| Options | Dimple Plate /Timing Hopper/Printer/Reject Device |
| Driving System | Step Motor |
| Power Requirement | 220V/1500W/50/60HZ/12A |
| Packing Dimension(mm) | 1700(L)X1110(W)X1130(H) |
| Gross Weight | 490kg |

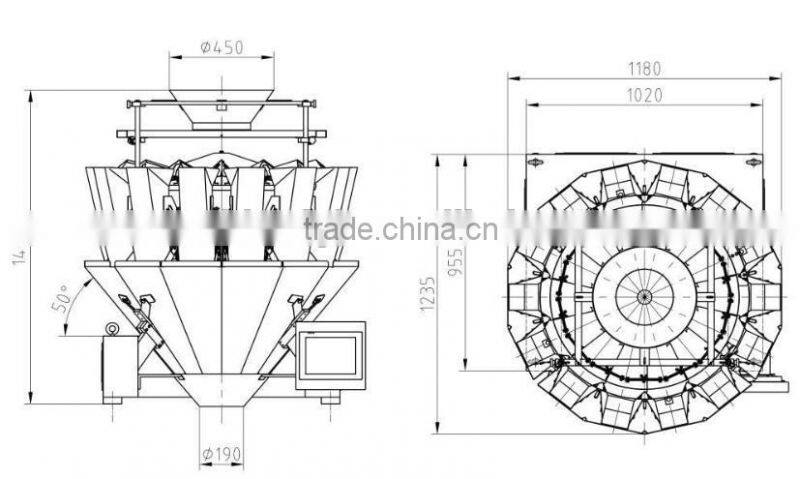

5.Deminsion
