Specifications
hss wood shaper blade1.Sliding table spindle shaper
2.Milling cutter is adjustable at0-45 degre
hss wood shaper blade
It is applided for re-processing camber side and the special shape side.It also can do beeline and bevel edge process,make different shapes of wood line with template.It is widely used in woodworking furniture and construction industry.

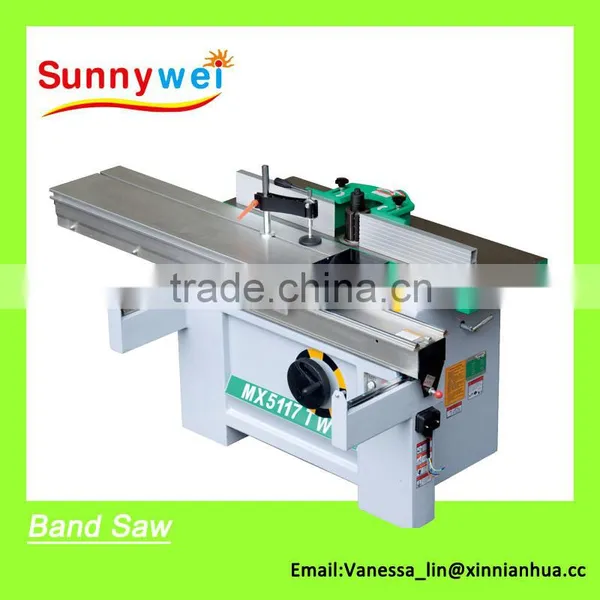

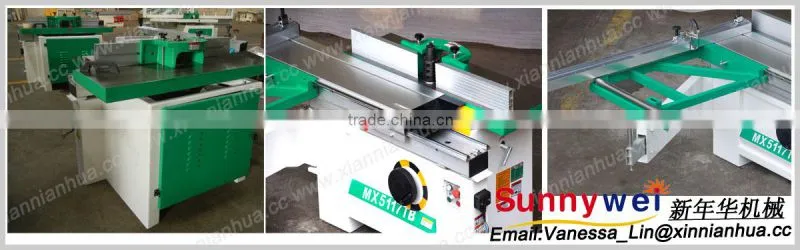

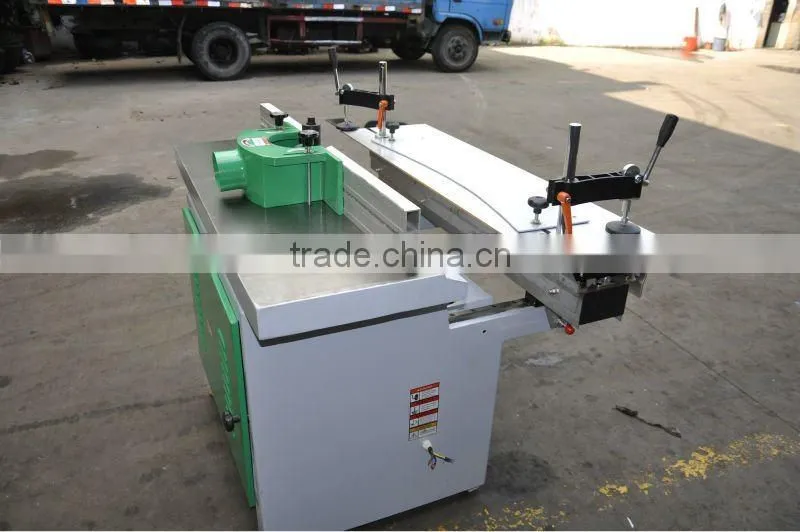

Sliding table wood spindle moulder with sliding table is mainly used in duplicating productions, in milling of plane, curve and different shapes of wood.
it can do beeline and bevel edge process,shaping different shape.
Main Specification And Technology Parameter
Model |
MxQ5117/TW |
MXQ5117/TW |
Sliding table max distance |
1200mm |
1200mm |
Max milling thickness |
120mm |
120mm |
Diameter of cutting spindle |
Φ35mm |
Φ35mm |
Rotary speed of cutter spindle |
9700/7500/5200 r/min |
9700/7500/5200 r/min |
Height of main spindle lift |
100mm |
100mm |
Adjustable angle of cutter |
0-45 degree |
0 |
Total motor power/Voltage frequecy |
4kw(5.5HP) / 380V 50 |
4kw(5.5HP) / 380V 50 |
Weight of machine |
420kg |
400kg |
Overall dimensions (L×W×H) |
1270×1570×1050mm |
1270x1570x1050mm |
