Detailed Product Description
die cutting machine
The Four-column Hydraulic Press Die Leather Cutting Machine is used to cut leather, rubber, plastic, paperboard, cloth, sponge, nylon, imitation leather, PVC board and other materials with shaped die cuter in processing leather, producing cloth, case and bag, package, toys, stationery, automobile and other industries.
1. Use the structure of double cylinder and precise four-column automatic balancing links to ensure same cutting depth in every cutting region.
2. When the pressure plate presses downward to touch the die cutter, the machine automatically slowly cuts, which can make that there is no error between the top and bottom layers of cutting materials.
3. Have setting structure especially, which makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
4. Set automatic lubricating system to ensure the precision of machine and raise durability of machine.
Model |
HYP3-350 |
HYP3-400 |
HYP3-500 |
HYP3-800 |
HYP3-1000 |
Max cutting pressure |
350KN |
400KN |
500KN |
800KN |
1000KN |
Cutting area |
700*1600mm |
700*1600mm |
800*1600mm |
800*1600mm |
800*1600mm |
Stroke |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
50-200mm |
Power |
2.2KW |
3KW |
4KW |
4KW |
5.5KW |
Feed Systems Available: Roll Feed Systems
Clamp Feed Systems
Factory direct sale; Guarantee Period one year
Note:About series of the machine,we have the kinds.We can manufacture the series of the machine depending in your demand.

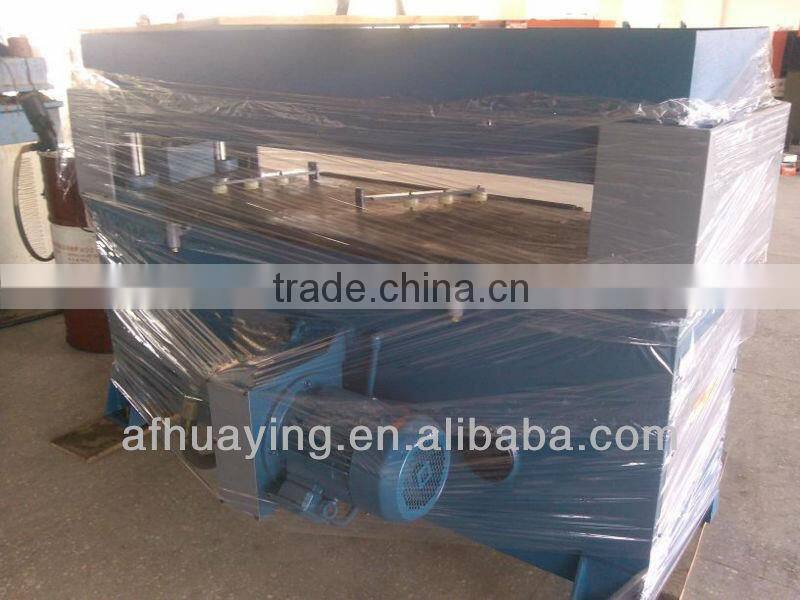

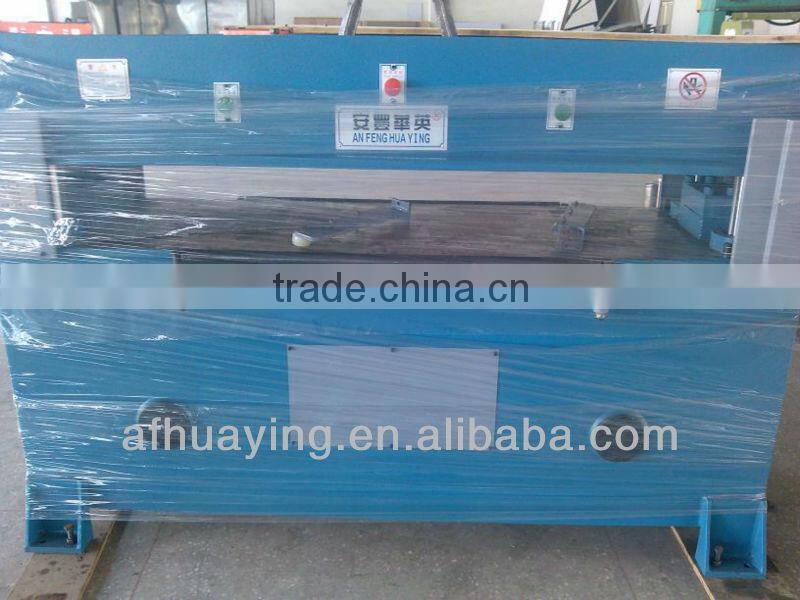

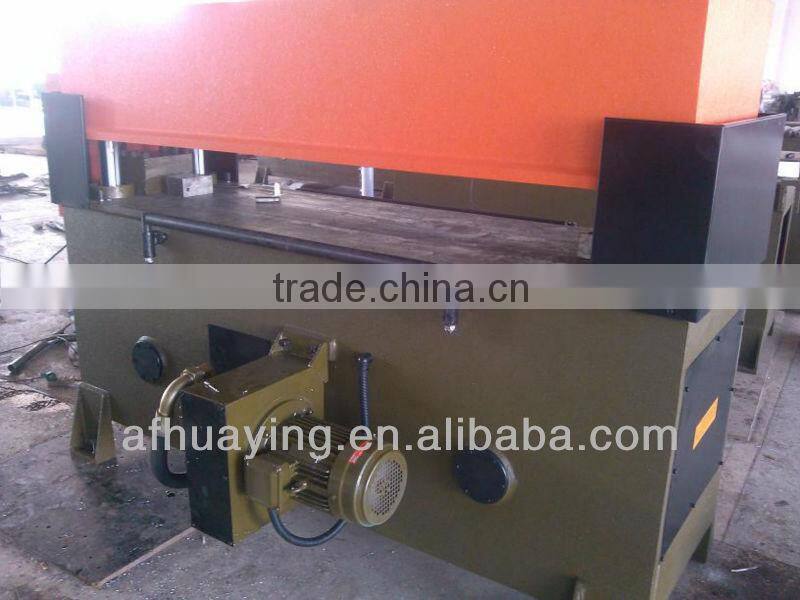

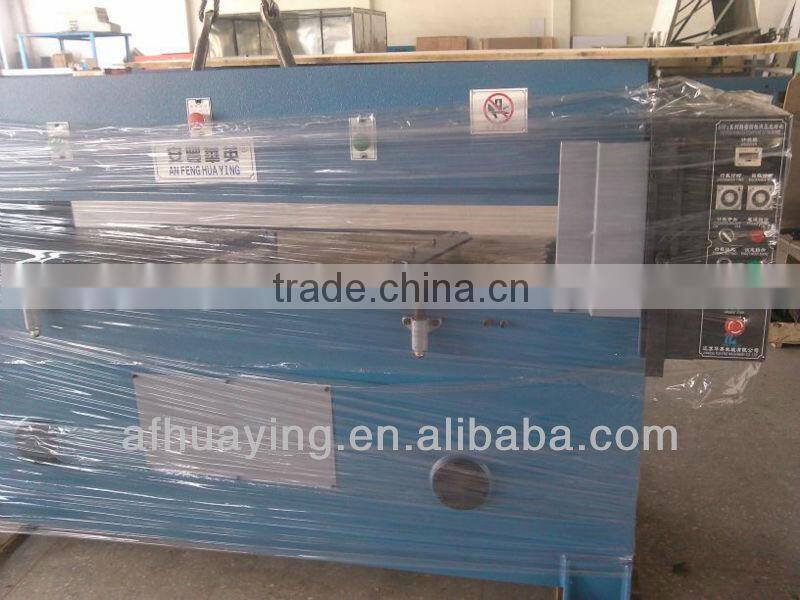

Production Picture
Process Picture
|
*production: (1)we produce hydraulic cuting machine with your own designed logo. (2)supply ability:100 sets/month (3)fast delivery |
|
*price (1)wholesale price (2)good quality with best price (3)terms of payment: T/T |
*certificate:ISO9001-2008 Approved |
*Market:East Asia,Eastsouth Asia.South America, Mexico,Middle east, East Europe and so on. |
Artwork skills:The second generation hydraulic principle. |
Price term: FOB Shanghai Payment term: T/T
Supply Ability: 100 sets/month MOQ: 1 set
Sample delivery time: 2-3 days
Delivery Time: within 20 days after samples confirmed
Artwork: plane cutting machine, travel head cutting machine, four-column cutting machine and so on .
FAQ:
1.Q:Are you a factory or trading company?
A: Yes,we are a factory. you are most welcomed to visit us .
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Xinghua City, Jiangsu Province, China, about 4 hours from Shanghai.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:Have you ever attended any exhibitions ?
A: Sure.
Sample: 2012 Guangzhou exhubition
4.Q:What is the material of your products?
A: The material is mainly steel. We can also choose material as customers’ requirements.
5.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
6.Q:Can I get some samples?
A: We are honored to offer you samples in advance.
7.Q:How does your factory do regarding quality control?
A: Quality is priority. Huaying people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO authentication.
Welcome to contact us for more details ,most competitive price for you!
